Зонды, используемые в ИОРАН

1.

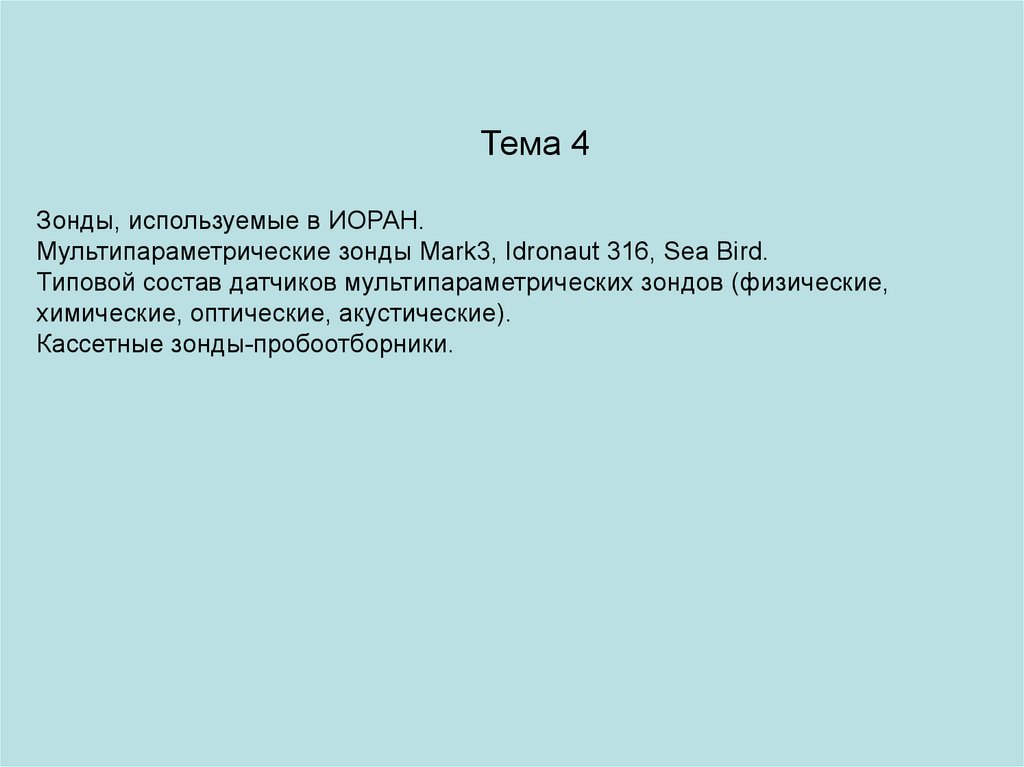

Тема 4
Зонды, используемые в ИОРАН.
Мультипараметрические зонды Mark3, Idronaut 316, Sea Bird.
Типовой состав датчиков мультипараметрических зондов (физические,
химические, оптические, акустические).
Кассетные зонды-пробоотборники.

2.

3.

4.

5.

Зонды Idronaut 316 и 320,
Rosette General oceanics

6.

Микро – CTD FSI

7.

Датчики

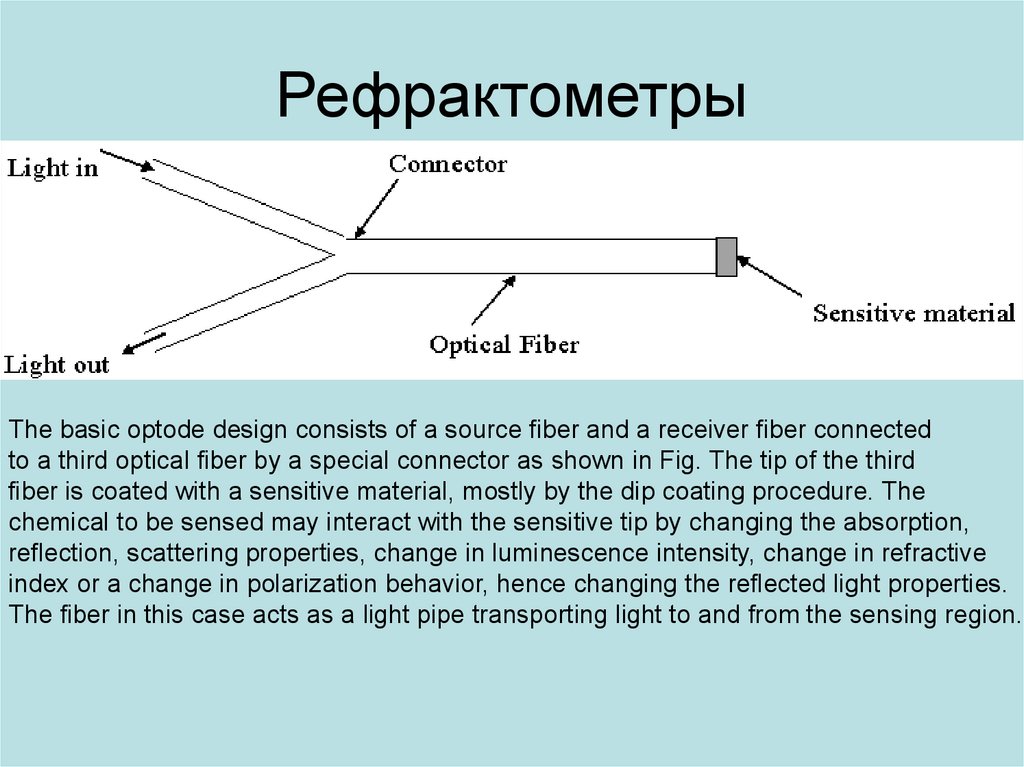

8. Рефрактометры

The basic optode design consists of a source fiber and a receiver fiber connected
to a third optical fiber by a special connector as shown in Fig. The tip of the third
fiber is coated with a sensitive material, mostly by the dip coating procedure. The
chemical to be sensed may interact with the sensitive tip by changing the absorption,
reflection, scattering properties, change in luminescence intensity, change in refractive
index or a change in polarization behavior, hence changing the reflected light properties.
The fiber in this case acts as a light pipe transporting light to and from the sensing region.

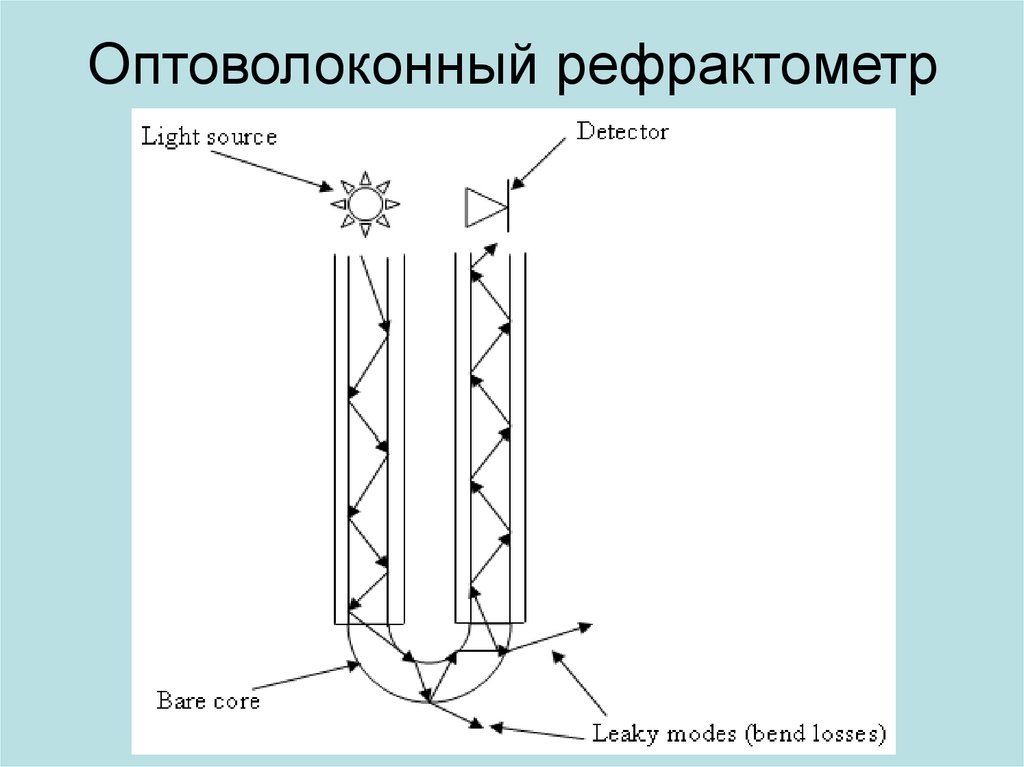

9. Оптоволоконный рефрактометр
