AC Power Systems
PHASYS
DII 01031
ELITE

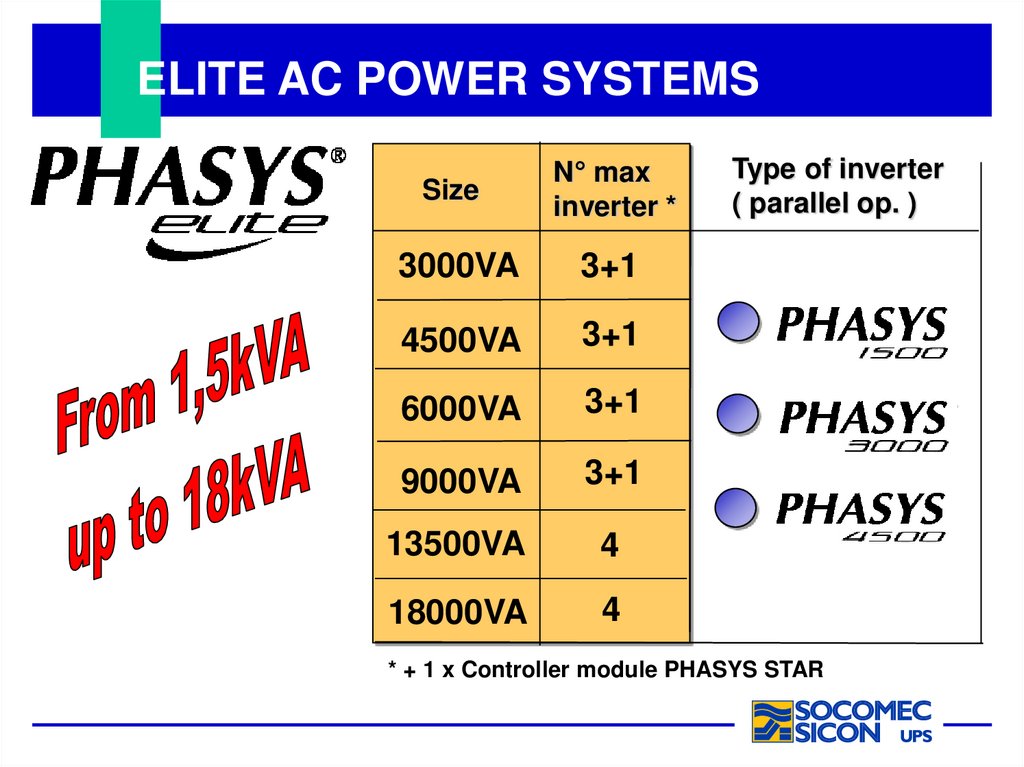

2. ELITE AC POWER SYSTEMS

DII 02031
ELITE AC POWER SYSTEMS
Size
N° max
inverter *
3000VA
3+1
4500VA
3+1
6000VA
3+1
9000VA
3+1
13500VA
4
18000VA
4
Type of inverter
( parallel op. )
* + 1 x Controller module PHASYS STAR

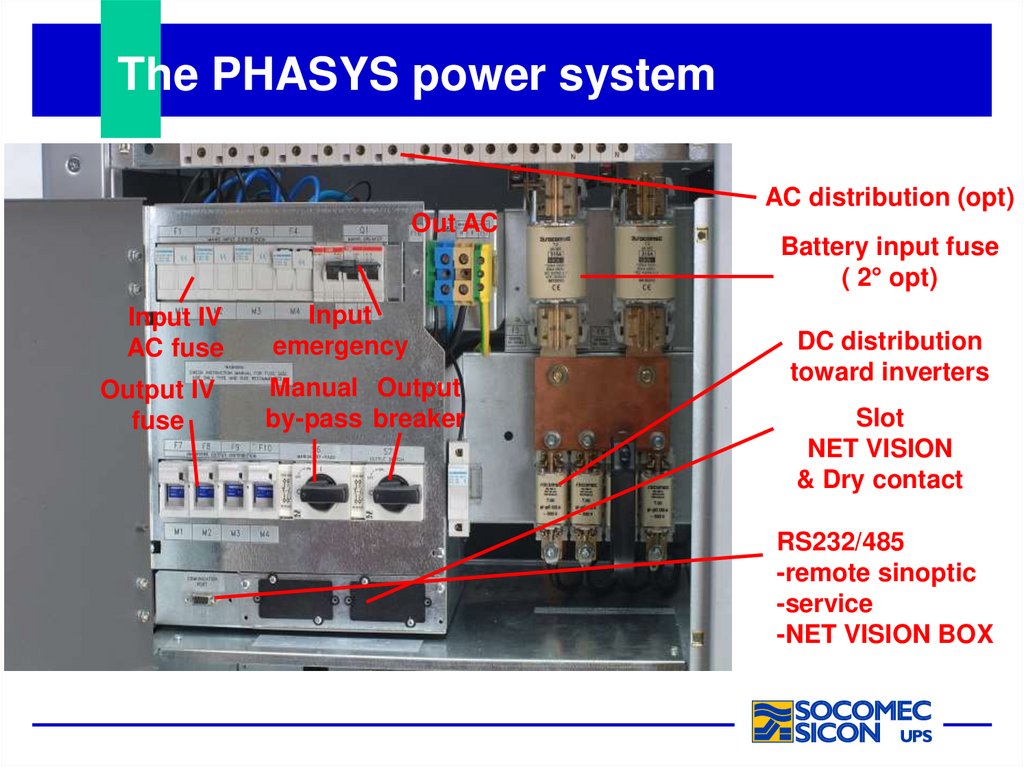

3. The PHASYS power system

AC distribution (opt)
Out AC
Input IV
AC fuse
Output IV
fuse
Input
emergency
Manual Output
by-pass breaker
Battery input fuse
( 2° opt)
DC distribution
toward inverters
Slot
NET VISION
& Dry contact
DII 03031
RS232/485
-remote sinoptic
-service
-NET VISION BOX

4. Modularity - Expandibility

At the beginning is not request to
complete the power system
with all the inverters.
The power can be added in
incremental steps later,
depending on the load
requirements.
POWER
Expantion during operation:
additional inverter modules can
be added to the power station
during operation.
TIME
DII 04031
Replacement of a inverter module following a failure does
not require power station shutdown.
Easy activation/disactivation of the inverter modules thanks to the
“hot plug-in” connection.

5. Signaling dry contact board

All the P.S. are equipped as
standard with Dry-contact
interface for remote
signaling:
General alarm
Load on mains
Mains failure (absent or out of tolerance)
Vdc input low
N.C
Double contacts 5A 250V
DII 05031
N.O
Commun

6. Nessun titolo diapositiva

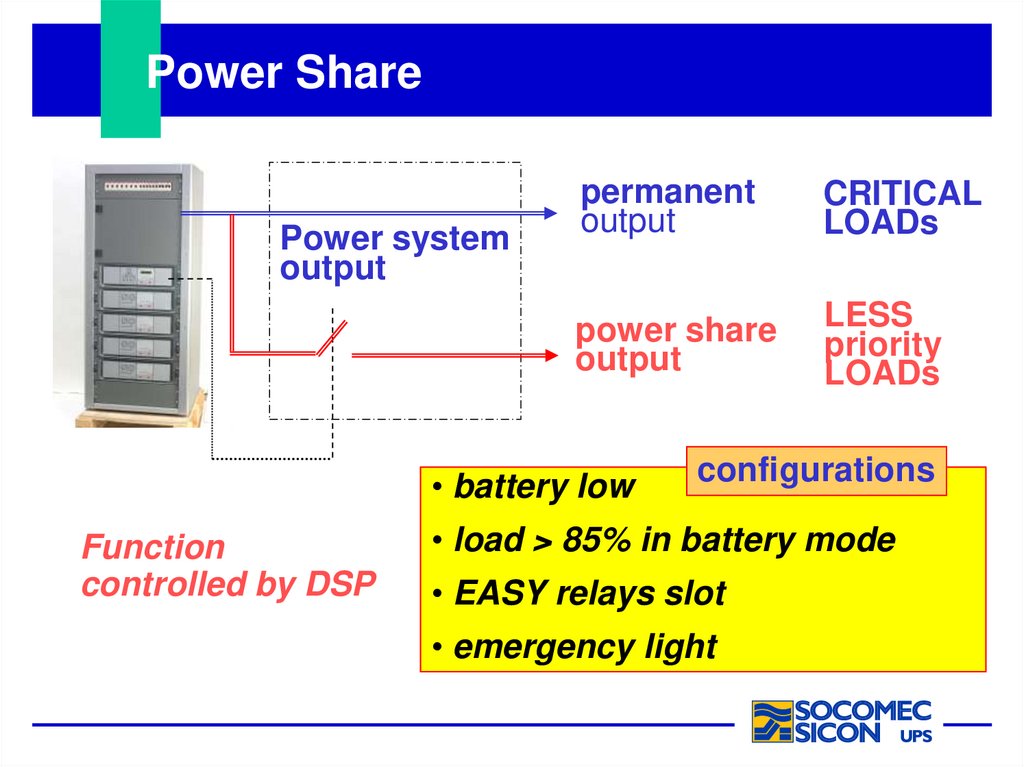

Power Share
Power system
output
permanent
output
CRITICAL
LOADs
power share
output
LESS
priority
LOADs
• battery low
Function
controlled by DSP
configurations
• load > 85% in battery mode
• EASY relays slot
DII 06031
• emergency light

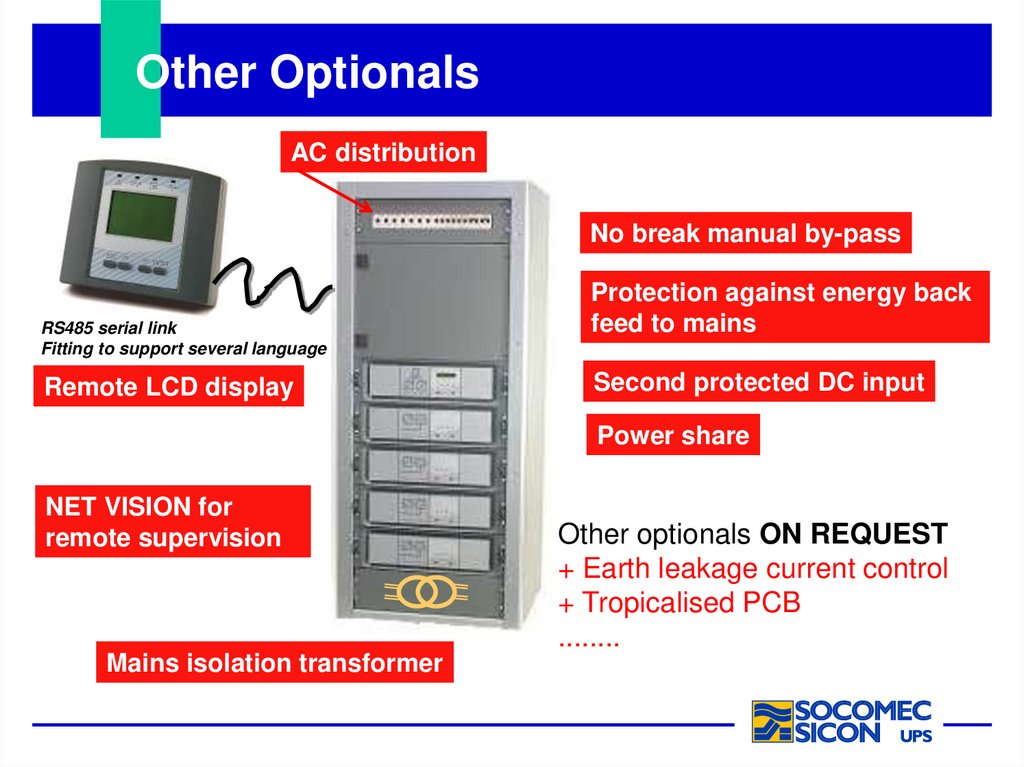

7. Nessun titolo diapositiva

Other Optionals
AC distribution
No break manual by-pass
RS485 serial link
Fitting to support several language
Remote LCD display
Protection against energy back
feed to mains
Second protected DC input
Power share
DII 07031
NET VISION for
remote supervision
Mains isolation transformer
Other optionals ON REQUEST
+ Earth leakage current control
+ Tropicalised PCB
........
