C95 BSD introduction

1.

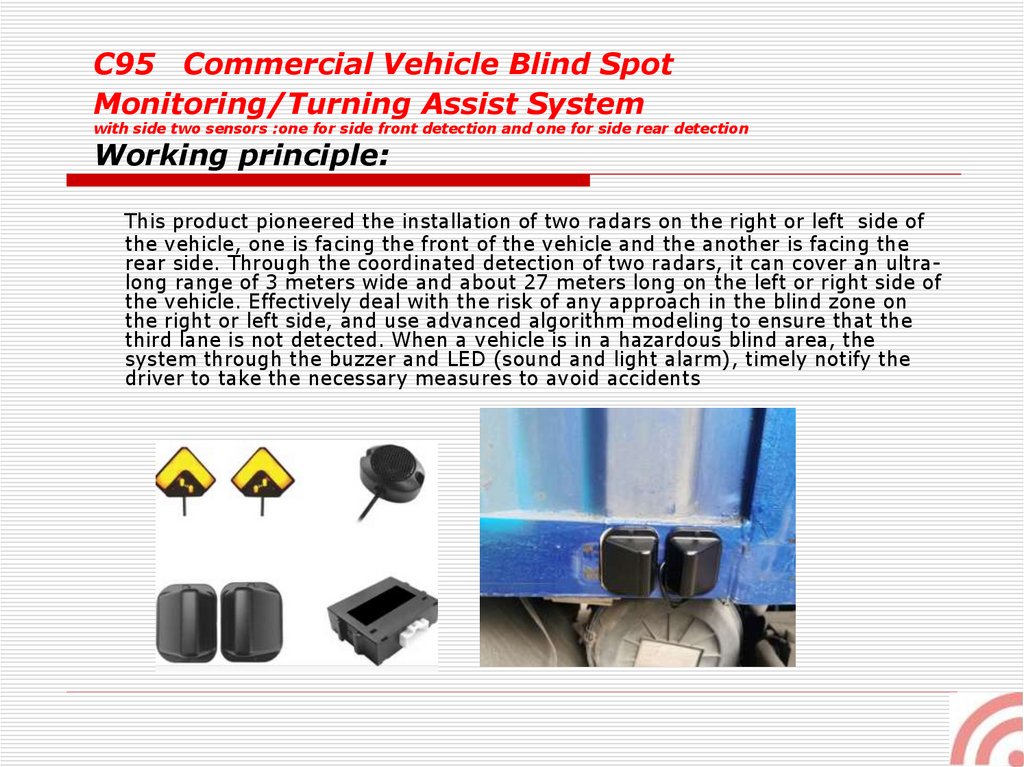

C95 Commercial Vehicle Blind Spot
Monitoring/Turning Assist System
with side two sensors :one for side front detection and one for side rear detection
Working principle:
This product pioneered the installation of two radars on the right or left side of
the vehicle, one is facing the front of the vehicle and the another is facing the
rear side. Through the coordinated detection of two radars, it can cover an ultralong range of 3 meters wide and about 27 meters long on the left or right side of
the vehicle. Effectively deal with the risk of any approach in the blind zone on
the right or left side, and use advanced algorithm modeling to ensure that the
third lane is not detected. When a vehicle is in a hazardous blind area, the
system through the buzzer and LED (sound and light alarm), timely notify the
driver to take the necessary measures to avoid accidents

2.

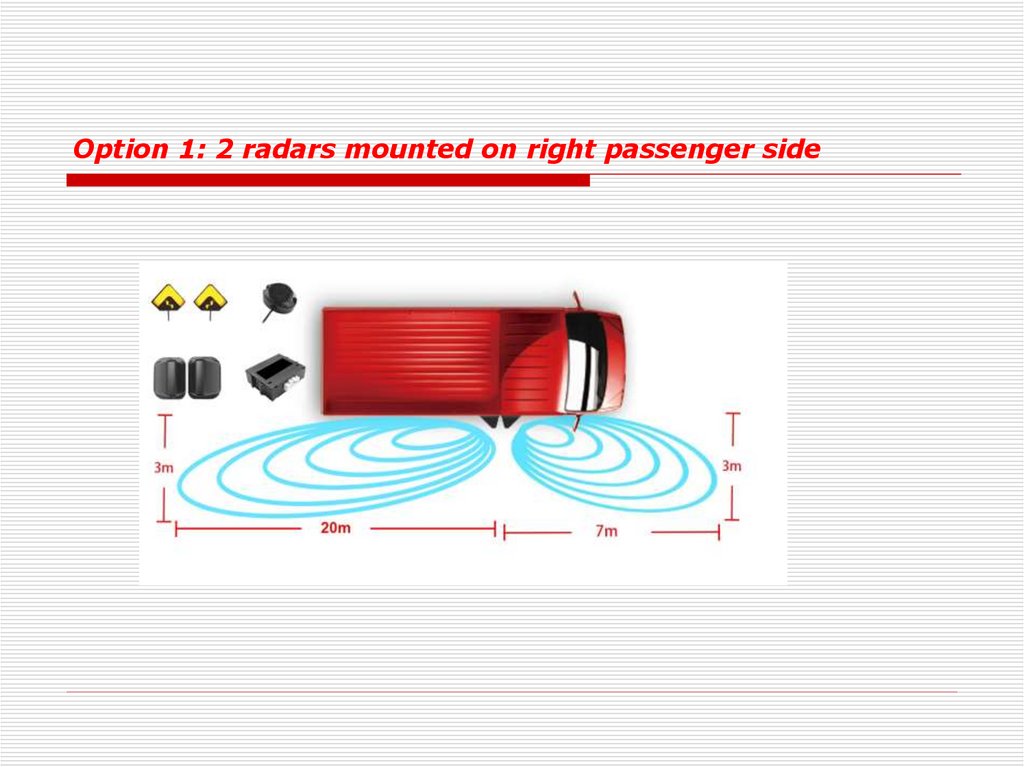

Option 1: 2 radars mounted on right passenger side

3.

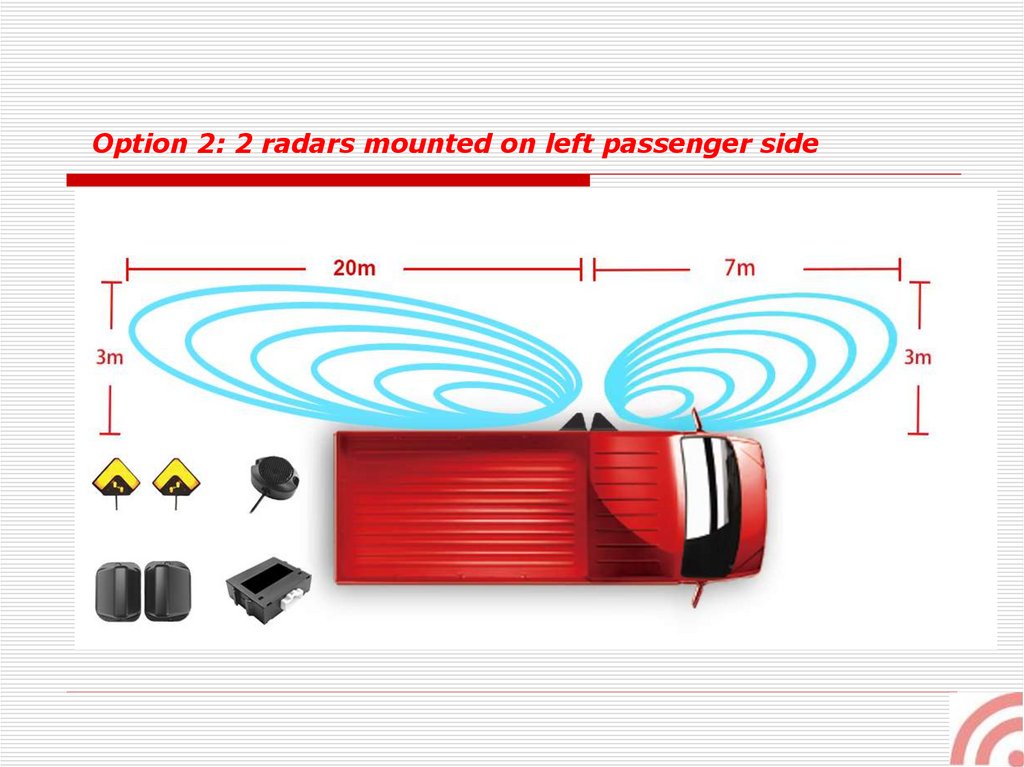

Option 2: 2 radars mounted on left passenger side

4.

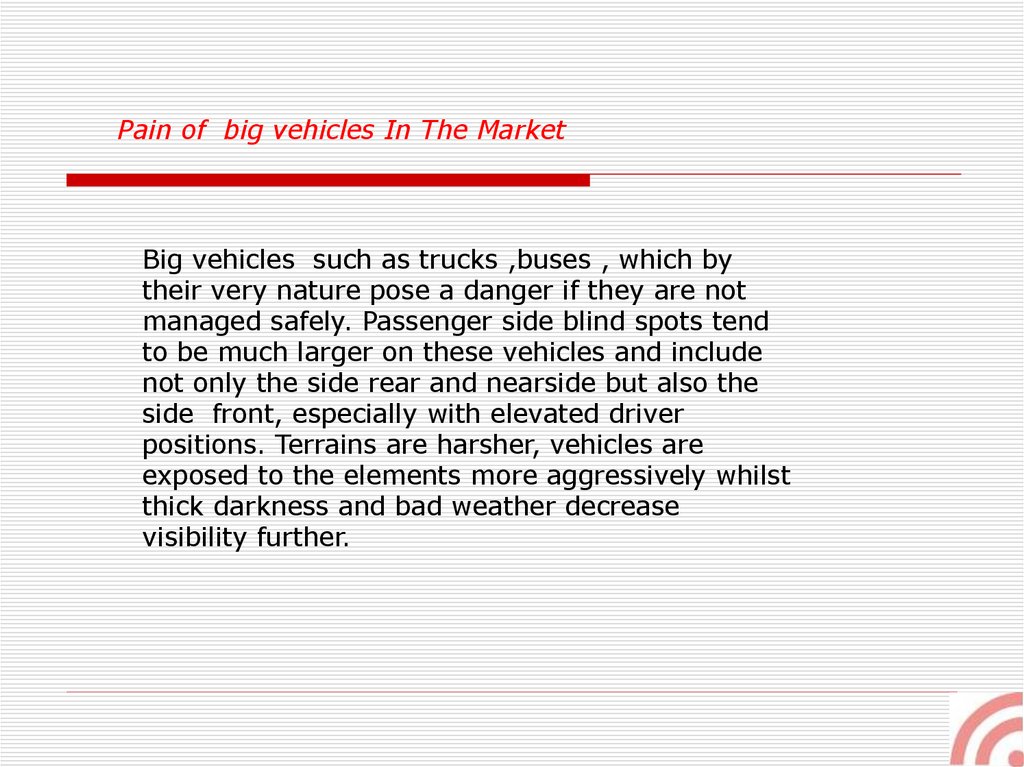

Pain of big vehicles In The Market
Big vehicles such as trucks ,buses , which by
their very nature pose a danger if they are not
managed safely. Passenger side blind spots tend
to be much larger on these vehicles and include
not only the side rear and nearside but also the
side front, especially with elevated driver
positions. Terrains are harsher, vehicles are
exposed to the elements more aggressively whilst
thick darkness and bad weather decrease
visibility further.

5.

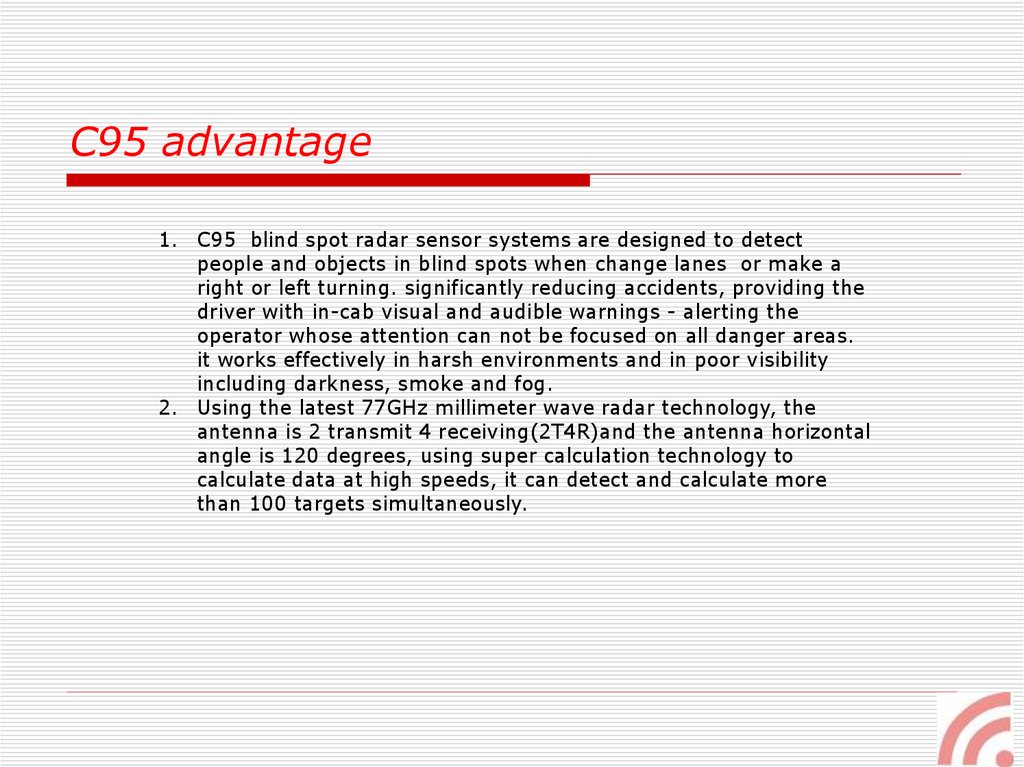

C95 advantage
1. C95 blind spot radar sensor systems are designed to detect
people and objects in blind spots when change lanes or make a
right or left turning. significantly reducing accidents, providing the
driver with in-cab visual and audible warnings - alerting the
operator whose attention can not be focused on all danger areas.
it works effectively in harsh environments and in poor visibility
including darkness, smoke and fog.
2. Using the latest 77GHz millimeter wave radar technology, the
antenna is 2 transmit 4 receiving(2T4R)and the antenna horizontal
angle is 120 degrees, using super calculation technology to
calculate data at high speeds, it can detect and calculate more
than 100 targets simultaneously.

6.

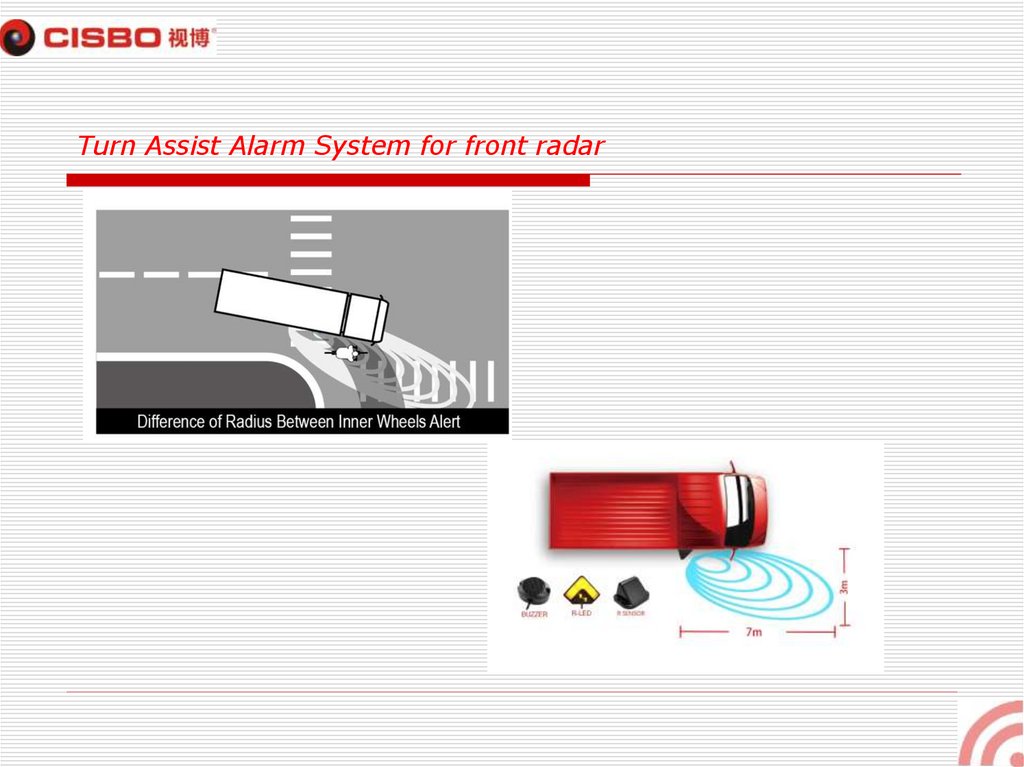

Turn Assist Alarm System for front radar

7.

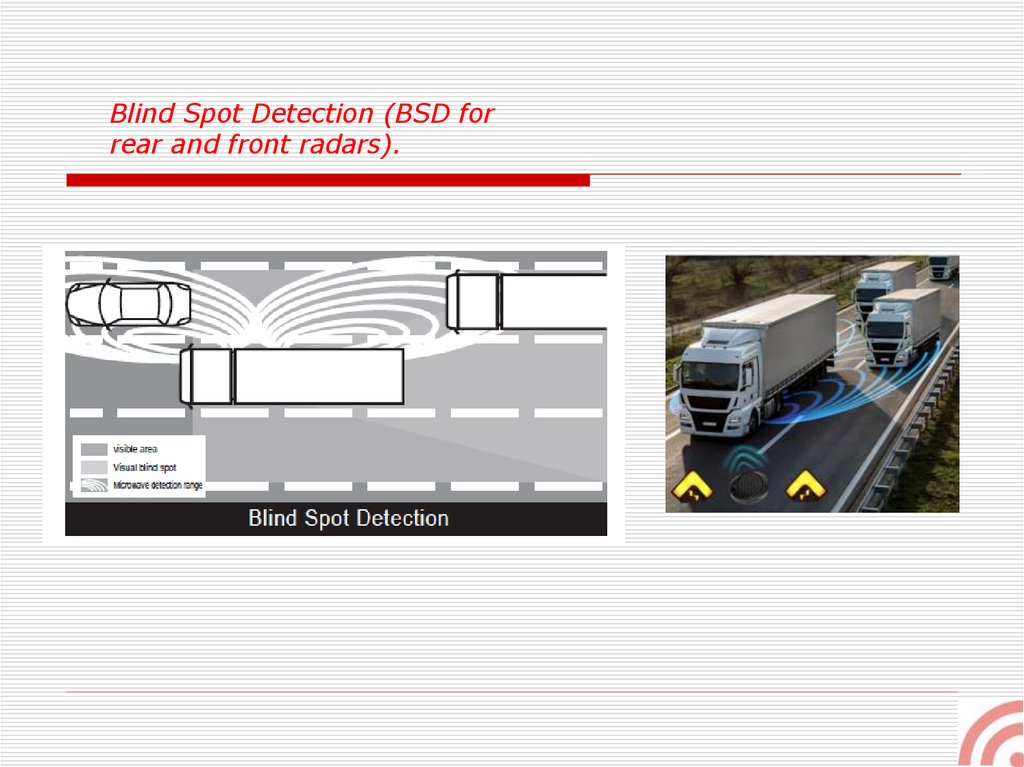

Blind Spot Detection (BSD for
rear and front radars).

8.

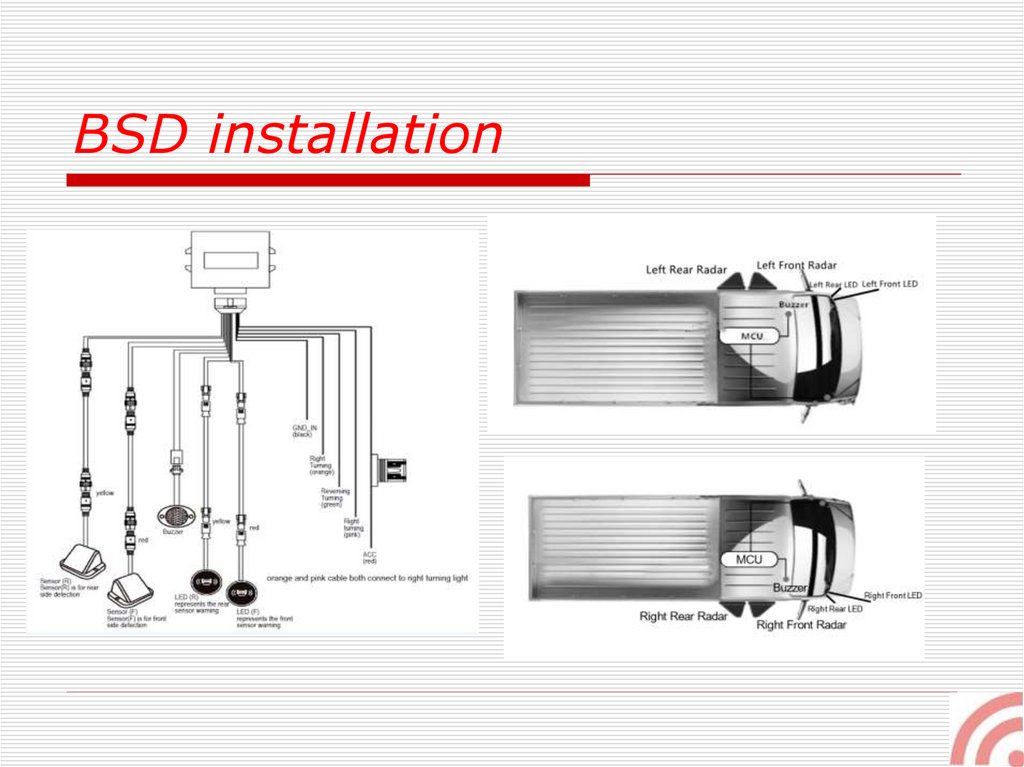

BSD installation

9.

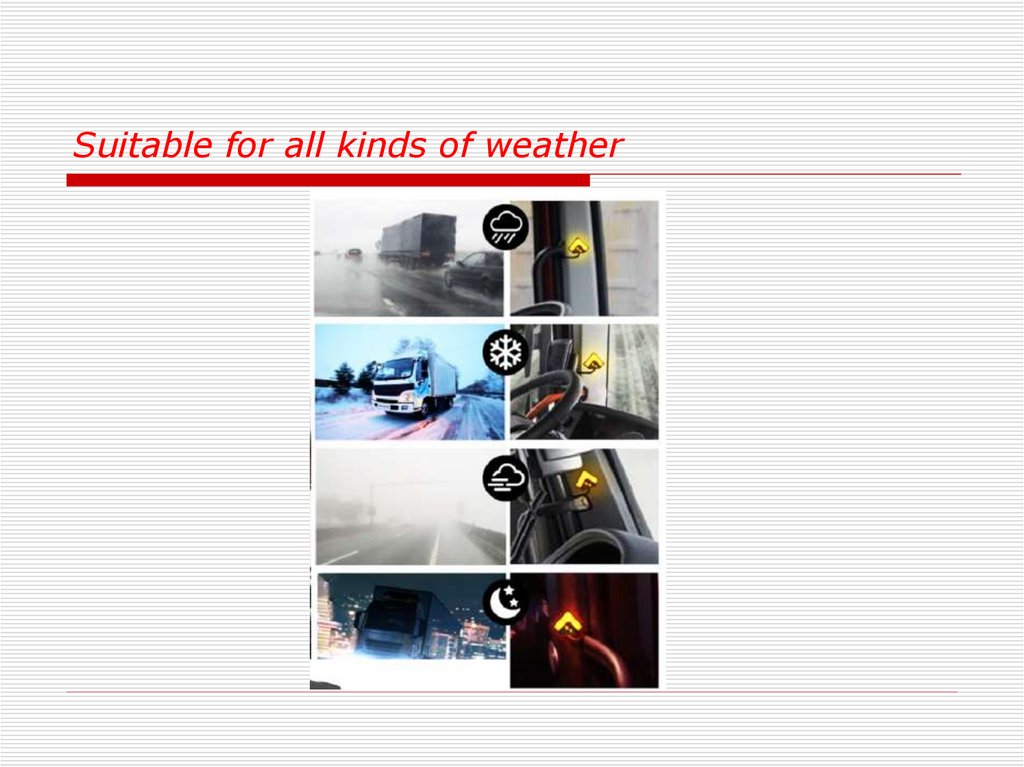

Suitable for all kinds of weather

10.

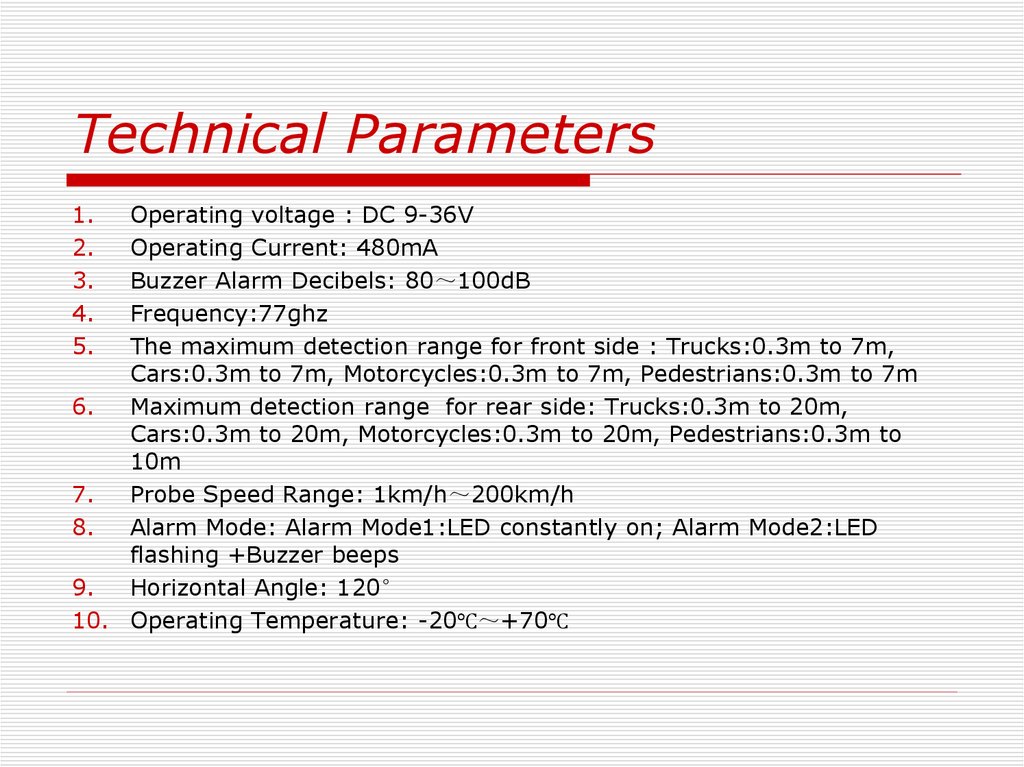

Technical Parameters
1.
2.
3.
4.
5.
Operating voltage : DC 9-36V
Operating Current: 480mA
Buzzer Alarm Decibels: 80 100dB
Frequency:77ghz
The maximum detection range for front side : Trucks:0.3m to 7m,
Cars:0.3m to 7m, Motorcycles:0.3m to 7m, Pedestrians:0.3m to 7m
6.
Maximum detection range for rear side: Trucks:0.3m to 20m,
Cars:0.3m to 20m, Motorcycles:0.3m to 20m, Pedestrians:0.3m to
10m
7.
Probe Speed Range: 1km/h 200km/h
8.
Alarm Mode: Alarm Mode1:LED constantly on; Alarm Mode2:LED
flashing +Buzzer beeps
9.
Horizontal Angle: 120°
10. Operating Temperature: -20℃ +70℃

11.
