WEJOIN NON-SPRING BARRIER GATE WJNSBG101 （打印）

1.

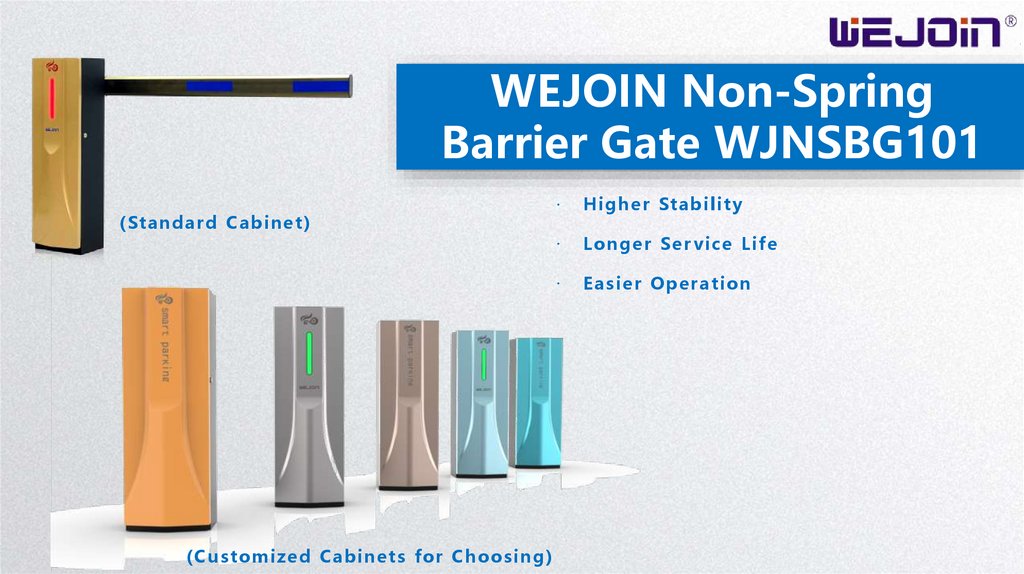

WEJOIN Non-Spring
Barrier Gate WJNSBG101
(Standard C ab inet)
Higher Stab ilit y
Longer Ser vice Life
Easier Op eration
(C ustom ize d C ab inets for C hoosing)

2.

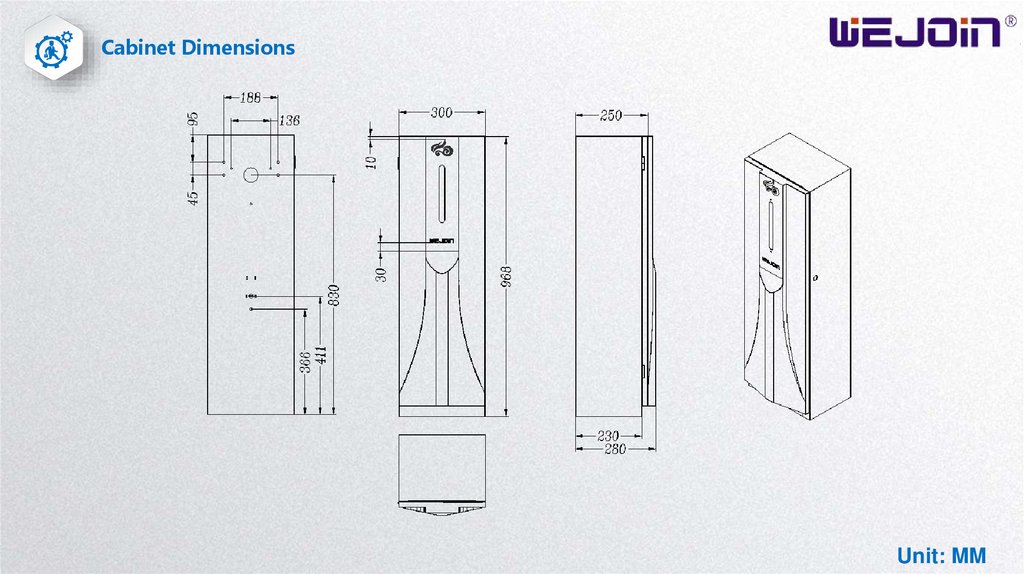

Cabinet Dimensions
Unit: MM

3.

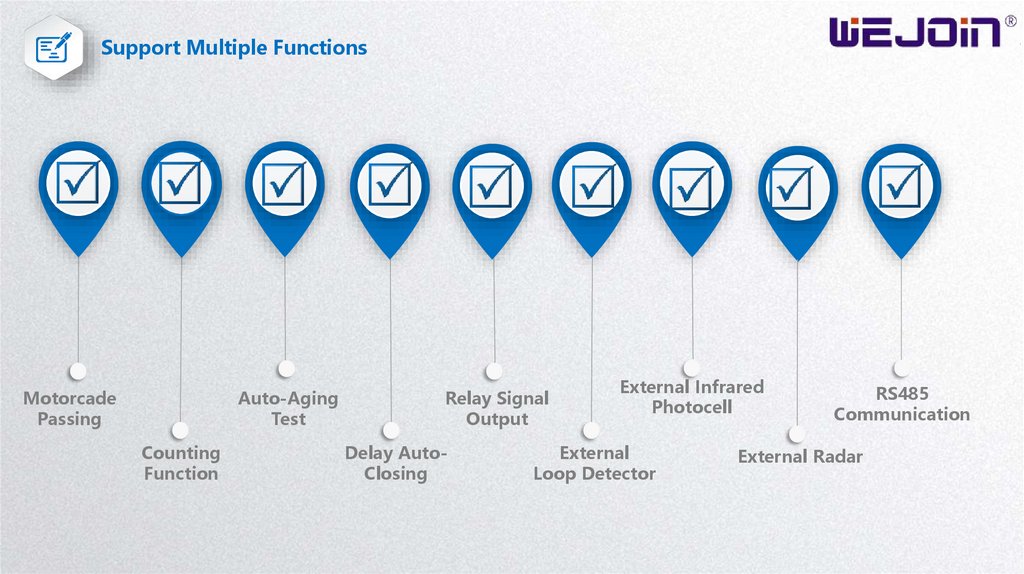

Support Multiple Functions
Motorcade
Passing
Auto-Aging
Test
Counting
Function
Relay Signal
Output
Delay AutoClosing
External Infrared
Photocell
External
Loop Detector
RS485
Communication
External Radar

4.

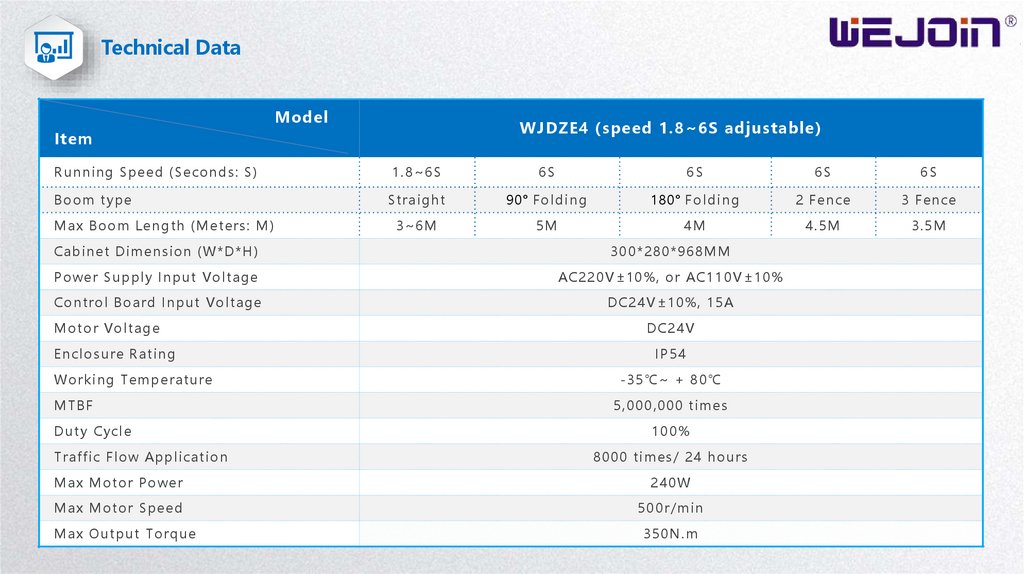

Technical Data
Model
WJDZE4 (speed 1.8~6S adjustable)
Item
Ru n n i ng S pe e d (S e co n ds: S )
1 .8 ~6 S
6S
6S
6S
6S
B o o m ty p e
S trai gh t
90° Fo l di n g
180° Fo l di n g
2 Fe n ce
3 Fe n ce
M ax B o o m Le n gth (M e te rs: M )
3 ~6 M
5M
4M
4 .5 M
3 .5 M
C ab i n e t Di m e n sio n (W * D* H)
3 0 0 * 2 80 * 968 MM
Po we r S u p pl y In pu t V o l tage
AC 2 2 0 V ±10 %, o r AC 1 1 0 V ±10 %
C o n tro l B o ard In pu t V o l tage
DC 2 4 V ±1 0 %, 1 5 A
M o to r V o l tage
DC 2 4 V
En cl o su re Rati n g
IP5 4
W o rki n g Te m pe ratu re
-3 5 ℃~ + 8 0 ℃
M TB F
5 ,0 0 0 ,0 00 ti m e s
Du ty C y cl e
Traf f i c Fl o w Appl i cati on
100%
8 0 0 0 ti m e s/ 2 4 h o u rs
M ax M o to r Po we r
240W
M ax M o to r S pe e d
5 0 0 r/ m i n
M ax Ou tp u t To rqu e
3 5 0 N.m

5.

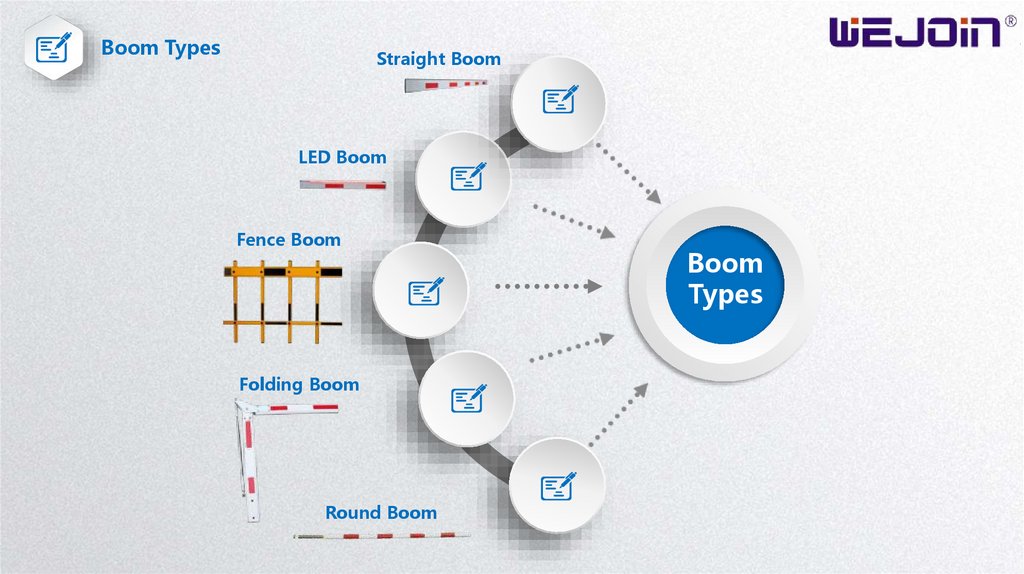

Boom Types
Straight Boom
LED Boom
Fence Boom
Folding Boom
Round Boom
Boom
Types

6.

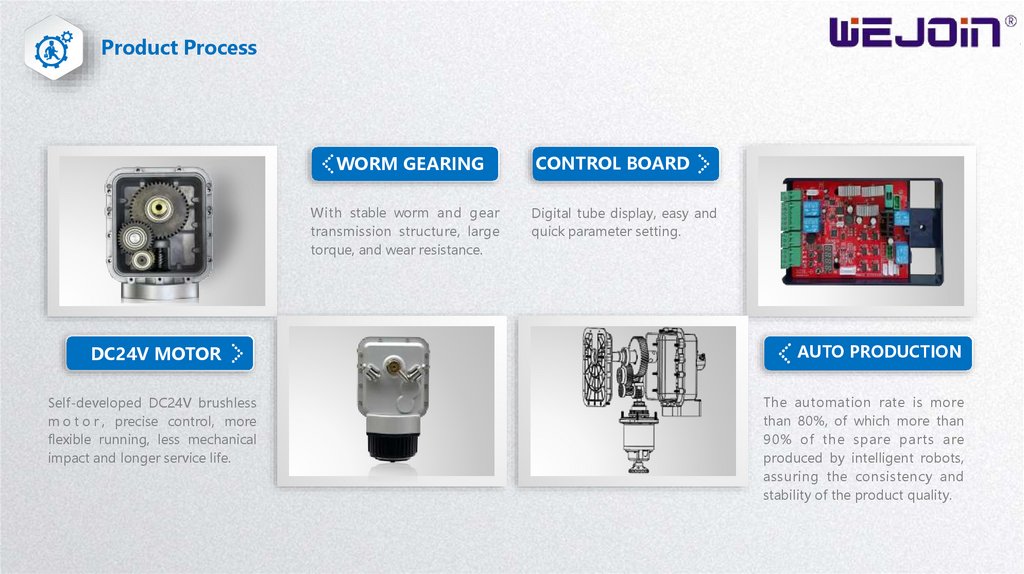

Product Process
WORM GEARING
With stable worm and gear
transmission structure, large
torque, and wear resistance.
DC24V MOTOR
Self-developed DC24V brushless
m o t o r , precise control, more
flexible running, less mechanical
impact and longer service life.
CONTROL BOARD
Digital tube display, easy and
quick parameter setting.
AUTO PRODUCTION
The automation rate is more
than 80%, of which more than
90% of the spare parts are
produced by intelligent robots,
assuring the consistency and
stability of the product quality.
