Media Qualification

1.

Media
Qualification
– Basic Know How Digital Printing –
Version 1.2 EN
01/02/2022
Version: 1.2 Classification: Internal Owner: Group L&D - PPA

2.

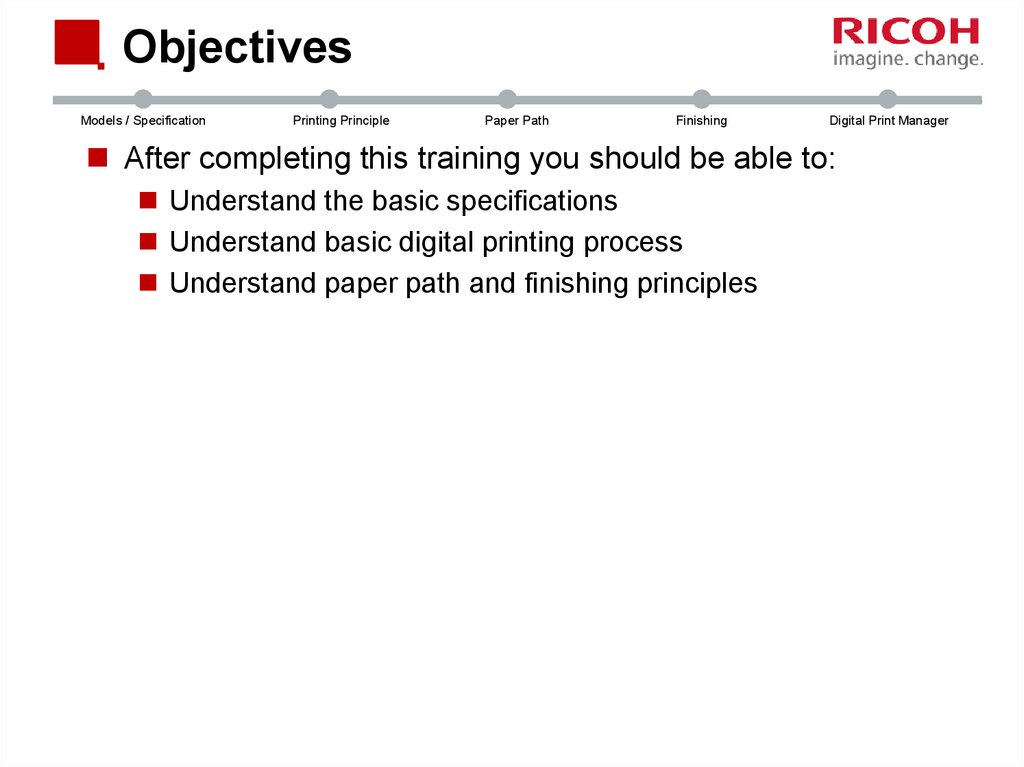

Objectives
Models / Specification
Printing Principle
Paper Path
Finishing
Digital Print Manager
After completing this training you should be able to:
Understand the basic specifications
Understand basic digital printing process
Understand paper path and finishing principles

3.

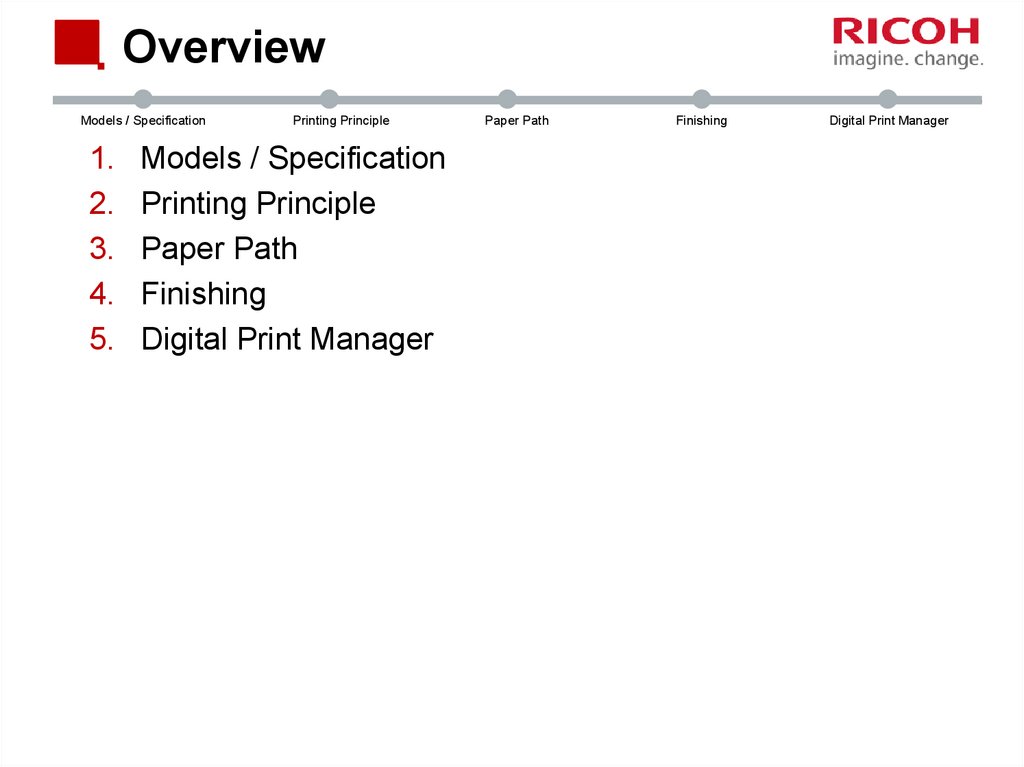

Overview
Models / Specification
1.
2.
3.
4.
5.
Printing Principle
Models / Specification
Printing Principle
Paper Path
Finishing
Digital Print Manager
Paper Path
Finishing
Digital Print Manager

4.

1. Models / Specification

5.

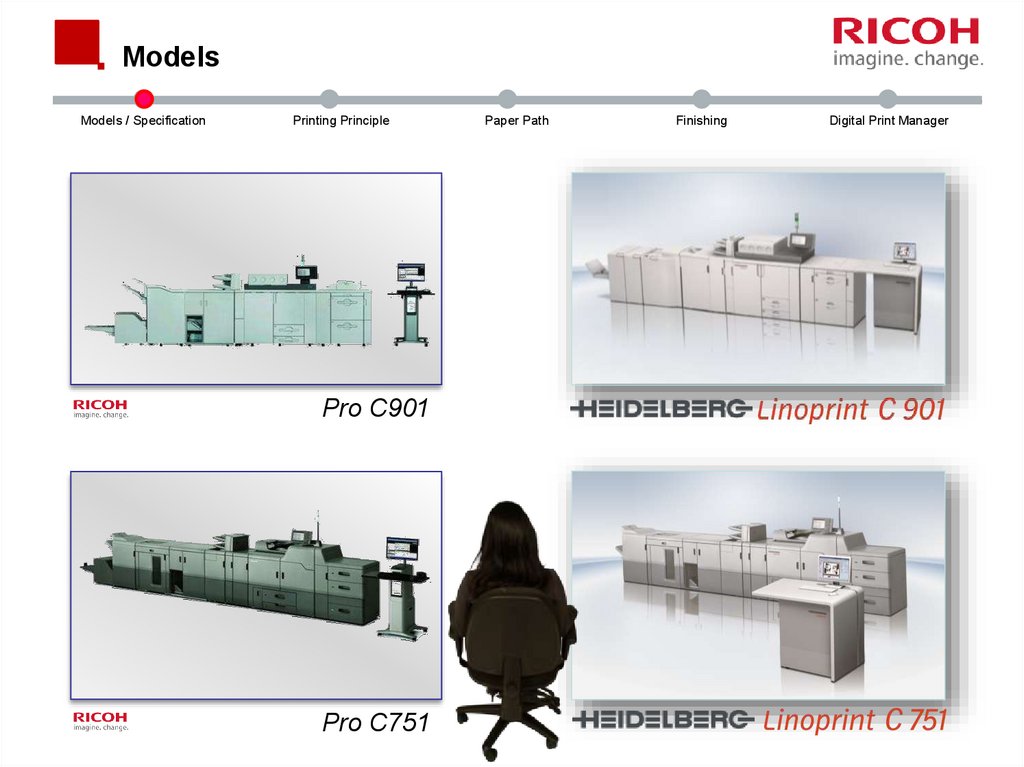

Models
Models / Specification
Printing Principle
Pro C901
Pro C751
Paper Path
Finishing
Digital Print Manager

6.

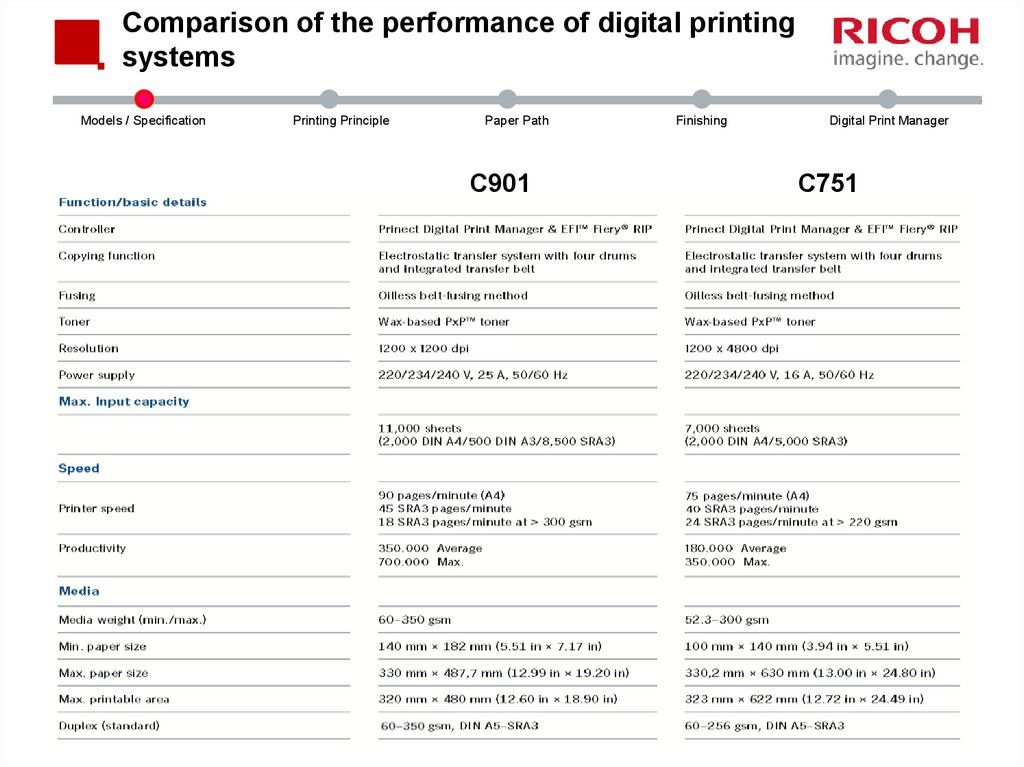

Comparison of the performance of digital printing
systems
Models / Specification
Printing Principle
Paper Path
C901
Finishing
Digital Print Manager
C751

7.

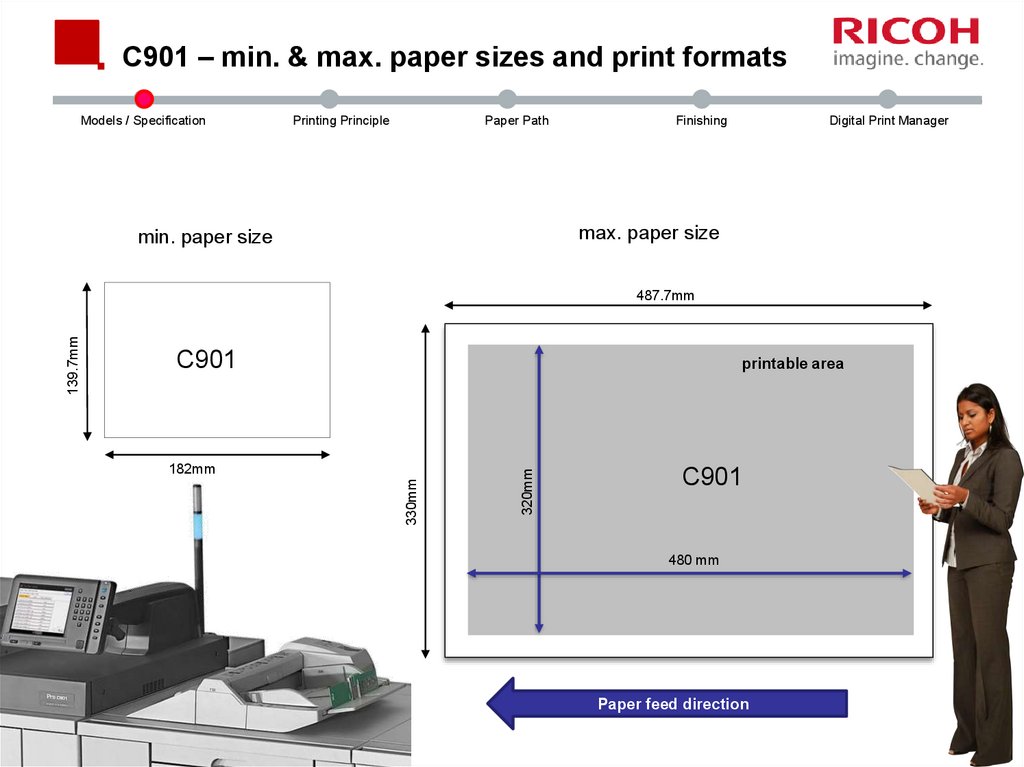

C901 – min. & max. paper sizes and print formats
Models / Specification
Printing Principle
Paper Path
Finishing
Digital Print Manager
max. paper size
min. paper size
C901
182mm
320mm
printable area
330mm
139.7mm
487.7mm
C901
480 mm
Paper feed direction

8.

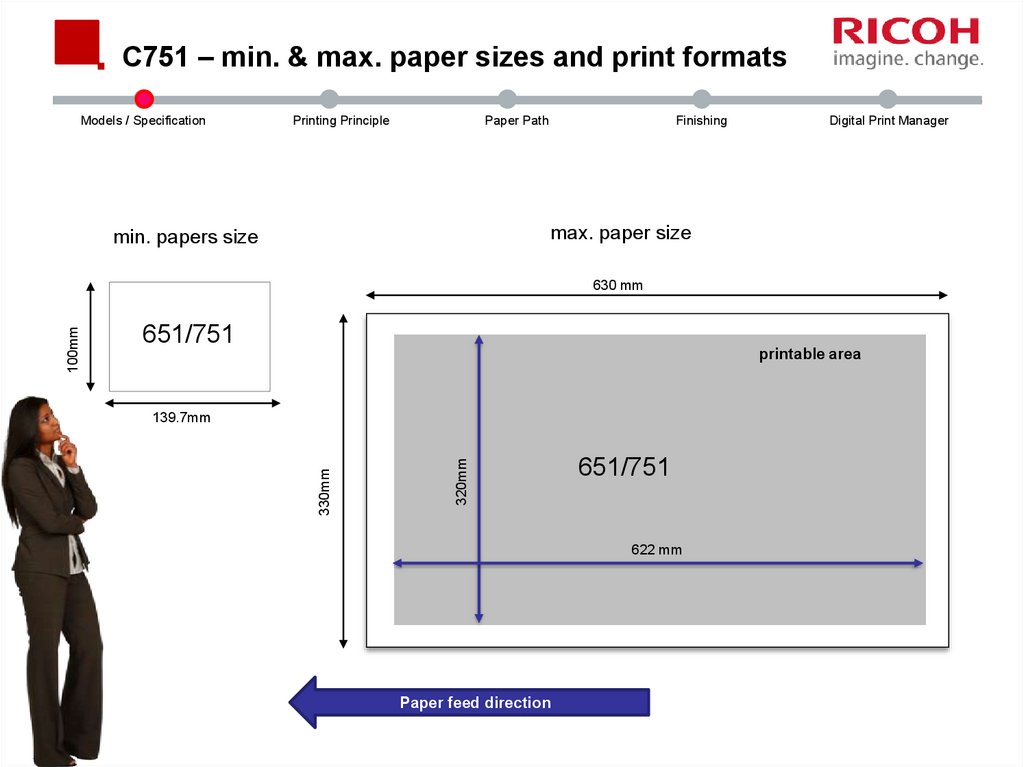

C751 – min. & max. paper sizes and print formats
Models / Specification
Printing Principle
Paper Path
Finishing
Digital Print Manager
max. paper size
min. papers size
651/751
printable area
320mm
139.7mm
330mm
100mm
630 mm
651/751
622 mm
Paper feed direction

9.

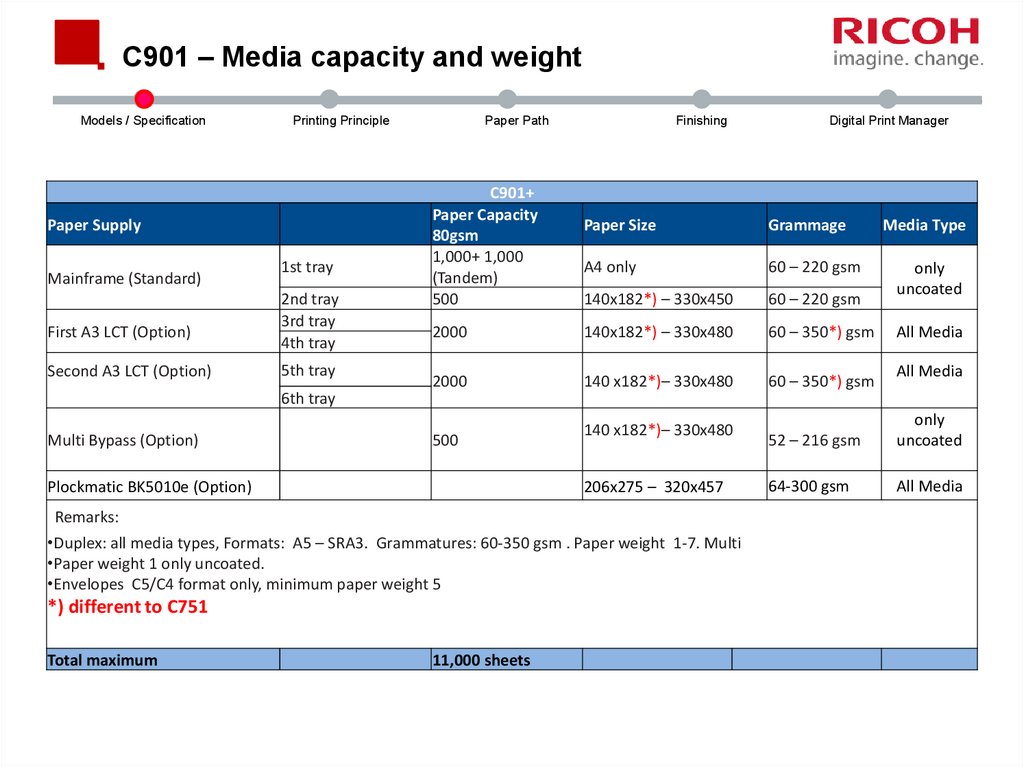

C901 – Media capacity and weight
Models / Specification
Printing Principle
Paper Supply
Mainframe (Standard)
First A3 LCT (Option)
Second A3 LCT (Option)
1st tray
2nd tray
3rd tray
4th tray
5th tray
6th tray
Multi Bypass (Option)
Paper Path
C901+
Paper Capacity
80gsm
1,000+ 1,000
(Tandem)
500
Finishing
Paper Size
Grammage
A4 only
60 – 220 gsm
140x182*) – 330x450
60 – 220 gsm
2000
140x182*) – 330x480
60 – 350*) gsm
2000
140 x182*)– 330x480
60 – 350*) gsm
500
Plockmatic BK5010e (Option)
140 x182*)– 330x480
206x275 – 320x457
Remarks:
•Duplex: all media types, Formats: A5 – SRA3. Grammatures: 60-350 gsm . Paper weight 1-7. Multi
•Paper weight 1 only uncoated.
•Envelopes C5/C4 format only, minimum paper weight 5
*) different to C751
Total maximum
Digital Print Manager
11,000 sheets
Media Type
only
uncoated
All Media
All Media
52 – 216 gsm
only
uncoated
64-300 gsm
All Media

10.

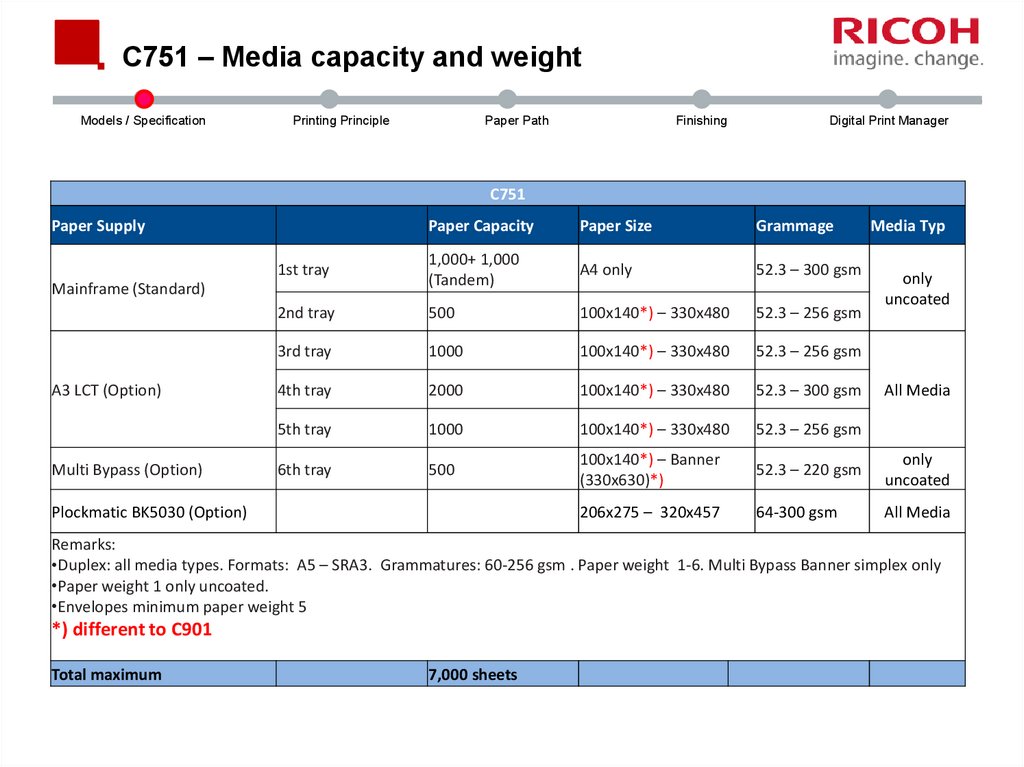

C751 – Media capacity and weight
Models / Specification
Printing Principle
Paper Path
Finishing
Digital Print Manager
C751
Paper Supply
Paper Capacity
Paper Size
Grammage
1st tray
1,000+ 1,000
(Tandem)
A4 only
52.3 – 300 gsm
2nd tray
500
100x140*) – 330x480
52.3 – 256 gsm
3rd tray
1000
100x140*) – 330x480
52.3 – 256 gsm
4th tray
2000
100x140*) – 330x480
52.3 – 300 gsm
5th tray
1000
100x140*) – 330x480
52.3 – 256 gsm
6th tray
500
100x140*) – Banner
(330x630)*)
52.3 – 220 gsm
only
uncoated
206x275 – 320x457
64-300 gsm
All Media
Mainframe (Standard)
A3 LCT (Option)
Multi Bypass (Option)
Plockmatic BK5030 (Option)
Media Typ
only
uncoated
All Media
Remarks:
•Duplex: all media types. Formats: A5 – SRA3. Grammatures: 60-256 gsm . Paper weight 1-6. Multi Bypass Banner simplex only
•Paper weight 1 only uncoated.
•Envelopes minimum paper weight 5
*) different to C901
Total maximum
7,000 sheets

11.

2. Printing Principle

12.

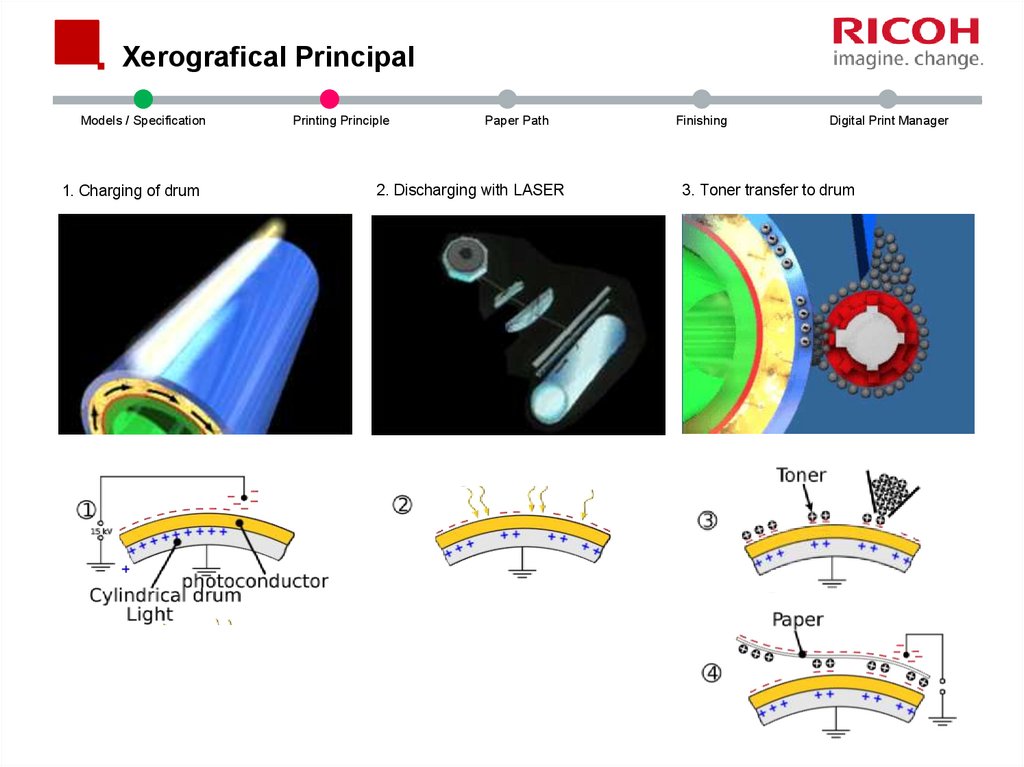

Xerografical Principal
Models / Specification
1. Charging of drum
Printing Principle
Paper Path
2. Discharging with LASER
Finishing
Digital Print Manager
3. Toner transfer to drum

13.

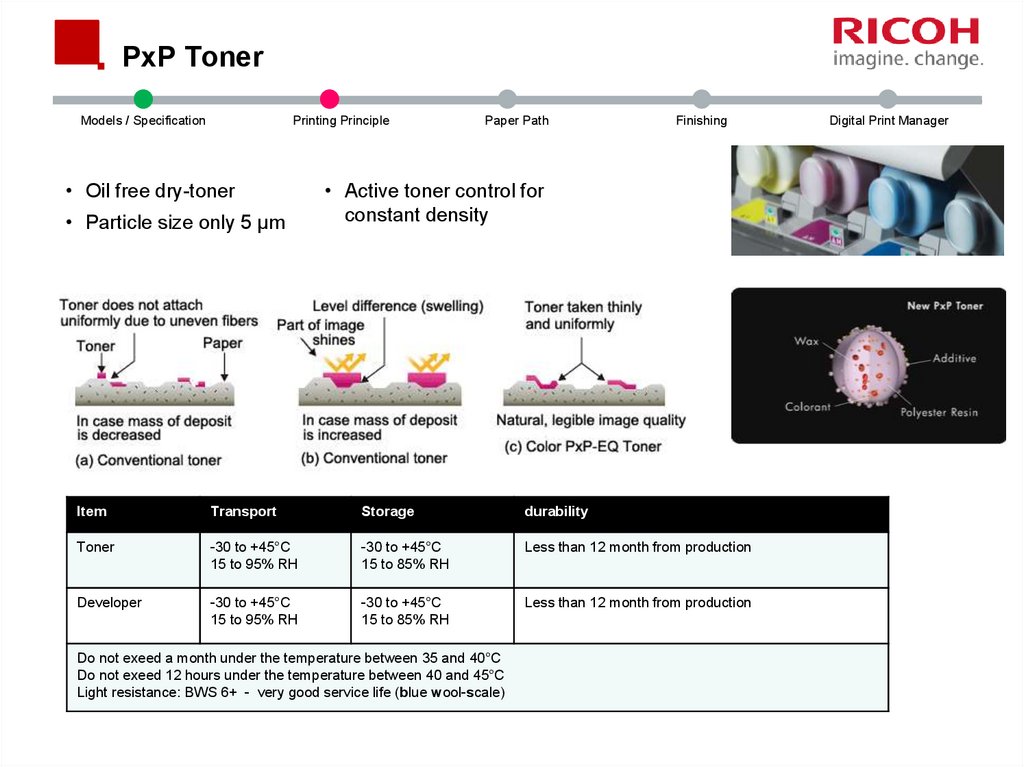

PxP Toner
Models / Specification
Printing Principle
• Oil free dry-toner
• Particle size only 5 µm
Paper Path
Finishing
• Active toner control for
constant density
Item
Transport
Storage
durability
Toner
-30 to +45°C
15 to 95% RH
-30 to +45°C
15 to 85% RH
Less than 12 month from production
Developer
-30 to +45°C
15 to 95% RH
-30 to +45°C
15 to 85% RH
Less than 12 month from production
Do not exeed a month under the temperature between 35 and 40°C
Do not exeed 12 hours under the temperature between 40 and 45°C
Light resistance: BWS 6+ - very good service life (blue wool-scale)
Digital Print Manager

14.

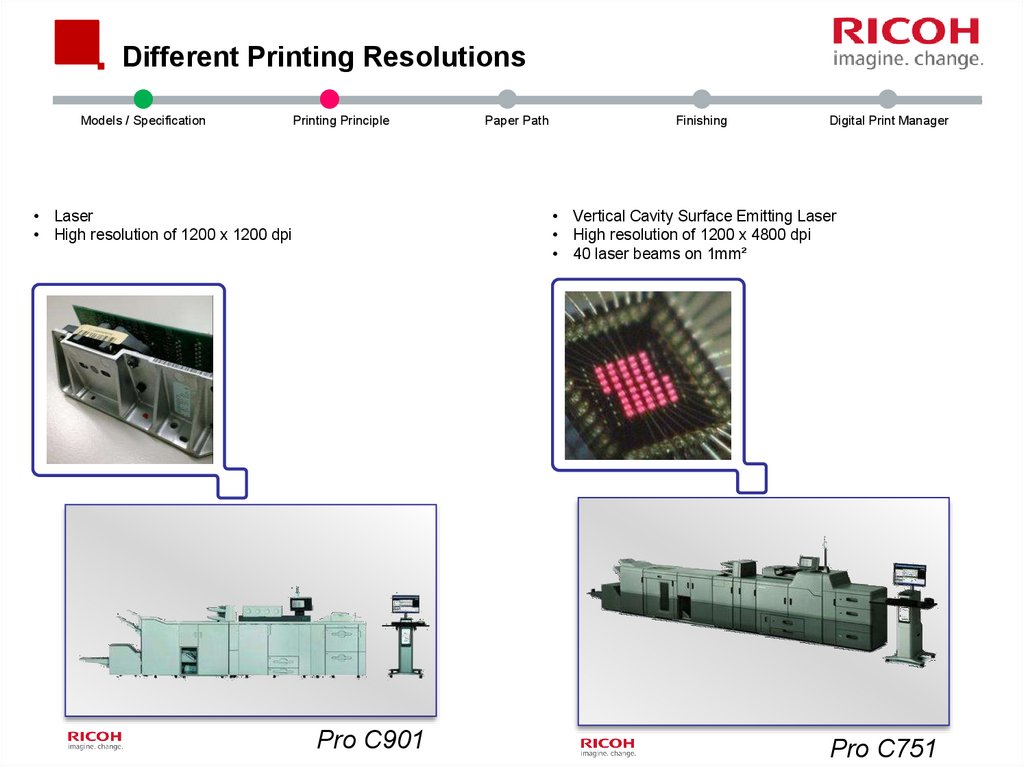

Different Printing Resolutions
Models / Specification
Printing Principle
• Laser
• High resolution of 1200 x 1200 dpi
Paper Path
Finishing
Digital Print Manager
• Vertical Cavity Surface Emitting Laser
• High resolution of 1200 x 4800 dpi
• 40 laser beams on 1mm²
Pro C901
Pro C751

15.

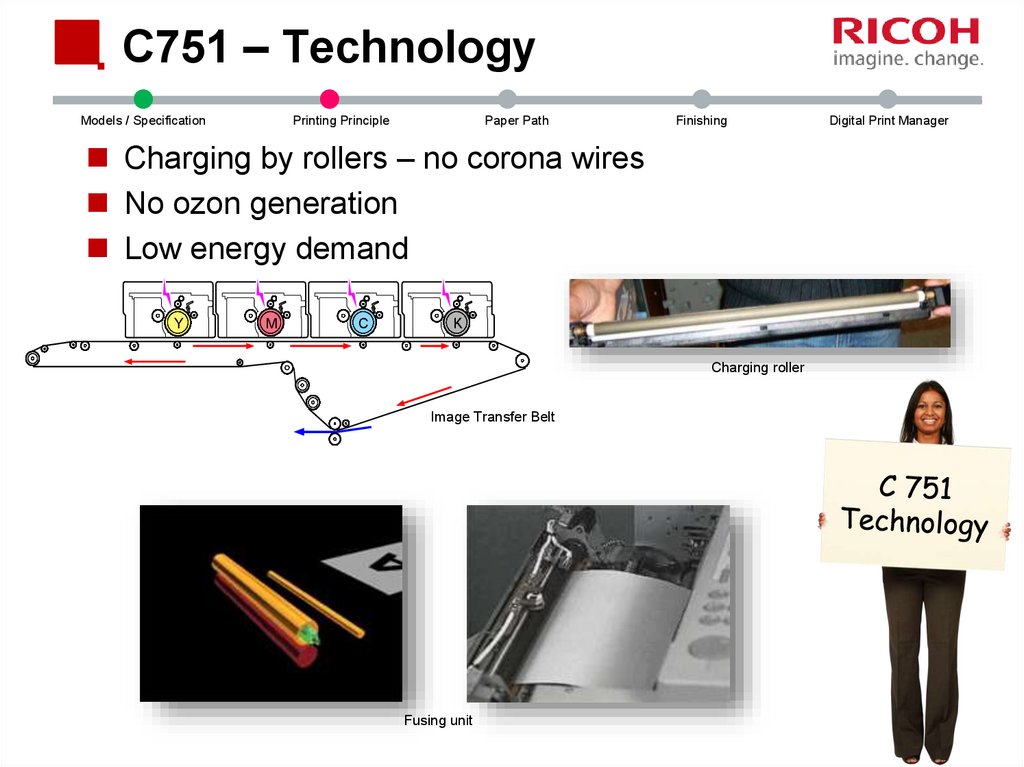

C751 – Technology
Models / Specification
Printing Principle
Paper Path
Finishing
Charging by rollers – no corona wires
No ozon generation
Low energy demand
Y
M
C
K
Charging roller
Image Transfer Belt
Fusing unit
Digital Print Manager

16.

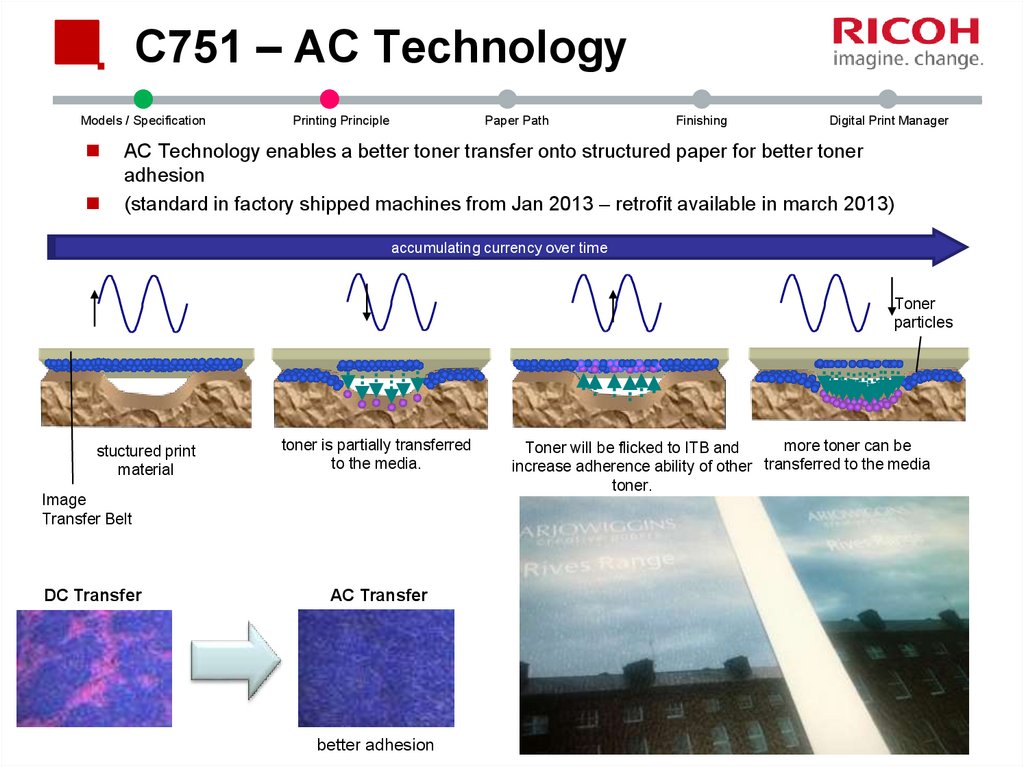

C751 – AC Technology
Models / Specification
Printing Principle
Paper Path
Finishing
Digital Print Manager
AC Technology enables a better toner transfer onto structured paper for better toner
adhesion
(standard in factory shipped machines from Jan 2013 – retrofit available in march 2013)
accumulating currency over time
Toner
particles
stuctured print
material
toner is partially transferred
to the media.
Transfer Belt
DC Transfer
AC Transfer
better adhesion
more toner can be
Toner will be flicked to ITB and
increase adherence ability of other transferred to the media
toner.

17.

3. Paper Path

18.

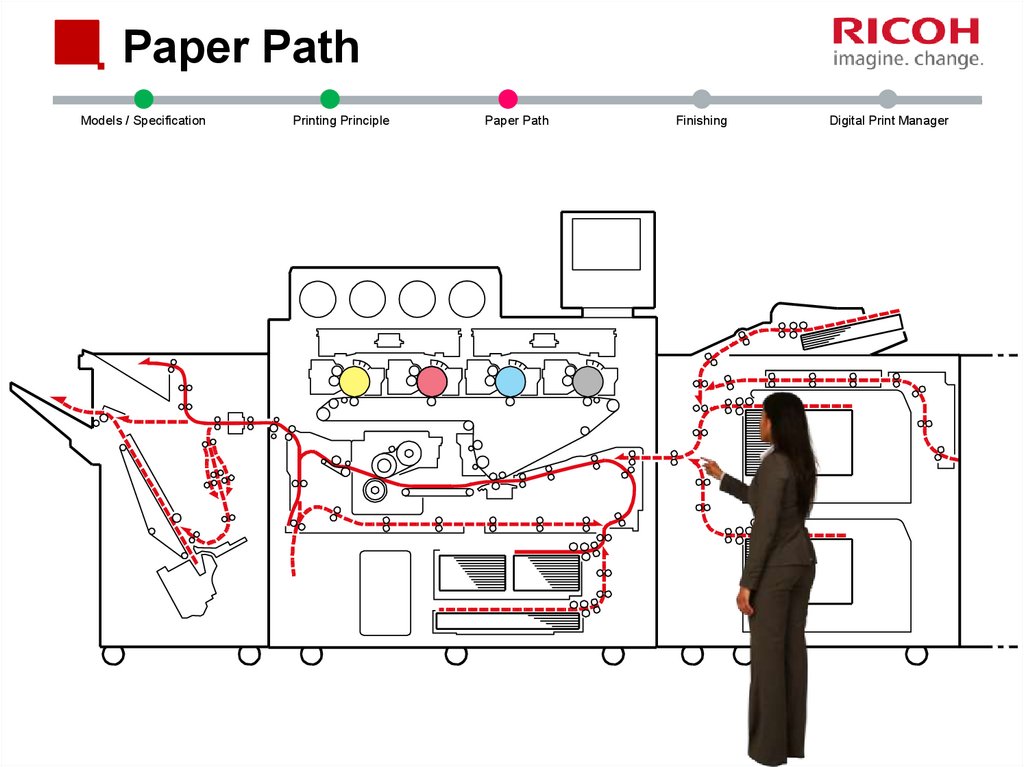

Paper Path
Models / Specification
Printing Principle
Paper Path
Finishing
Digital Print Manager

19.

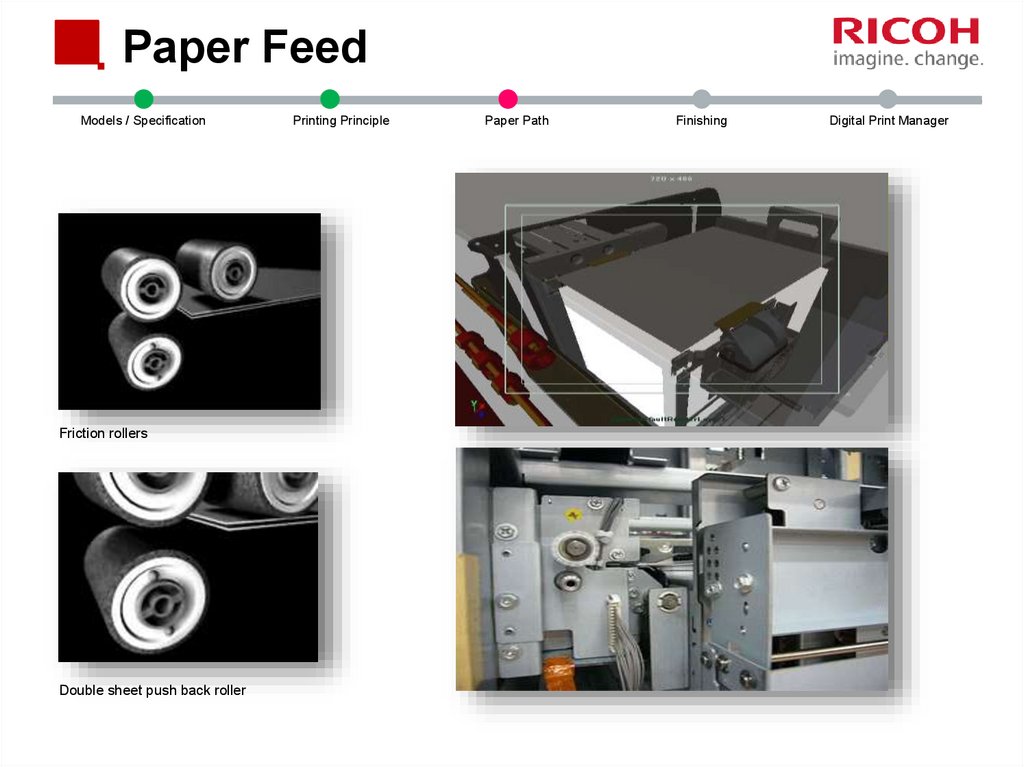

Paper Feed
Models / Specification
Friction rollers
Double sheet push back roller
Printing Principle
Paper Path
Finishing
Digital Print Manager

20.

Media Registration
Models / Specification
Printing Principle
Paper Path
Active registration
Mechanical accuracy (sheet to sheet)
+/-0,5mm (A4)
Paper shrink compensation (C751)
Finishing
Digital Print Manager

21.

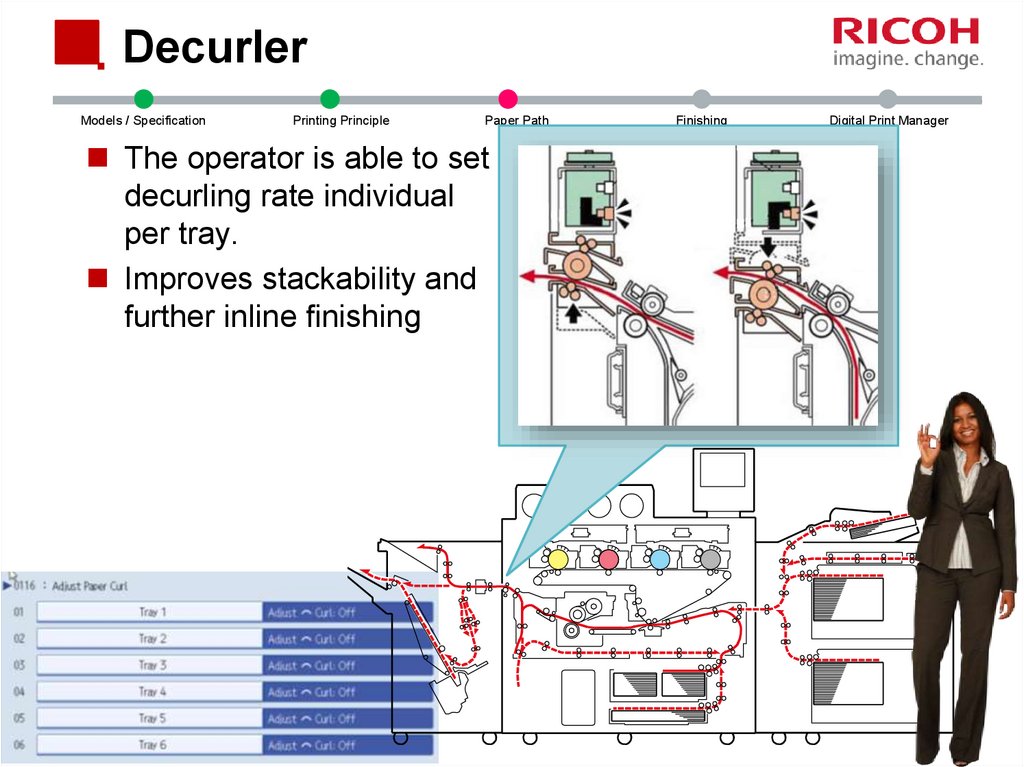

Decurler
Models / Specification
Printing Principle
Paper Path
The operator is able to set
decurling rate individual
per tray.
Improves stackability and
further inline finishing
Finishing
Digital Print Manager

22.

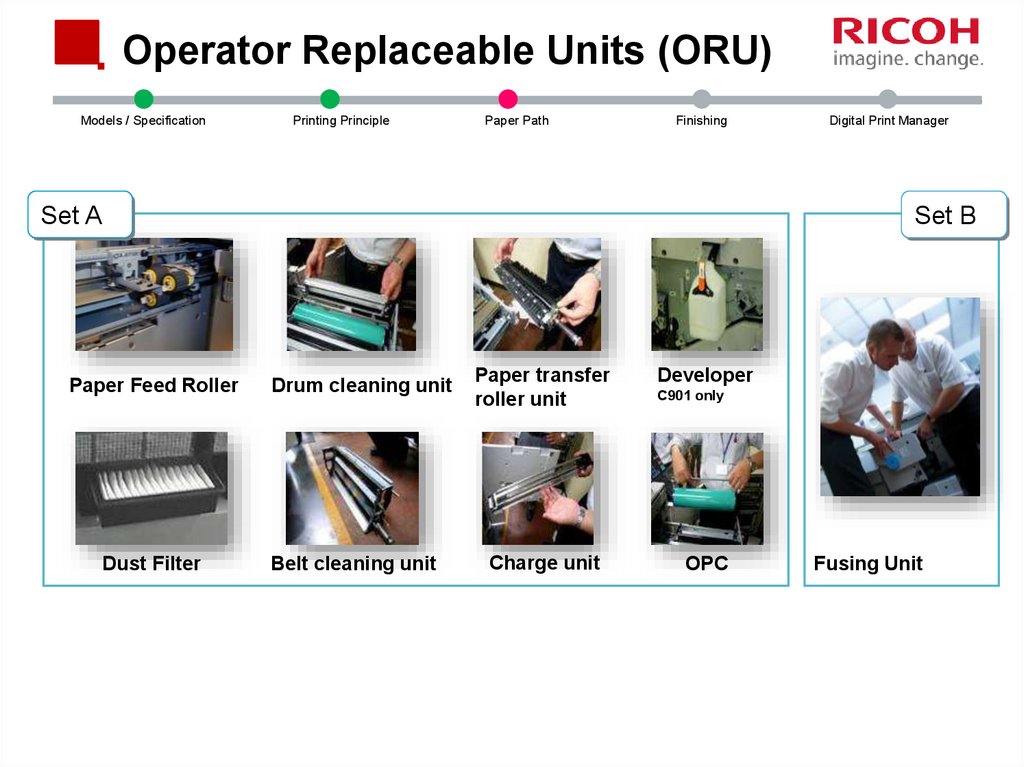

Operator Replaceable Units (ORU)
Models / Specification
Printing Principle
Paper Path
Finishing
Set A
Digital Print Manager
Set B
Paper Feed Roller
Dust Filter
Drum cleaning unit
Belt cleaning unit
Paper transfer
roller unit
Developer
Charge unit
OPC
C901 only
Fusing Unit

23.

4. Finishing

24.

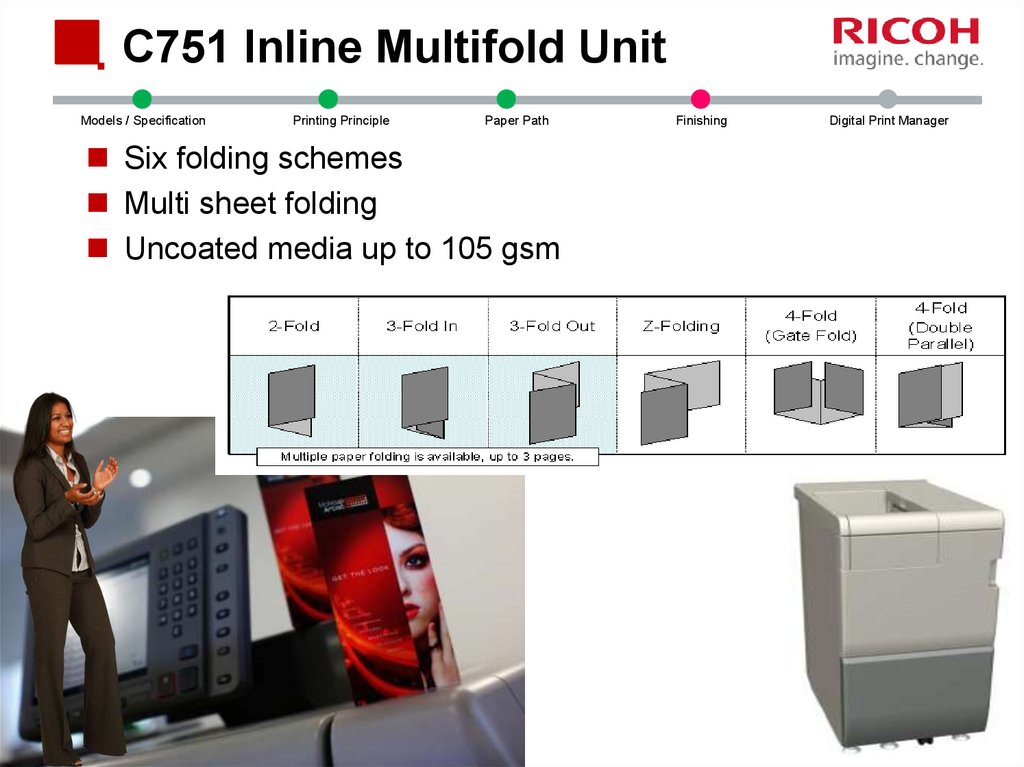

C751 Inline Multifold Unit
Models / Specification
Printing Principle
Paper Path
Six folding schemes
Multi sheet folding
Uncoated media up to 105 gsm
Finishing
Digital Print Manager

25.

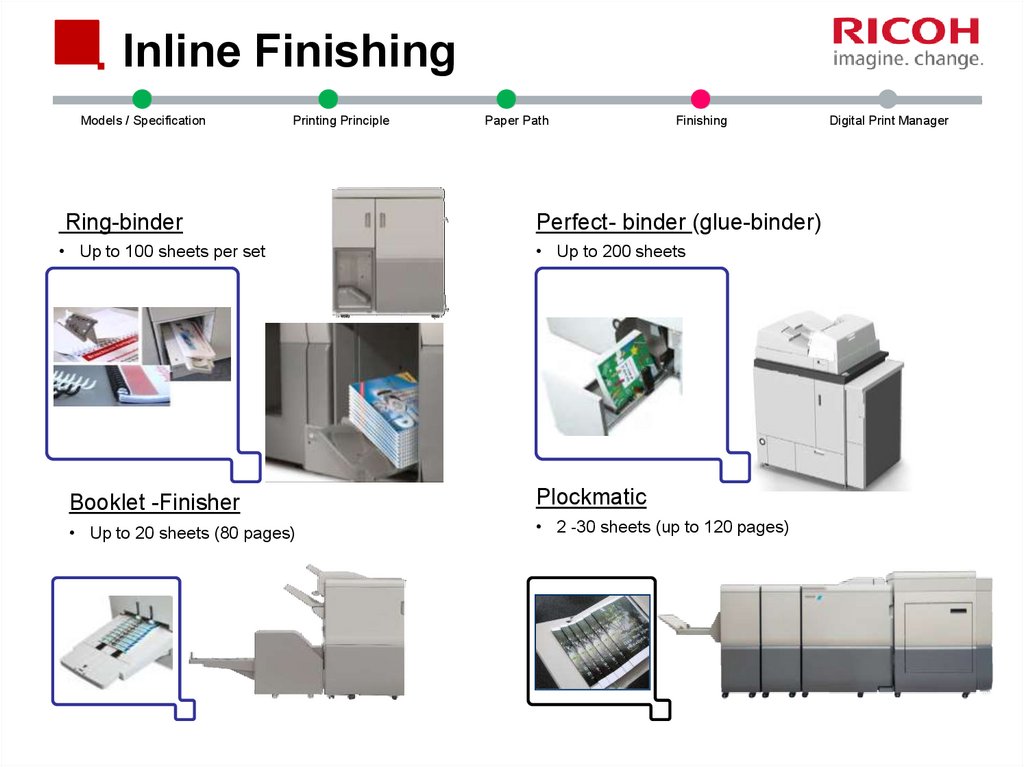

Inline Finishing
Models / Specification
Printing Principle
Ring-binder
• Up to 100 sheets per set
Paper Path
Finishing
Perfect- binder (glue-binder)
• Up to 200 sheets
Booklet -Finisher
Plockmatic
• Up to 20 sheets (80 pages)
• 2 -30 sheets (up to 120 pages)
Digital Print Manager

26.

5. Digital Print Manager

27.

Command Workstation
Models / Specification
Printing Principle
Paper Path
Finishing
Digital Print Manager
Productivity
Color &
Quality
Flexibility
Adding
Value
To The
Workflow

28.

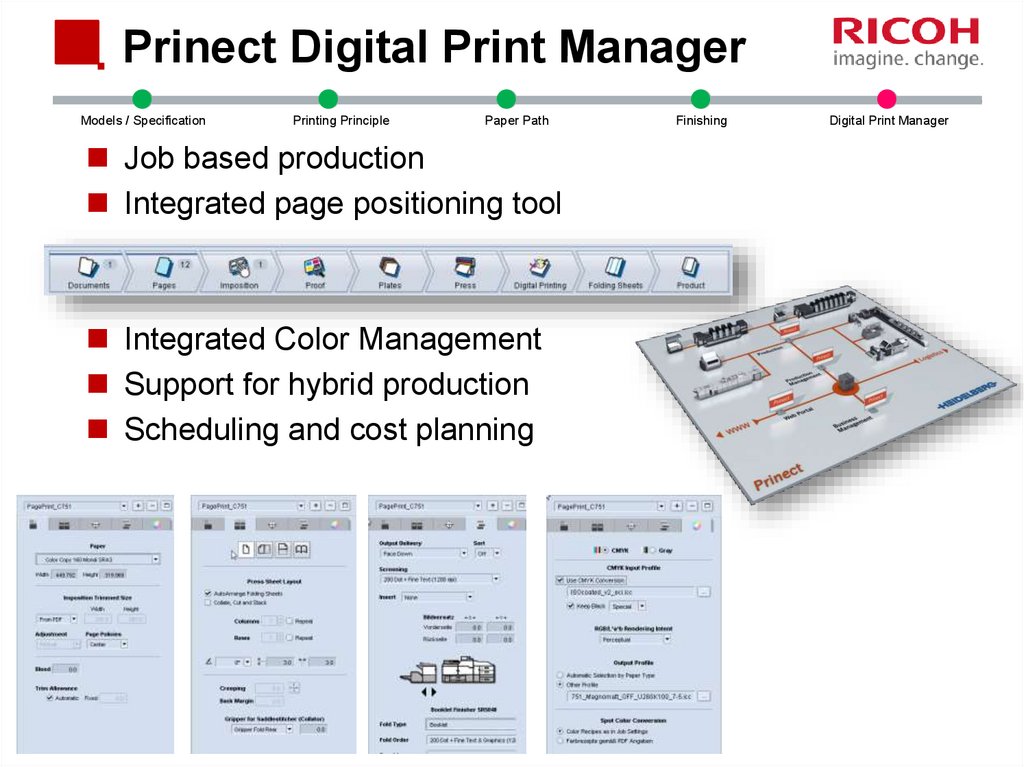

Prinect Digital Print Manager
Models / Specification
Printing Principle
Paper Path
Job based production
Integrated page positioning tool
Integrated Color Management
Support for hybrid production
Scheduling and cost planning
Finishing
Digital Print Manager
