Turbo Code Explanation

1.

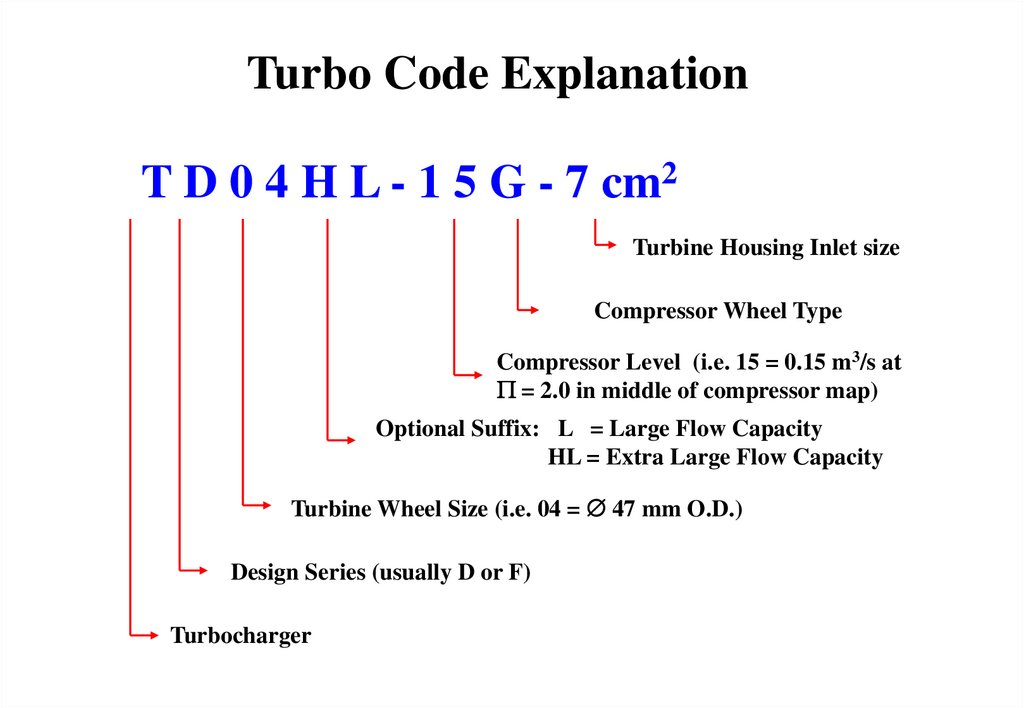

Turbo Code Explanation
T D 0 4 H L - 1 5 G - 7 cm2
Turbine Housing Inlet size
Compressor Wheel Type
Compressor Level (i.e. 15 = 0.15 m3/s at
= 2.0 in middle of compressor map)
Optional Suffix: L = Large Flow Capacity
HL = Extra Large Flow Capacity
Turbine Wheel Size (i.e. 04 = 47 mm O.D.)
Design Series (usually D or F)
Turbocharger
