Bria Mobile test result

1.

Bria Mobile test result

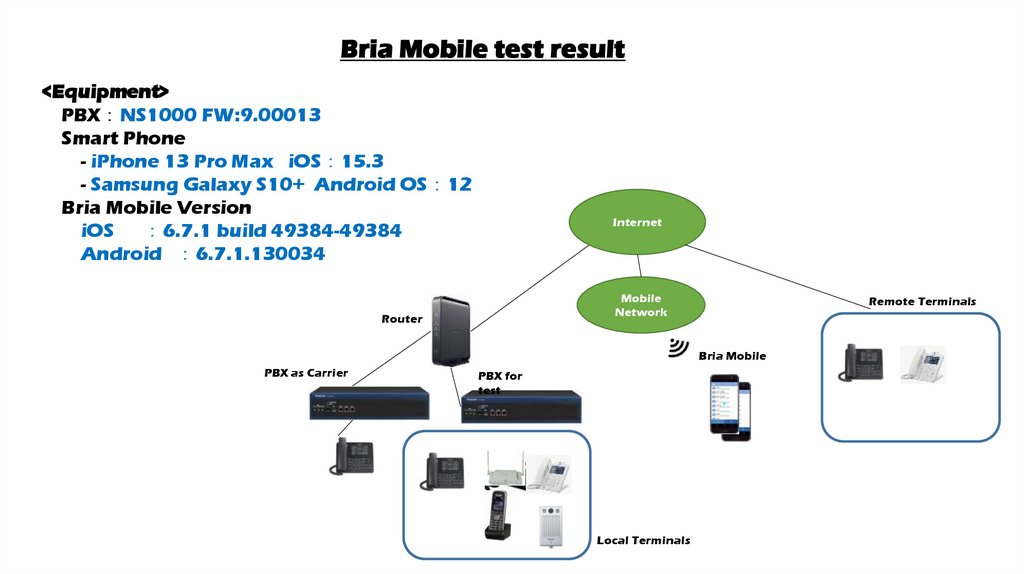

<Equipment>
PBX NS1000 FW:9.00013
Smart Phone
- iPhone 13 Pro Max iOS 15.3
- Samsung Galaxy S10+ Android OS 12
Bria Mobile Version
iOS
6.7.1 build 49384-49384
Android 6.7.1.130034
Internet
Mobile
Network
Router
Remote Terminals
Bria Mobile
PBX as Carrier
PBX for
test
Local Terminals

2.

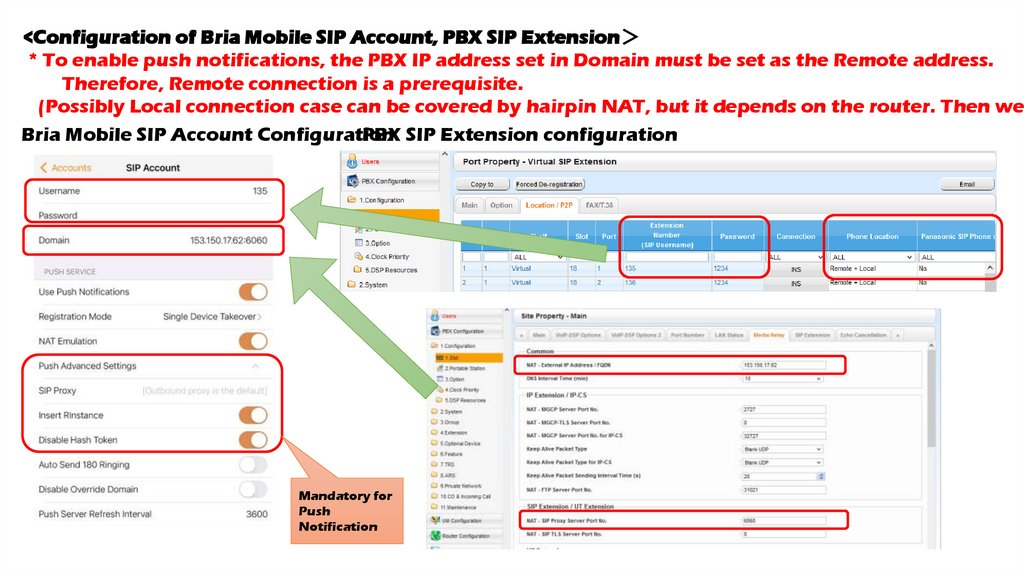

<Configuration of Bria Mobile SIP Account, PBX SIP Extension
* To enable push notifications, the PBX IP address set in Domain must be set as the Remote address.
Therefore, Remote connection is a prerequisite.
(Possibly Local connection case can be covered by hairpin NAT, but it depends on the router. Then we
Bria Mobile SIP Account Configuration
PBX SIP Extension configuration
Mandatory for
Push
Notification

3.

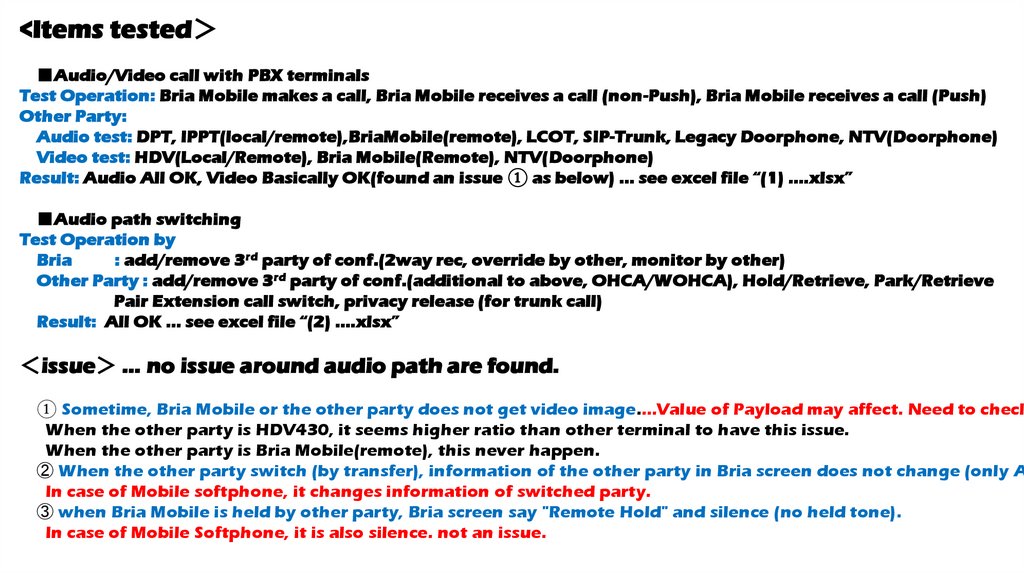

<Items tested
■Audio/Video call with PBX terminals
Test Operation: Bria Mobile makes a call, Bria Mobile receives a call (non-Push), Bria Mobile receives a call (Push)
Other Party:
Audio test: DPT, IPPT(local/remote),BriaMobile(remote), LCOT, SIP-Trunk, Legacy Doorphone, NTV(Doorphone)
Video test: HDV(Local/Remote), Bria Mobile(Remote), NTV(Doorphone)
Result: Audio All OK, Video Basically OK(found an issue ① as below) … see excel file “(1) ….xlsx”
■Audio path switching
Test Operation by
Bria
: add/remove 3rd party of conf.(2way rec, override by other, monitor by other)
Other Party : add/remove 3rd party of conf.(additional to above, OHCA/WOHCA), Hold/Retrieve, Park/Retrieve
Pair Extension call switch, privacy release (for trunk call)
Result: All OK … see excel file “(2) ….xlsx”
issue … no issue around audio path are found.
① Sometime, Bria Mobile or the other party does not get video image.…Value of Payload may affect. Need to check
When the other party is HDV430, it seems higher ratio than other terminal to have this issue.
When the other party is Bria Mobile(remote), this never happen.
② When the other party switch (by transfer), information of the other party in Bria screen does not change (only A
In case of Mobile softphone, it changes information of switched party.
③ when Bria Mobile is held by other party, Bria screen say "Remote Hold" and silence (no held tone).
In case of Mobile Softphone, it is also silence. not an issue.

4.

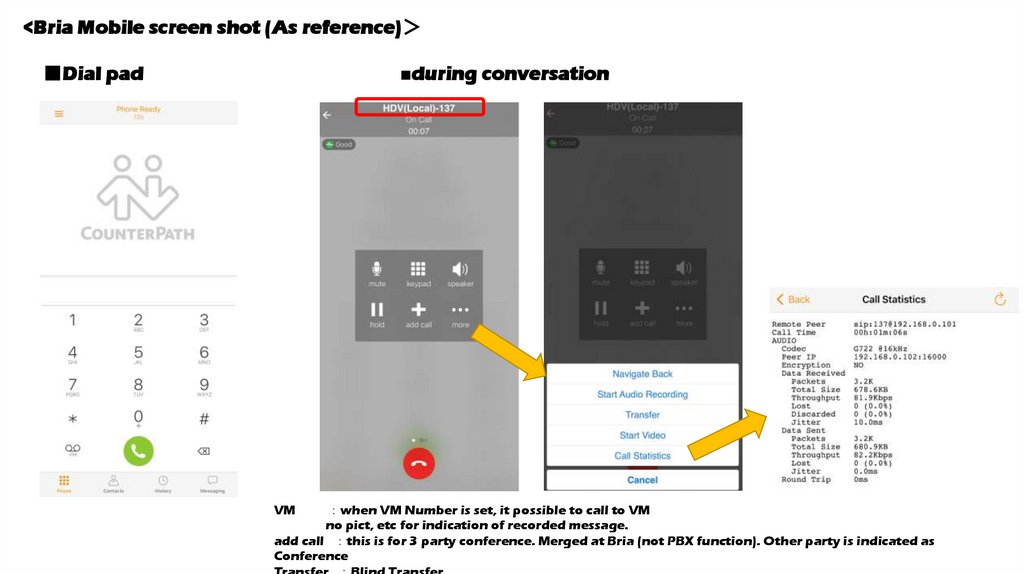

<Bria Mobile screen shot (As reference)
■Dial pad
■during conversation
VM
when VM Number is set, it possible to call to VM
no pict, etc for indication of recorded message.
add call this is for 3 party conference. Merged at Bria (not PBX function). Other party is indicated as
Conference
Transfer Blind Transfer
