MC-80 Series Service Training_V3.0

1.

Service Training--MC-80/MC-82
IVD Global Technical Support Department
Version: V3.0
No: MXQ-22001-MC-80/MC-82
© 2021 Mindray Confidential
OTY -12002(4.0)

2.

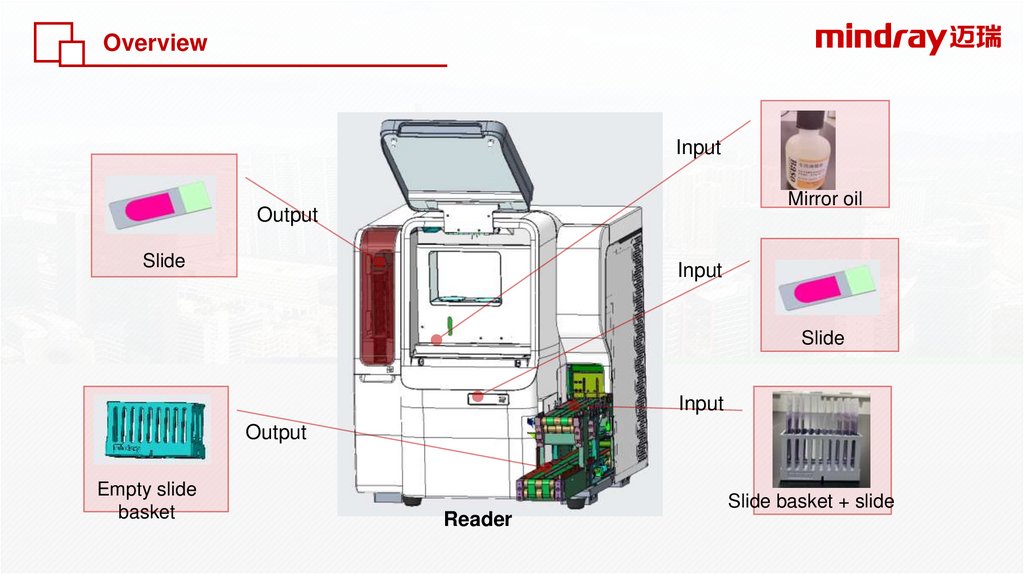

Overview
Input
Mirror oil
Output
Slide
Input
Slide
Input
Output
Empty slide
basket
Reader
Slide basket + slide

3.

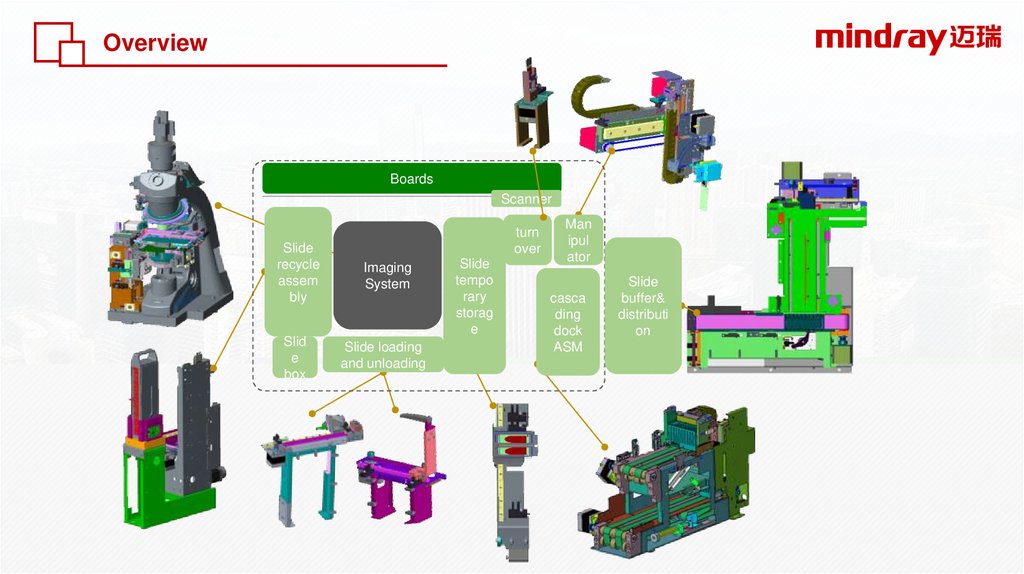

Overview
Boards
Scanner
turn
over
Slide
recycle
assem
bly
Imaging
System
Slid
e
box
Slide loading
and unloading
Slide
tempo
rary
storag
e
Man
ipul
ator
casca
ding
dock
ASM
Slide
buffer&
distributi
on

4.

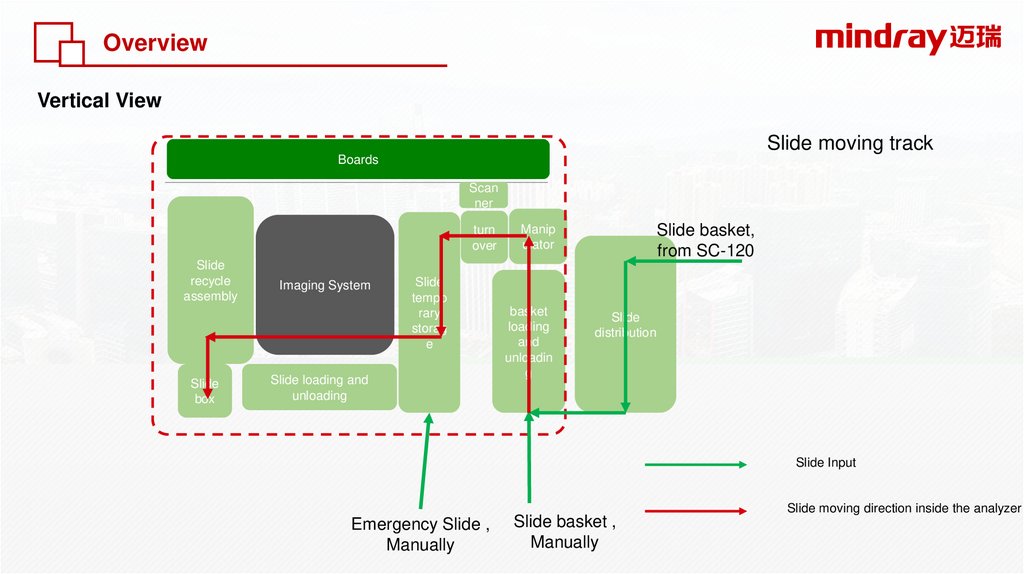

Overview
Vertical View
Slide moving track
Boards
Scan
ner
turn
over
Slide
recycle
assembly
Slide
box
Imaging System
Slide
tempo
rary
storag
e
Slide loading and
unloading
Slide basket,
from SC-120
Manip
ulator
basket
loading
and
unloadin
g
Slide
distribution
Slide Input
Emergency Slide ,
Manually
Slide basket ,
Manually
Slide moving direction inside the analyzer

5.

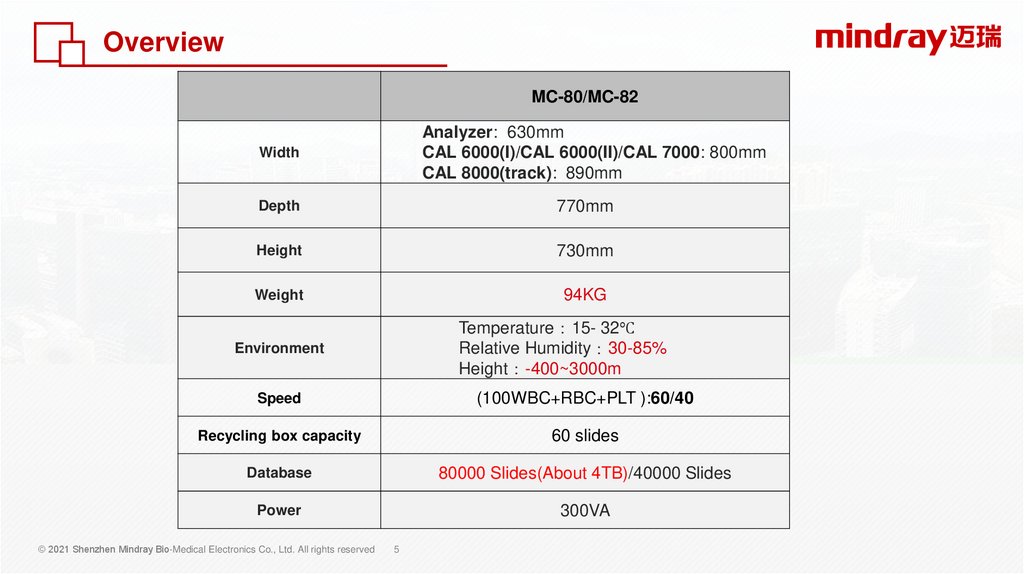

Overview
MC-80/MC-82
Width
Analyzer: 630mm
CAL 6000(I)/CAL 6000(II)/CAL 7000: 800mm
CAL 8000(track): 890mm
Depth
770mm
Height
730mm
Weight
94KG
Temperature 15- 32℃
Relative Humidity 30-85%
Height -400~3000m
Environment
Speed
(100WBC+RBC+PLT ):60/40
Recycling box capacity
60 slides
Database
80000 Slides(About 4TB)/40000 Slides
Power
300VA
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
5

6.

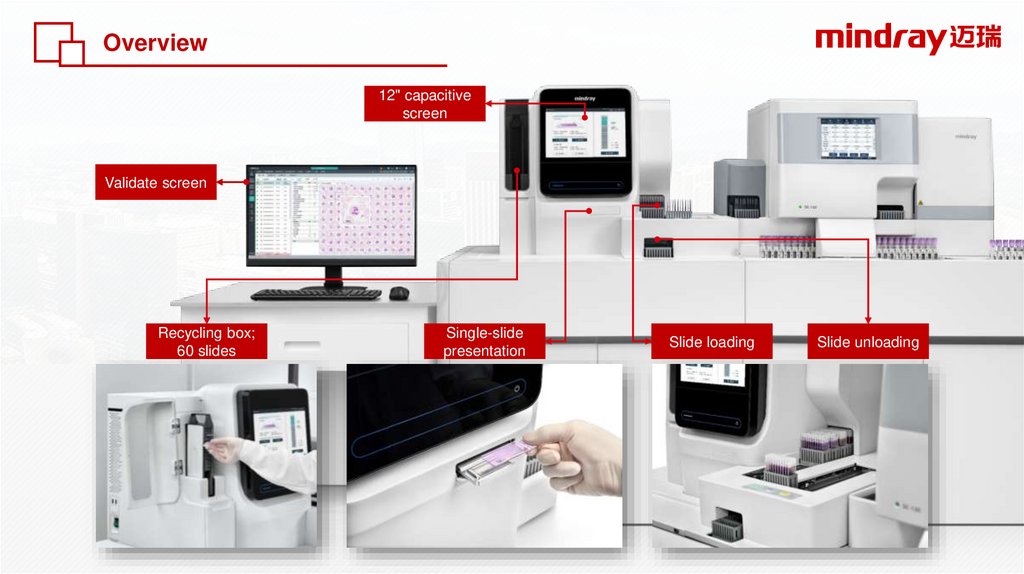

Overview
12" capacitive
screen
Validate screen
Recycling box;
60 slides
Single-slide
presentation
Slide loading
Slide unloading

7.

Overview

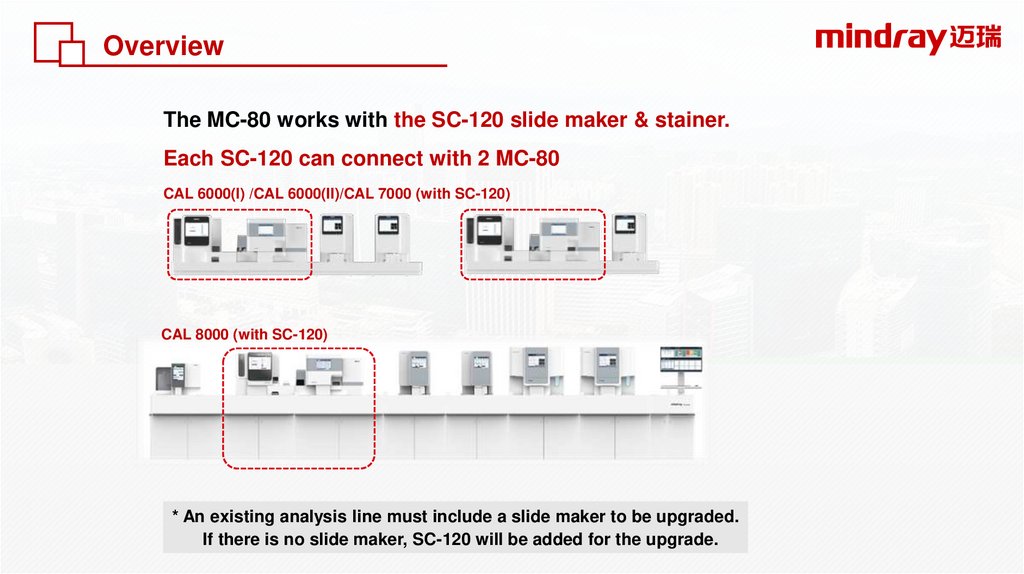

The MC-80 works with the SC-120 slide maker & stainer.
Each SC-120 can connect with 2 MC-80
CAL 6000(I) /CAL 6000(II)/CAL 7000 (with SC-120)
CAL 8000 (with SC-120)
* An existing analysis line must include a slide maker to be upgraded.
If there is no slide maker, SC-120 will be added for the upgrade.

8.

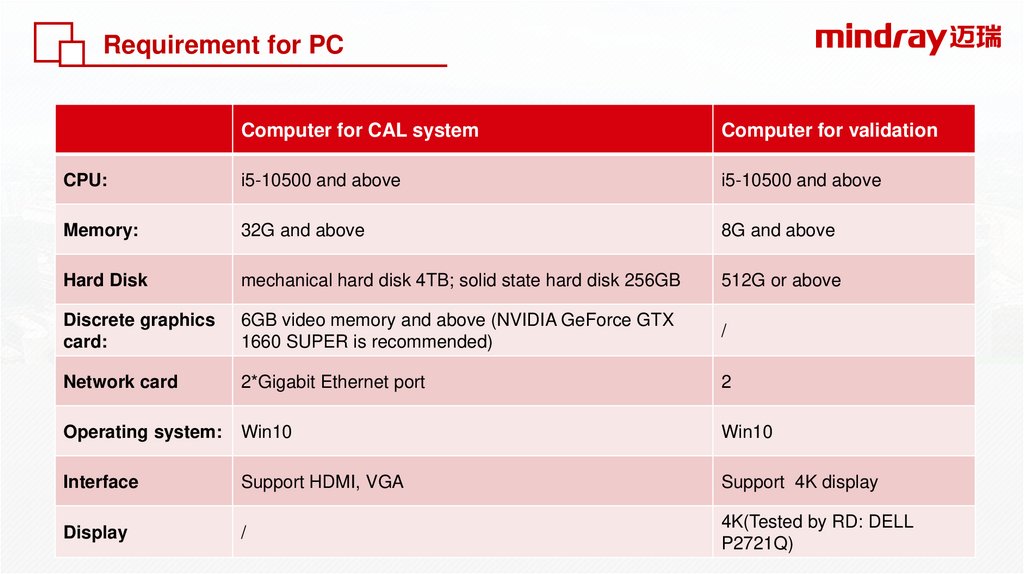

Requirement for PC
Computer for CAL system
Computer for validation
CPU:
i5-10500 and above
i5-10500 and above
Memory:
32G and above
8G and above
Hard Disk
mechanical hard disk 4TB; solid state hard disk 256GB
512G or above
Discrete graphics
card:
6GB video memory and above (NVIDIA GeForce GTX
1660 SUPER is recommended)
/
Network card
2*Gigabit Ethernet port
2
Operating system:
Win10
Win10
Interface
Support HDMI, VGA
Support 4K display
Display
/
4K(Tested by RD: DELL
P2721Q)

9.

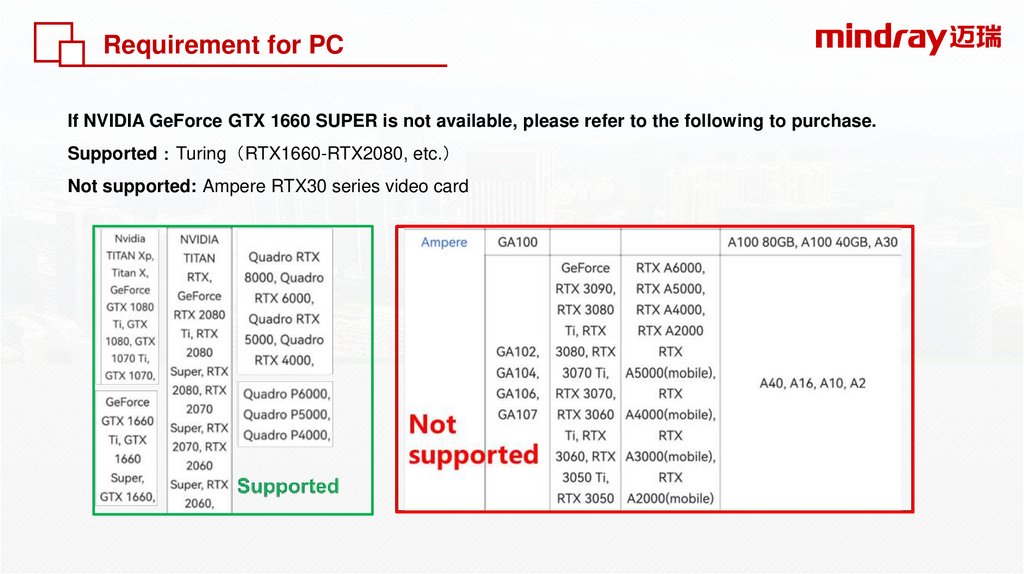

Requirement for PC
If NVIDIA GeForce GTX 1660 SUPER is not available, please refer to the following to purchase.
Supported Turing RTX1660-RTX2080, etc.
Not supported: Ampere RTX30 series video card

10.

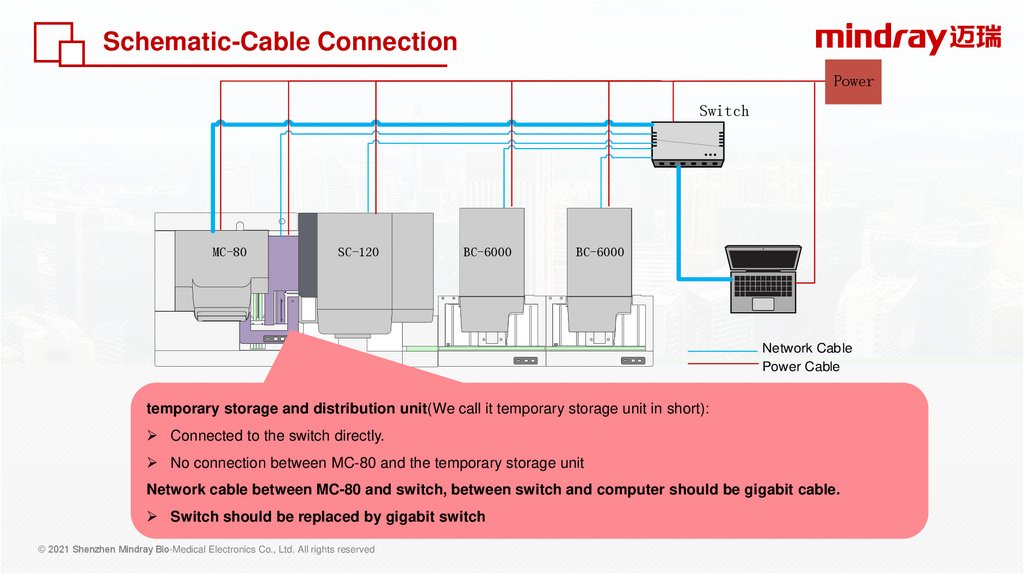

Schematic-Cable Connection
Power
Switch
MC-80
SC-120
BC-6000
BC-6000
Network Cable
Power Cable
temporary storage and distribution unit(We call it temporary storage unit in short):
Connected to the switch directly.
No connection between MC-80 and the temporary storage unit
Network cable between MC-80 and switch, between switch and computer should be gigabit cable.
Switch should be replaced by gigabit
switch
10
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

11.

Subsystems
Subsystems
11
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

12.

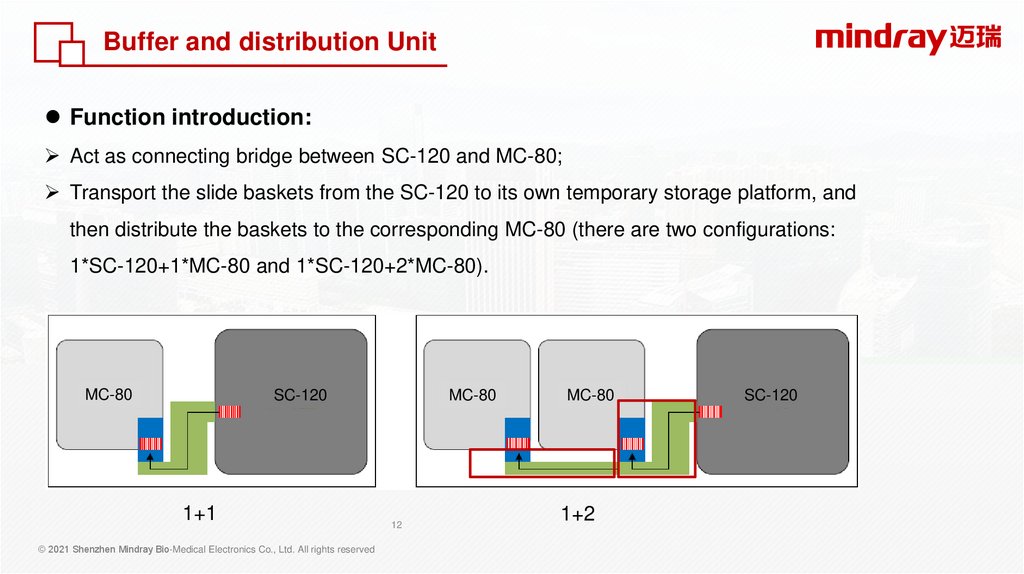

Buffer and distribution Unit
Function introduction:
Act as connecting bridge between SC-120 and MC-80;
Transport the slide baskets from the SC-120 to its own temporary storage platform, and
then distribute the baskets to the corresponding MC-80 (there are two configurations:
1*SC-120+1*MC-80 and 1*SC-120+2*MC-80).
MC-80
SC-120
1+1
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
MC-80
12
MC-80
1+2
SC-120

13.

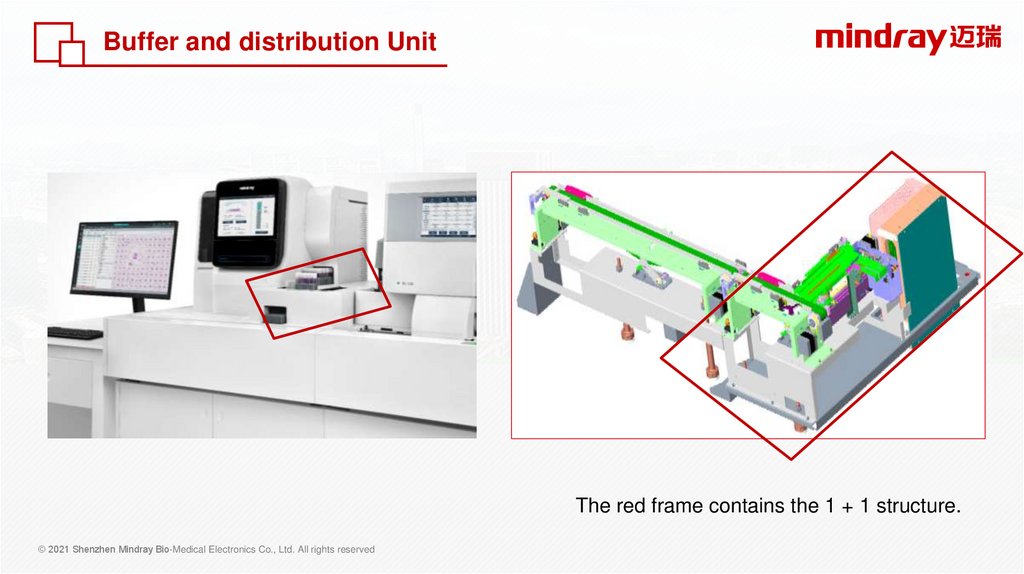

Buffer and distribution Unit
The red frame contains the 1 + 1 structure.
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

14.

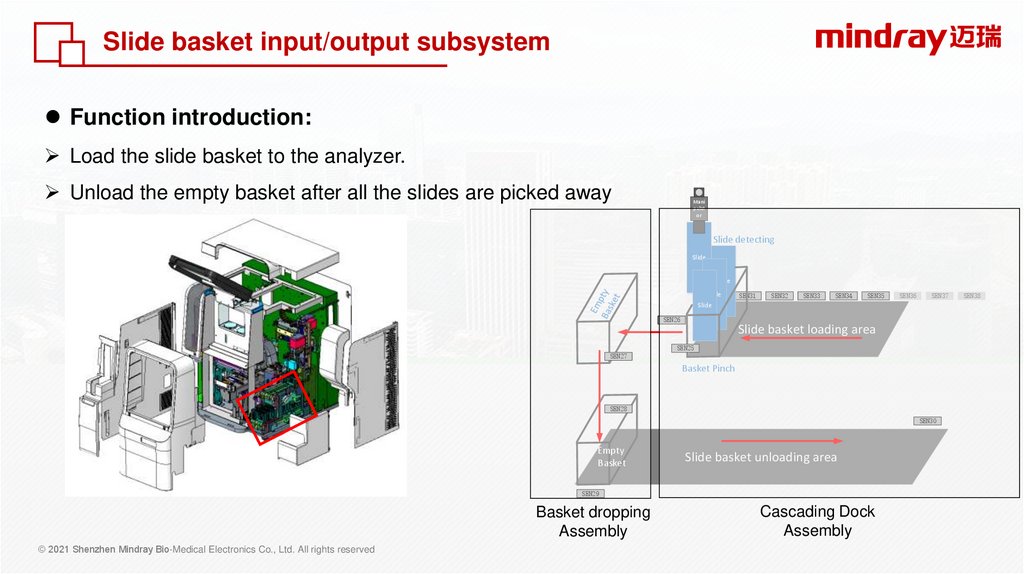

Slide basket input/output subsystem
Function introduction:
Load the slide basket to the analyzer.
Unload the empty basket after all the slides are picked away
Mani
pulat
or
Slide detecting
Slide
Slide
Slide
SEN31
SEN32
SEN33
SEN34
SEN35
SEN36
SEN37
Slide
SEN26
Slide basket loading area
SEN25
SEN27
Basket Pinch
SEN28
SEN30
Empty
Basket
Slide basket unloading area
SEN29
Basket dropping
Assembly
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
Cascading Dock
Assembly
SEN38

15.

Slide basket input/output subsystem

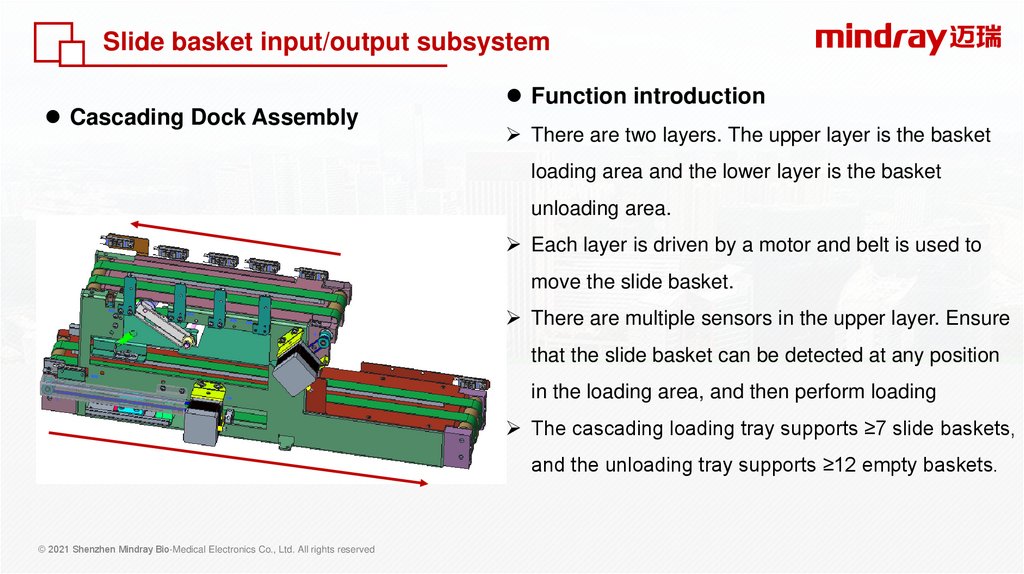

Cascading Dock Assembly
Function introduction
There are two layers. The upper layer is the basket
loading area and the lower layer is the basket
unloading area.
Each layer is driven by a motor and belt is used to
move the slide basket.
There are multiple sensors in the upper layer. Ensure
that the slide basket can be detected at any position
in the loading area, and then perform loading
The cascading loading tray supports ≥7 slide baskets,
and the unloading tray supports ≥12 empty baskets.
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

16.

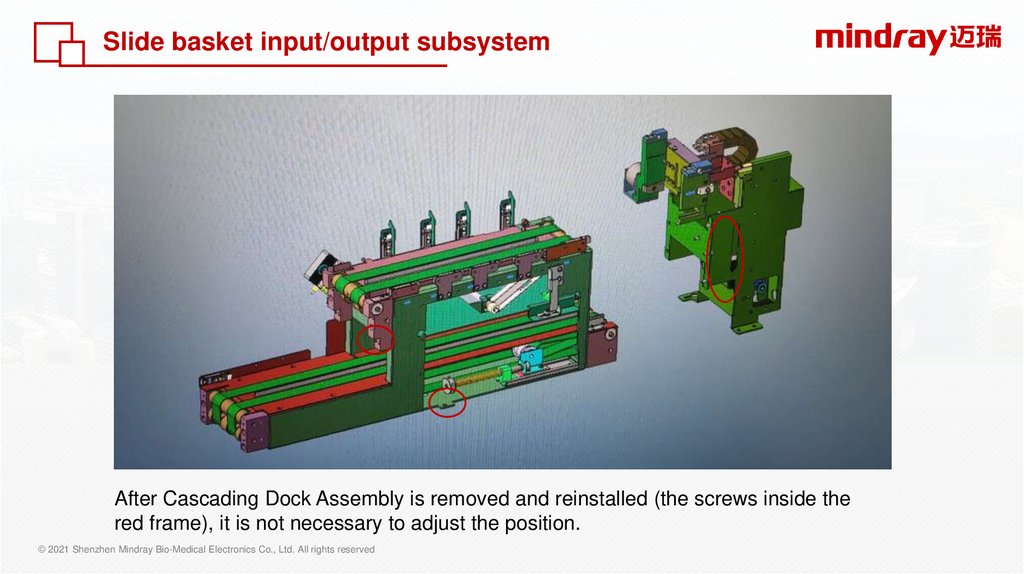

Slide basket input/output subsystem
After Cascading Dock Assembly is removed and reinstalled (the screws inside the
red frame), it is not necessary to adjust the position.
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

17.

Slide basket input/output subsystem

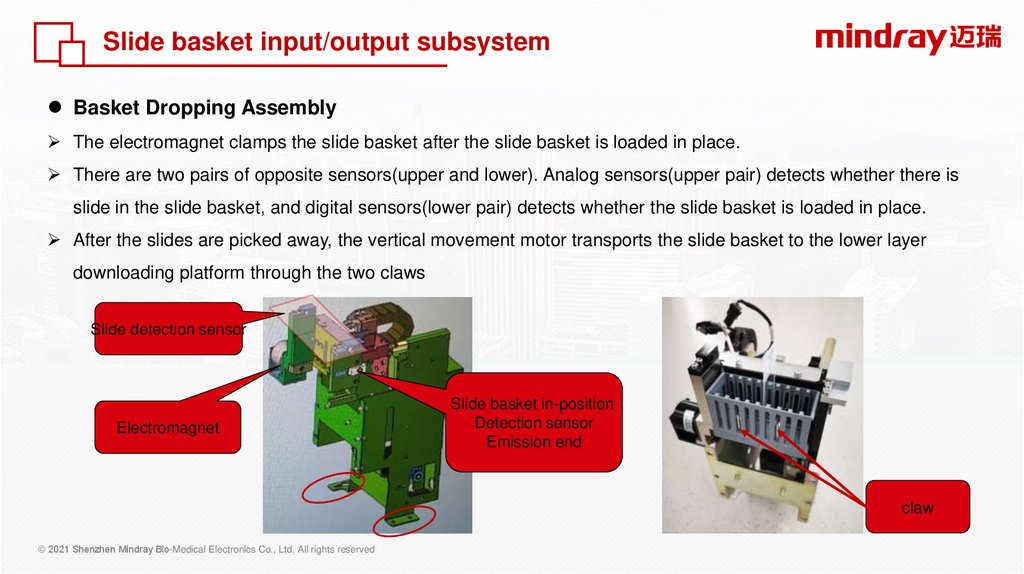

Basket Dropping Assembly
The electromagnet clamps the slide basket after the slide basket is loaded in place.
There are two pairs of opposite sensors(upper and lower). Analog sensors(upper pair) detects whether there is
slide in the slide basket, and digital sensors(lower pair) detects whether the slide basket is loaded in place.
After the slides are picked away, the vertical movement motor transports the slide basket to the lower layer
downloading platform through the two claws
Slide detection sensor
Electromagnet
Slide basket in-position
Detection sensor
Emission end
claw
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

18.

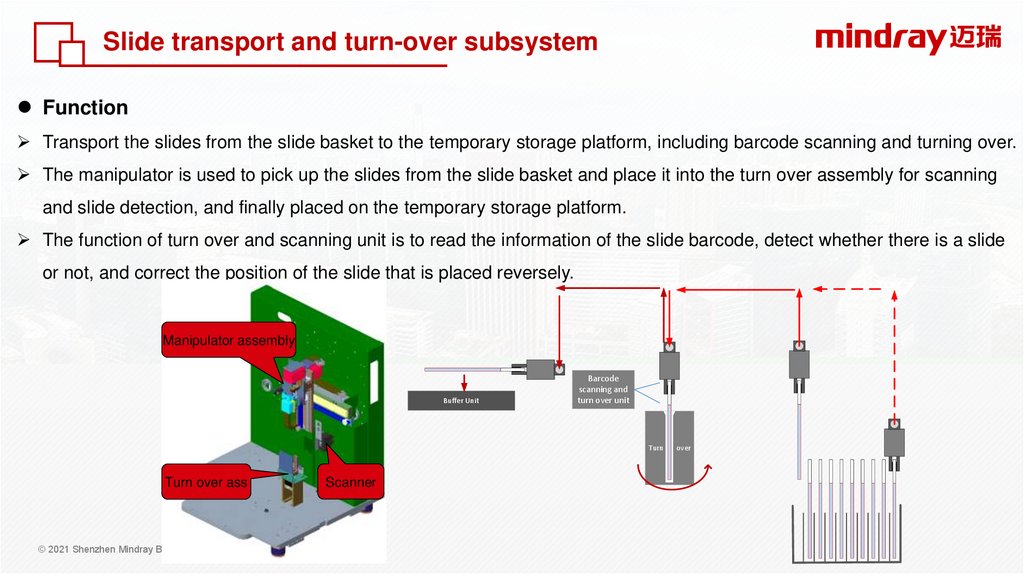

Slide transport and turn-over subsystem
Function
Transport the slides from the slide basket to the temporary storage platform, including barcode scanning and turning over.
The manipulator is used to pick up the slides from the slide basket and place it into the turn over assembly for scanning
and slide detection, and finally placed on the temporary storage platform.
The function of turn over and scanning unit is to read the information of the slide barcode, detect whether there is a slide
or not, and correct the position of the slide that is placed reversely.
Manipulator assembly
Buffer Unit
Barcode
scanning and
turn over unit
Turn
Turn over ass
Scanner
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
over

19.

Slide transport and turn-over subsystem
Assembly Description

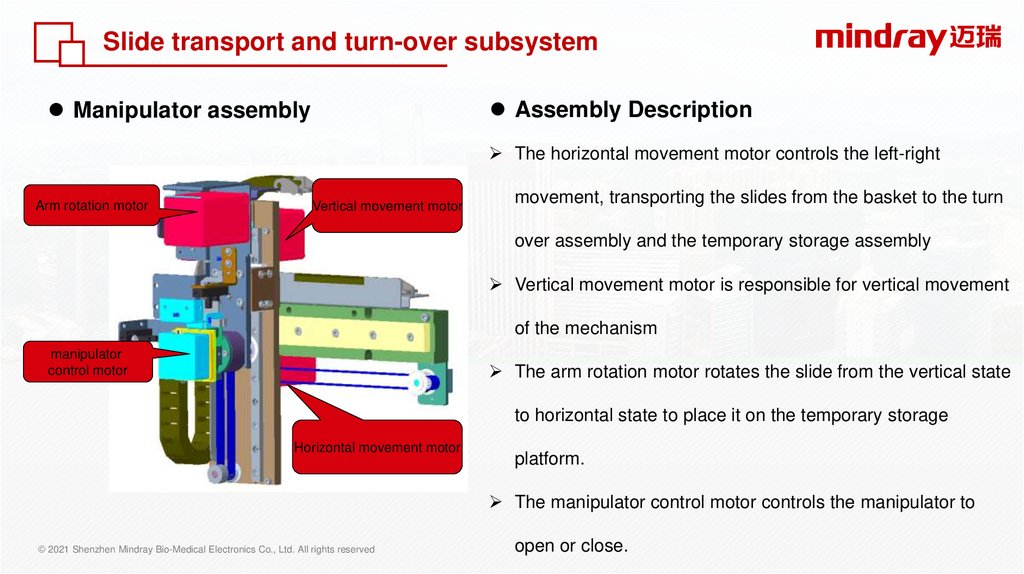

Manipulator assembly
The horizontal movement motor controls the left-right
Arm rotation motor
Vertical movement motor
movement, transporting the slides from the basket to the turn
over assembly and the temporary storage assembly
Vertical movement motor is responsible for vertical movement
of the mechanism
manipulator
control motor
The arm rotation motor rotates the slide from the vertical state
to horizontal state to place it on the temporary storage
Horizontal movement motor
platform.
The manipulator control motor controls the manipulator to
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
open or close.

20.

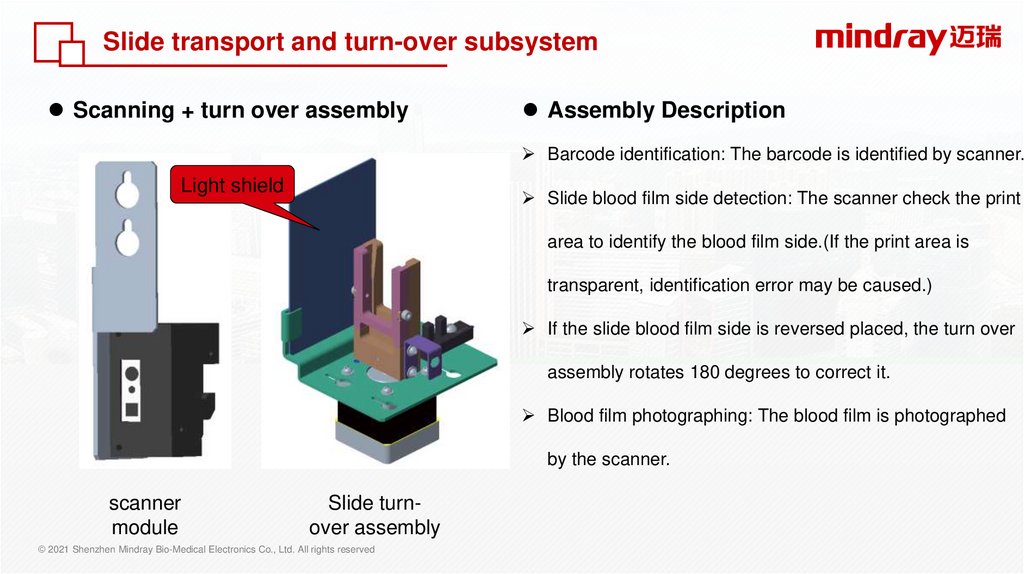

Slide transport and turn-over subsystem
Scanning + turn over assembly
Assembly Description
Barcode identification: The barcode is identified by scanner.
Light shield
Slide blood film side detection: The scanner check the print
area to identify the blood film side.(If the print area is
transparent, identification error may be caused.)
If the slide blood film side is reversed placed, the turn over
assembly rotates 180 degrees to correct it.
Blood film photographing: The blood film is photographed
by the scanner.
scanner
module
Slide turnover assembly
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

21.

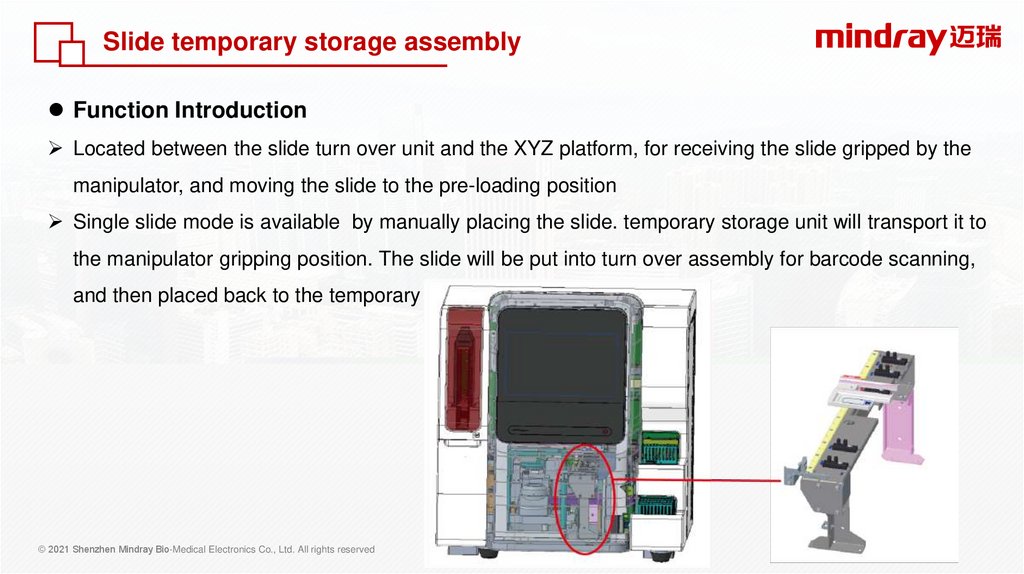

Slide temporary storage assembly
Function Introduction
Located between the slide turn over unit and the XYZ platform, for receiving the slide gripped by the
manipulator, and moving the slide to the pre-loading position
Single slide mode is available by manually placing the slide. temporary storage unit will transport it to
the manipulator gripping position. The slide will be put into turn over assembly for barcode scanning,
and then placed back to the temporary storage unit.
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

22.

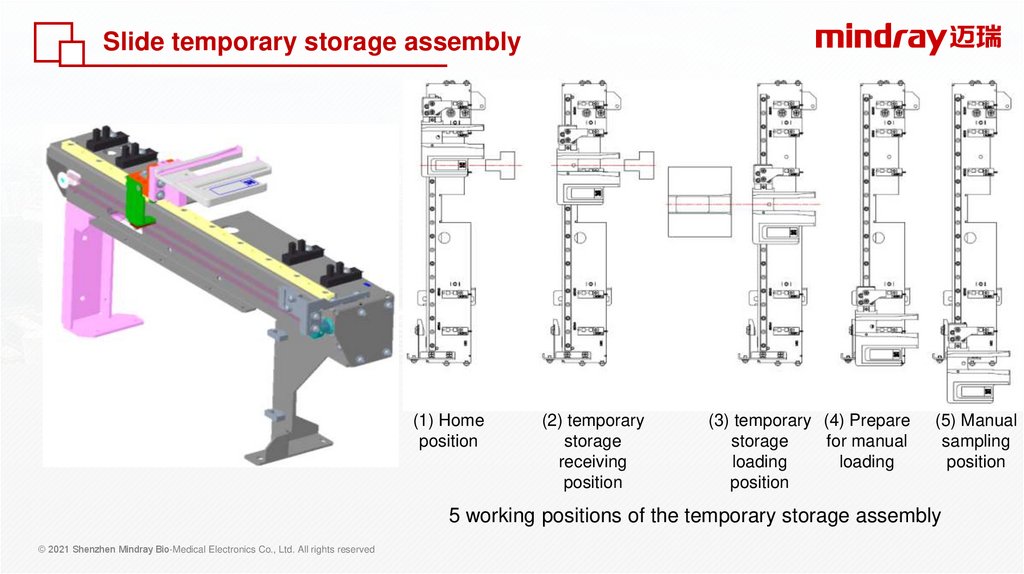

Slide temporary storage assembly
(1) Home
position
(2) temporary
storage
receiving
position
(3) temporary (4) Prepare
storage
for manual
loading
loading
position
(5) Manual
sampling
position
5 working positions of the temporary storage assembly
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

23.

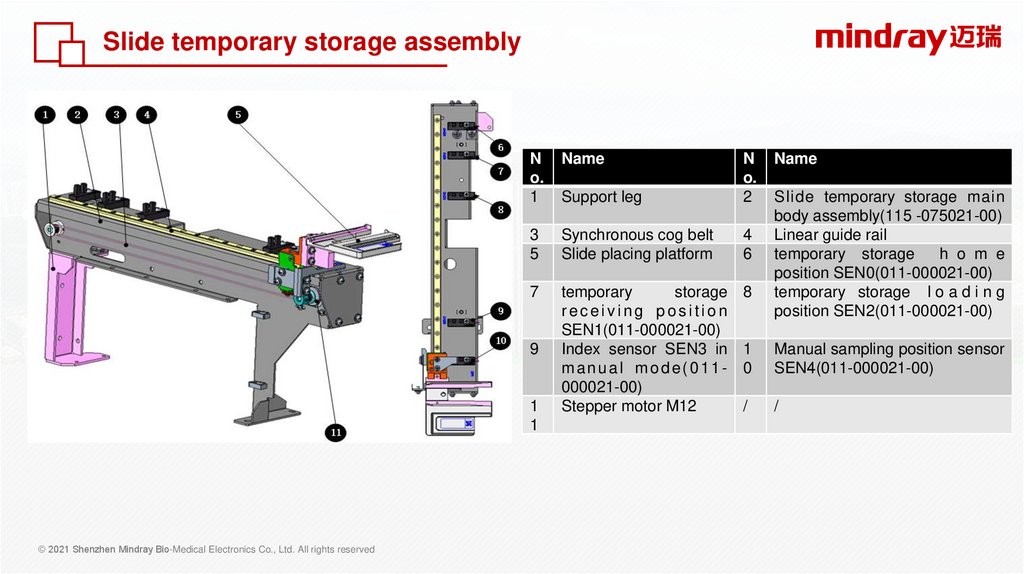

Slide temporary storage assembly
N
o.
1
Name
Support leg
N
o.
2
3
5
Synchronous cog belt
Slide placing platform
4
6
7
temporary
storage
receiving position
SEN1(011-000021-00)
Index sensor SEN3 in
manual mode(011000021-00)
Stepper motor M12
8
9
1
1
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
Name
Slide temporary storage main
body assembly(115 -075021-00)
Linear guide rail
temporary storage
h o m e
position SEN0(011-000021-00)
temporary storage l o a d i n g
position SEN2(011-000021-00)
1
0
Manual sampling position sensor
SEN4(011-000021-00)
/
/

24.

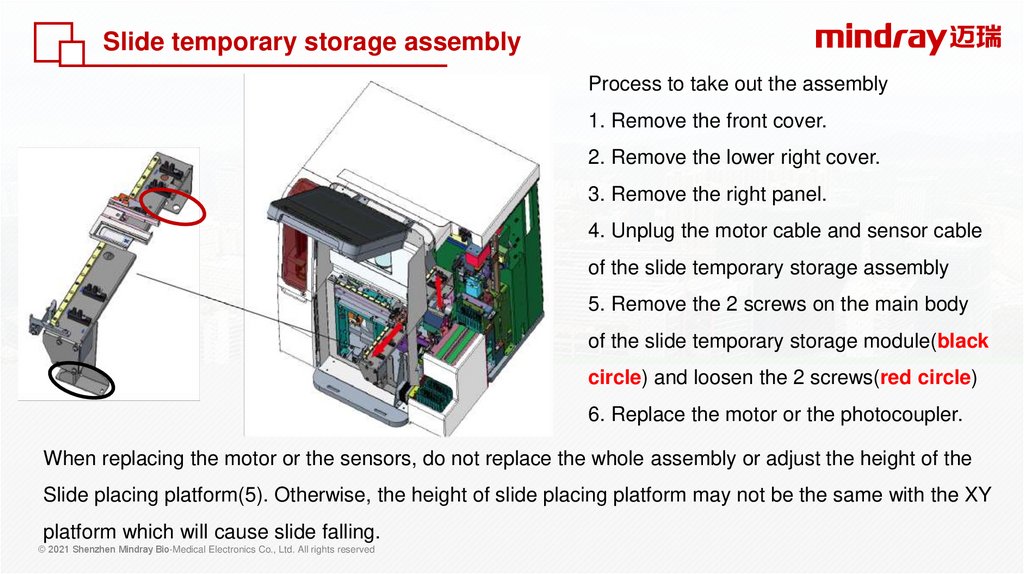

Slide temporary storage assembly
Process to take out the assembly
1. Remove the front cover.
2. Remove the lower right cover.
3. Remove the right panel.
4. Unplug the motor cable and sensor cable
of the slide temporary storage assembly
5. Remove the 2 screws on the main body
of the slide temporary storage module(black
circle) and loosen the 2 screws(red circle)
6. Replace the motor or the photocoupler.
When replacing the motor or the sensors, do not replace the whole assembly or adjust the height of the
Slide placing platform(5). Otherwise, the height of slide placing platform may not be the same with the XY
platform which will cause slide falling.
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

25.

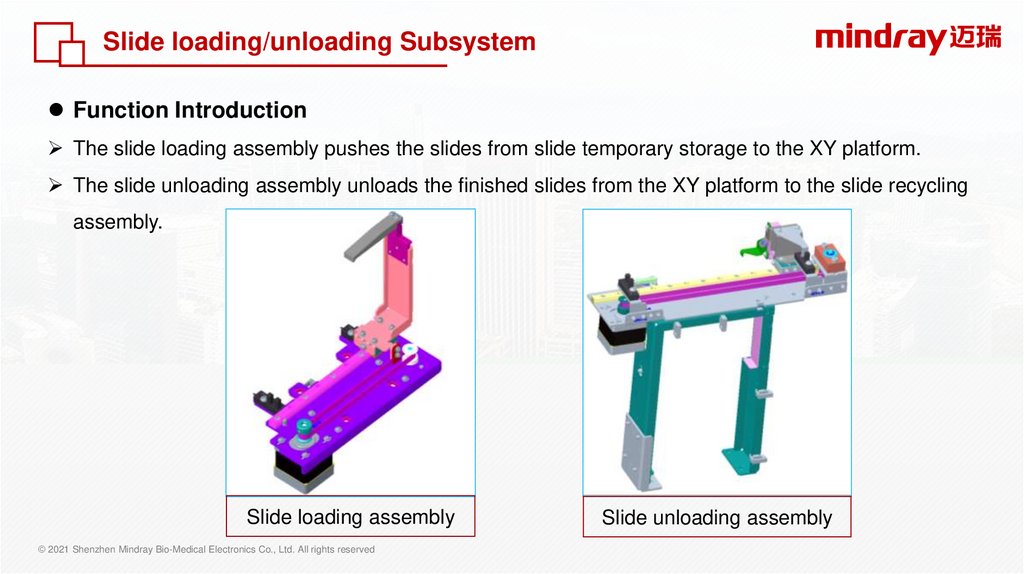

Slide loading/unloading Subsystem
Function Introduction
The slide loading assembly pushes the slides from slide temporary storage to the XY platform.
The slide unloading assembly unloads the finished slides from the XY platform to the slide recycling
assembly.
Slide loading assembly
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
Slide unloading assembly

26.

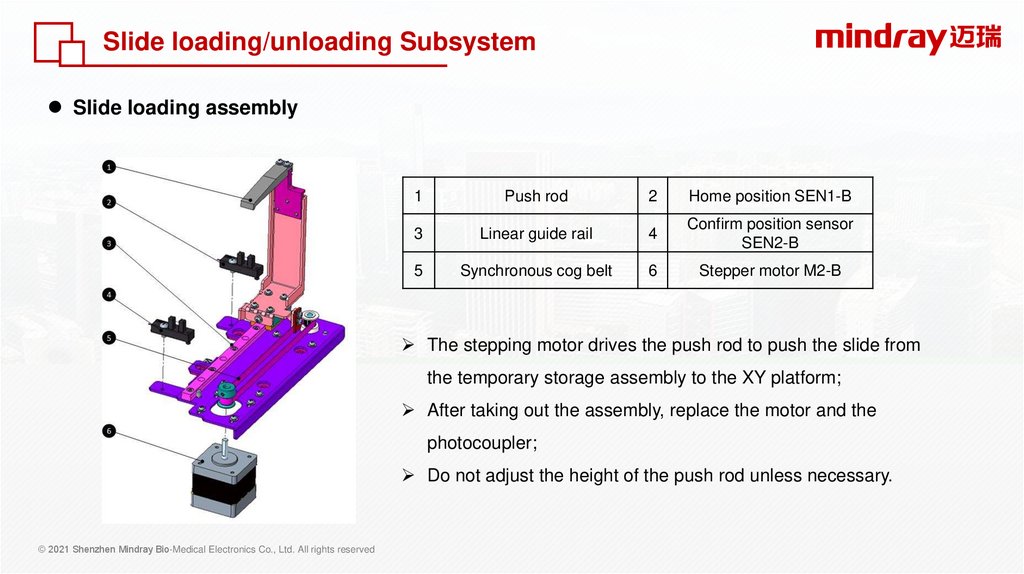

Slide loading/unloading Subsystem
Slide loading assembly
1
Push rod
2
Home position SEN1-B
3
Linear guide rail
4
Confirm position sensor
SEN2-B
5
Synchronous cog belt
6
Stepper motor M2-B
The stepping motor drives the push rod to push the slide from
the temporary storage assembly to the XY platform;
After taking out the assembly, replace the motor and the
photocoupler;
Do not adjust the height of the push rod unless necessary.
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

27.

Slide loading/unloading Subsystem

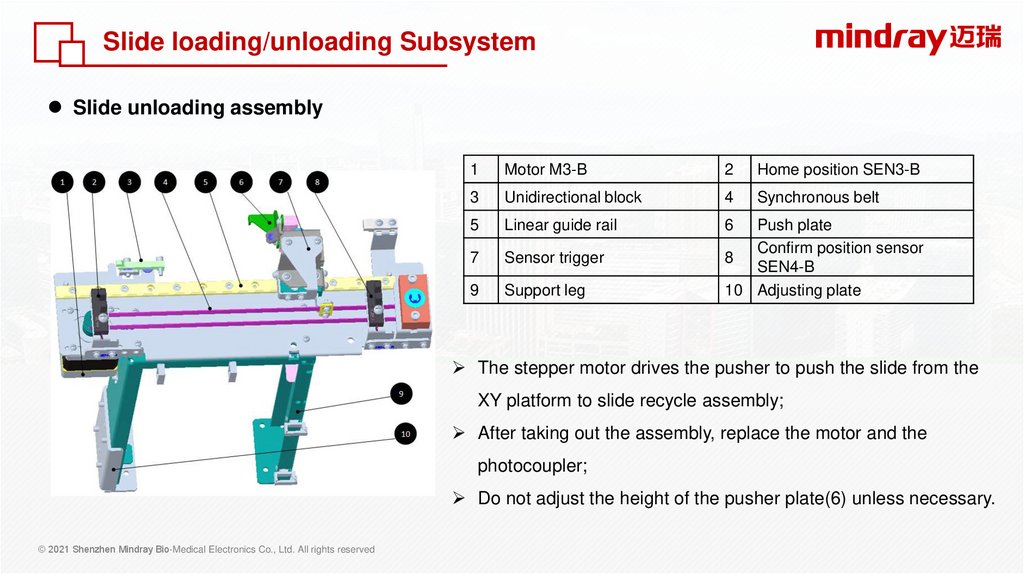

Slide unloading assembly
1
Motor M3-B
2
Home position SEN3-B
3
Unidirectional block
4
Synchronous belt
5
Linear guide rail
6
7
Sensor trigger
9
Support leg
Push plate
Confirm position sensor
8
SEN4-B
10 Adjusting plate
The stepper motor drives the pusher to push the slide from the
XY platform to slide recycle assembly;
After taking out the assembly, replace the motor and the
photocoupler;
Do not adjust the height of the pusher plate(6) unless necessary.
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

28.

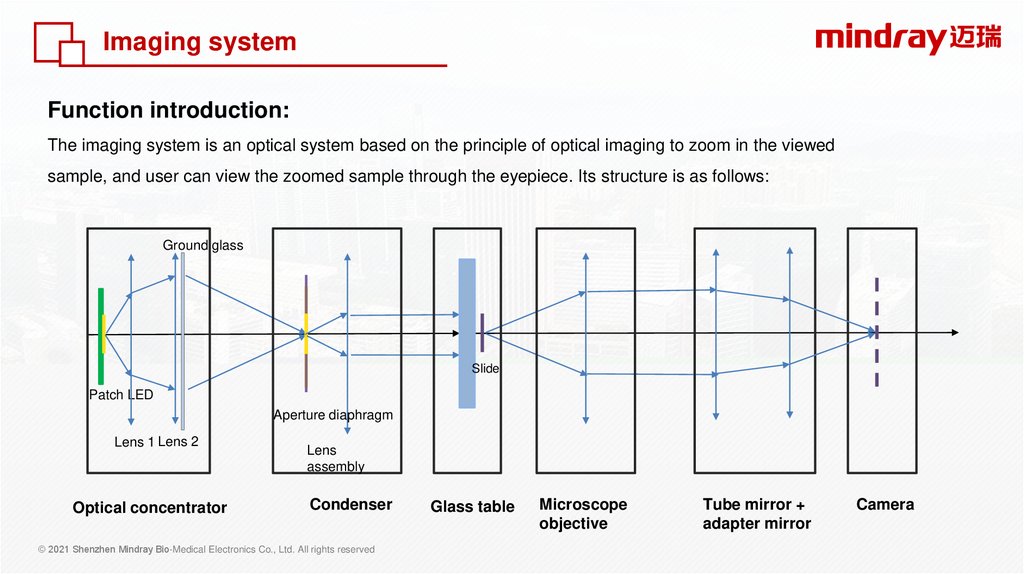

Imaging system
Function introduction:
The imaging system is an optical system based on the principle of optical imaging to zoom in the viewed
sample, and user can view the zoomed sample through the eyepiece. Its structure is as follows:
Ground glass
Slide
Patch LED
Aperture diaphragm
Lens 1 Lens 2
Optical concentrator
Lens
assembly
Condenser
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
Glass table
Microscope
objective
Tube mirror +
adapter mirror
Camera

29.

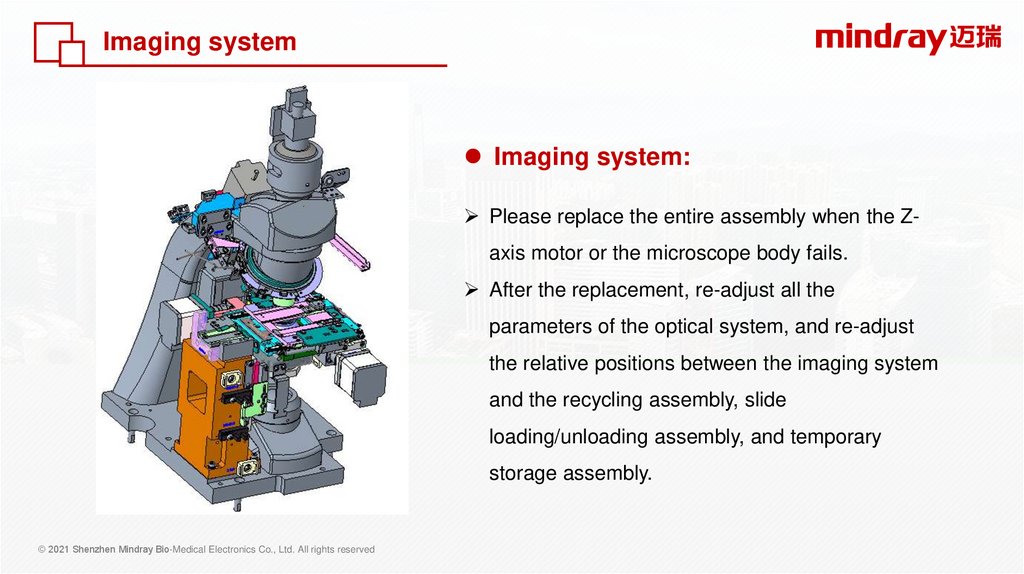

Imaging system
Imaging system:
Please replace the entire assembly when the Z-
axis motor or the microscope body fails.
After the replacement, re-adjust all the
parameters of the optical system, and re-adjust
the relative positions between the imaging system
and the recycling assembly, slide
loading/unloading assembly, and temporary
storage assembly.
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

30.

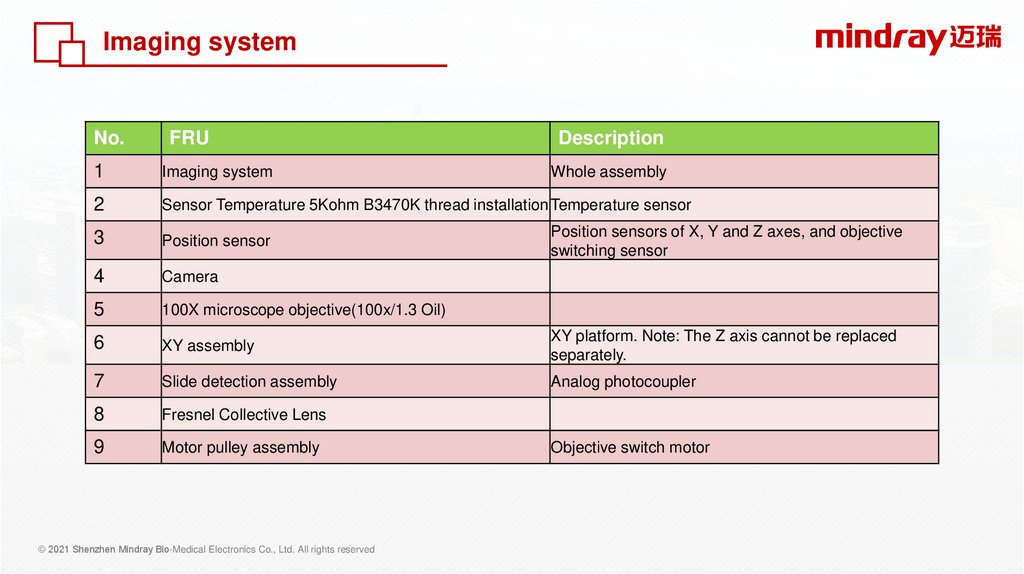

Imaging system
No.
FRU
Description
1
Imaging system
Whole assembly
2
Sensor Temperature 5Kohm B3470K thread installation Temperature sensor
3
Position sensor
4
Camera
5
100X microscope objective(100x/1.3 Oil)
6
XY assembly
XY platform. Note: The Z axis cannot be replaced
separately.
7
Slide detection assembly
Analog photocoupler
8
Fresnel Collective Lens
9
Motor pulley assembly
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
Position sensors of X, Y and Z axes, and objective
switching sensor
Objective switch motor

31.

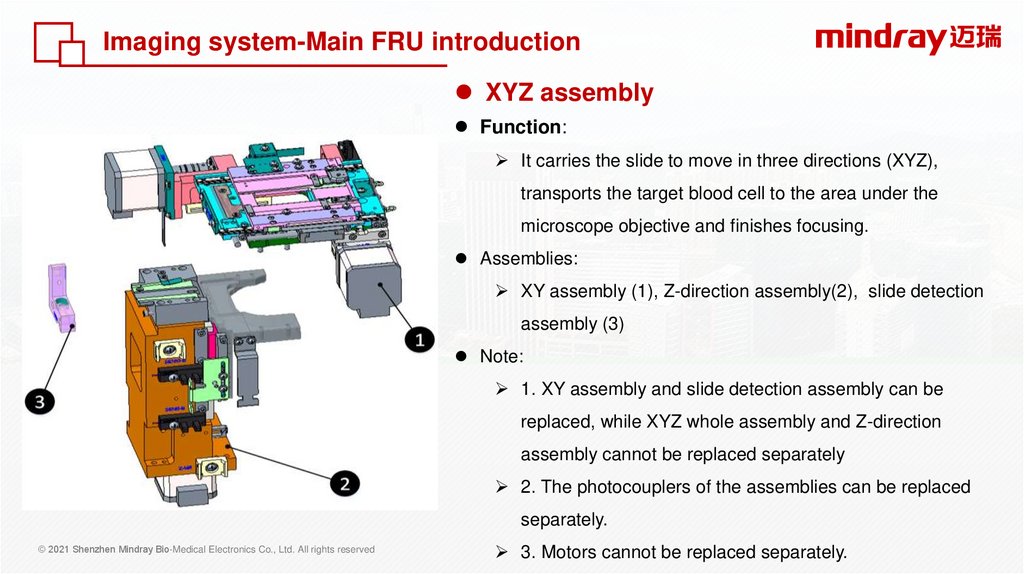

Imaging system-Main FRU introduction
XYZ assembly
Function:
It carries the slide to move in three directions (XYZ),
transports the target blood cell to the area under the
microscope objective and finishes focusing.
Assemblies:
XY assembly (1), Z-direction assembly(2), slide detection
assembly (3)
Note:
1. XY assembly and slide detection assembly can be
replaced, while XYZ whole assembly and Z-direction
assembly cannot be replaced separately
2. The photocouplers of the assemblies can be replaced
separately.
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
3. Motors cannot be replaced separately.

32.

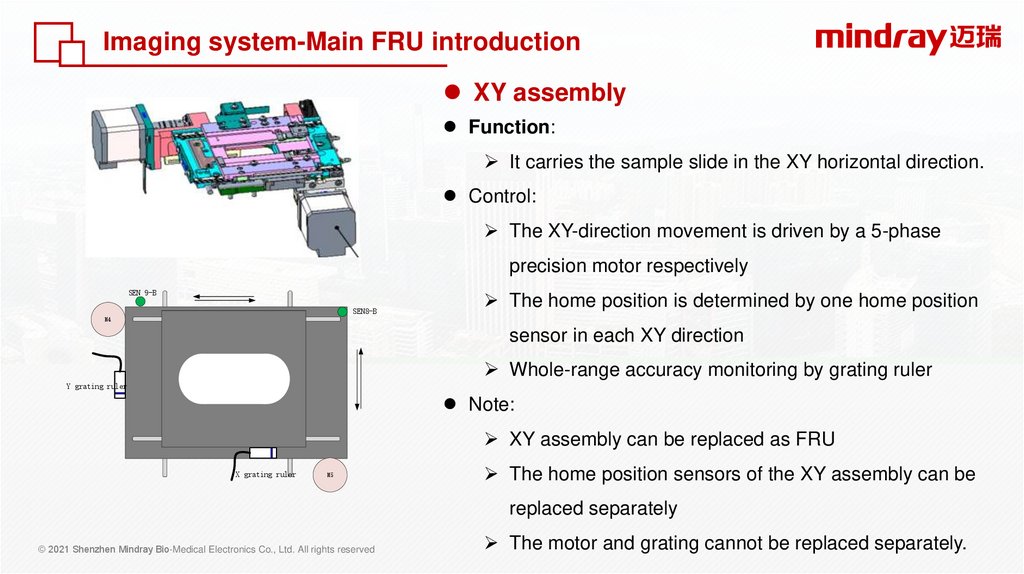

Imaging system-Main FRU introduction
XY assembly
Function:
It carries the sample slide in the XY horizontal direction.
Control:
The XY-direction movement is driven by a 5-phase
precision motor respectively
SEN 9-B
SEN8-B
The home position is determined by one home position
M4
sensor in each XY direction
Whole-range accuracy monitoring by grating ruler
Y grating ruler
Note:
XY assembly can be replaced as FRU
X grating ruler
M5
The home position sensors of the XY assembly can be
replaced separately
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
The motor and grating cannot be replaced separately.

33.

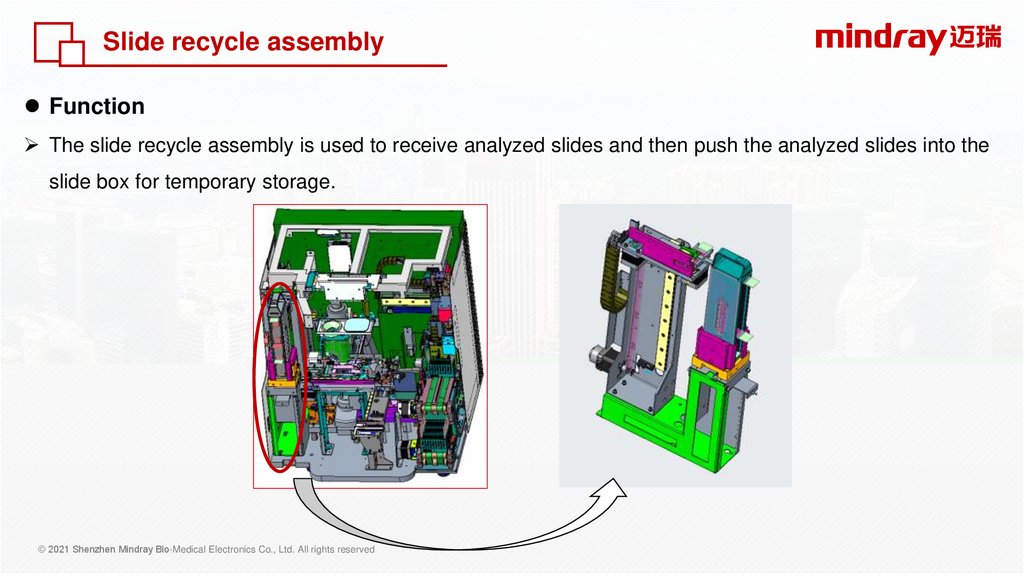

Slide recycle assembly
Function
The slide recycle assembly is used to receive analyzed slides and then push the analyzed slides into the
slide box for temporary storage.
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

34.

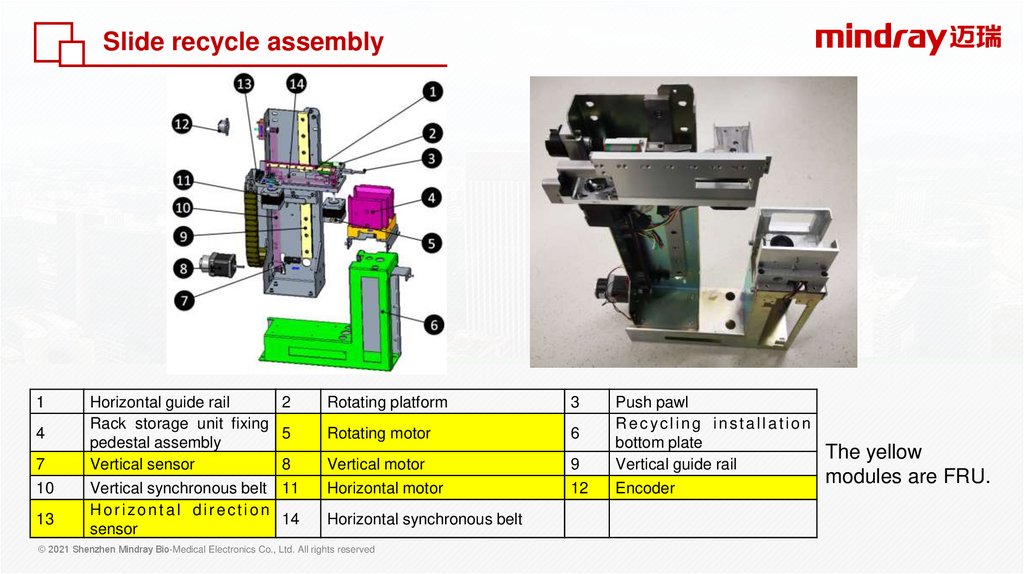

Slide recycle assembly
1
4
7
10
13
Horizontal guide rail
2
Rack storage unit fixing
5
pedestal assembly
Vertical sensor
8
Rotating platform
3
Rotating motor
6
Vertical motor
9
Push pawl
Recycling installation
bottom plate
Vertical guide rail
Vertical synchronous belt 11
Horizontal direction
14
sensor
Horizontal motor
12
Encoder
Horizontal synchronous belt
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
The yellow
modules are FRU.

35.

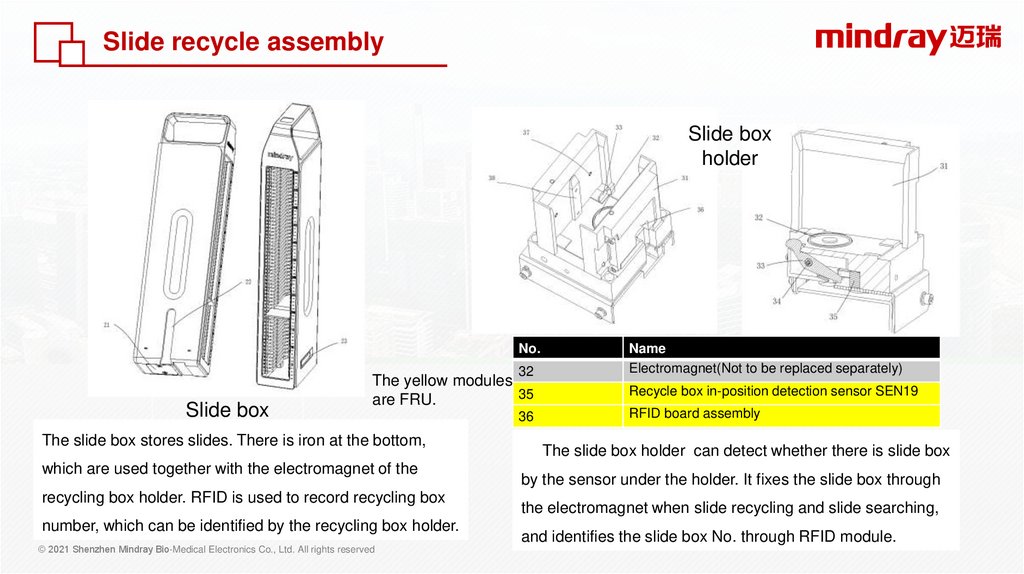

Slide recycle assembly
Slide box
holder
No.
32
Slide box
The yellow modules
35
are FRU.
The slide box stores slides. There is iron at the bottom,
which are used together with the electromagnet of the
recycling box holder. RFID is used to record recycling box
number, which can be identified by the recycling box holder.
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
36
Name
Electromagnet(Not to be replaced separately)
Recycle box in-position detection sensor SEN19
RFID board assembly
The slide box holder can detect whether there is slide box
by the sensor under the holder. It fixes the slide box through
the electromagnet when slide recycling and slide searching,
and identifies the slide box No. through RFID module.

36.

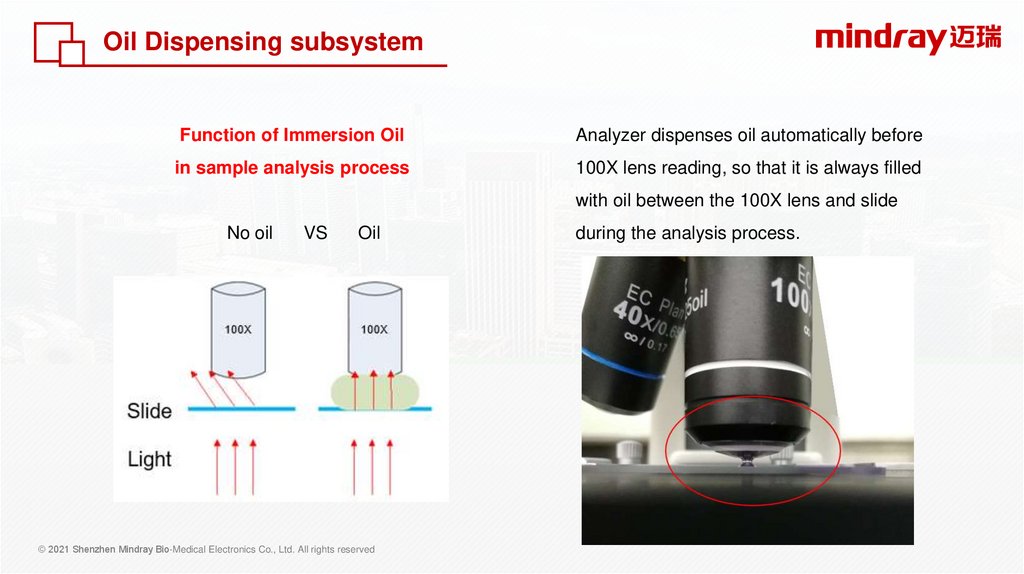

Oil Dispensing subsystem
Function of Immersion Oil
Analyzer dispenses oil automatically before
in sample analysis process
100X lens reading, so that it is always filled
with oil between the 100X lens and slide
No oil
VS
Oil
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
during the analysis process.

37.

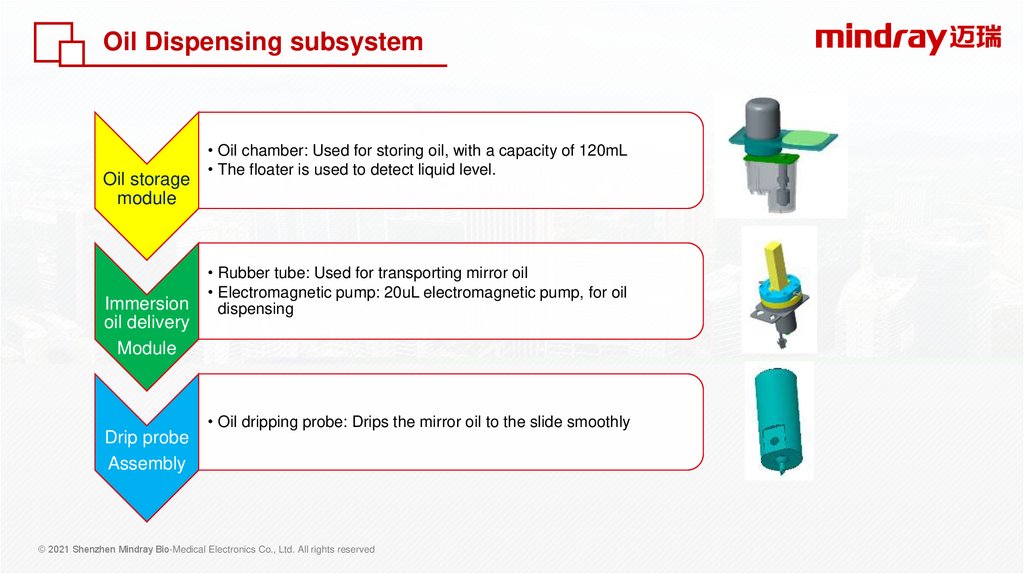

Oil Dispensing subsystem
Oil storage
module
Immersion
oil delivery
Module
• Oil chamber: Used for storing oil, with a capacity of 120mL
• The floater is used to detect liquid level.
• Rubber tube: Used for transporting mirror oil
• Electromagnetic pump: 20uL electromagnetic pump, for oil
dispensing
• Oil dripping probe: Drips the mirror oil to the slide smoothly
Drip probe
Assembly
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved

38.

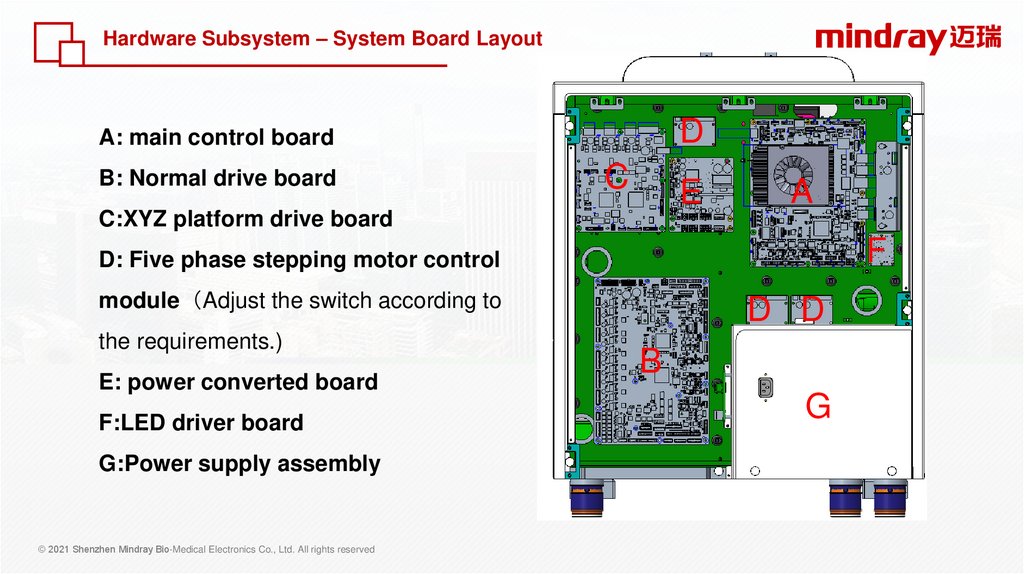

Hardware Subsystem – System Board Layout
D
A: main control board
B: Normal drive board
C
E
C:XYZ platform drive board
A
F
D: Five phase stepping motor control
module Adjust the switch according to
the requirements.)
E: power converted board
F:LED driver board
G:Power supply assembly
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
D D
B
G

39.

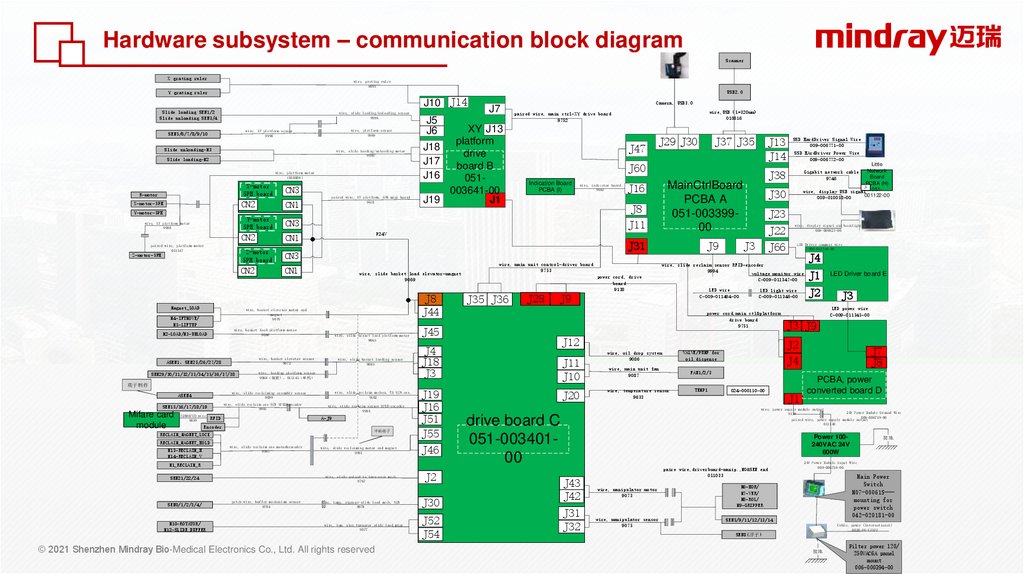

Hardware subsystem – communication block diagram
Scanner
X grating ruler
wire, grating ruler
9095
USB2.0
Y grating ruler
J10 J14
Slide loading SEN1/2
Slide unloading SEN3/4
wire, slide loading/unloading sensor
9986
wire, platform sensor
9989
wire, XY platform sensor
9990
SEN5/6/7/8/9/10
Slide unloading-M3
wire, slide loading/unloading motor
9985
Slide loading-M2
wire, platform motor
010008
R-motor
X-motor-5PH
X-motor
5PH board
CN3
CN2
CN1
Y-motor
5PH board
CN3
CN2
CN1
Z-motor
5PH board
CN3
CN2
CN1
paired wire, XY platform, 5PH mini board
9631
J5
J6
J18
J17
J16
J19
J7
XY J13
platform
drive
board B
051003641-00
J1
Camera, USB3.0
J47
paired wire, platform motor
011147
Z-motor-5PH
Magnet_LOAD
M2-LOAD/M3-UNLOAD
wire, slide basket load elevator-magnet
9069
J8
J44
Indication Board
PCBA (I)
wire, indicator board
9667
wire, basket load platform motor
9066
ASEN1、SEN25/26/27/28
wire, basket elevator sensor
9072
SEN29/30/31/32/33/34/35/36/37/38
wire, loading platform sensor
9068 级联 011145 单机
J8
J11
MainCtrlBoard
PCBA A
051-00339900
J31
J9
J16
wire, slide basket load platform motor
9065
wire, slide basket loading sensor
9085
wire, main unit control-driver board
9753
power cord, drive
board
9138
J35 J36
J37 J35
Signal Wire
J13 SSD HardDriver
009-006771-00
SSD HArdDriver Power Wire
J14
009-006772-00
J28
J30
J23
J22
J66
J3
LED Driver communi wire
C-009-011344-00
LED light wire
C-009-011346-00
J12
J11
J10
wire, display signal and backlight
009-009923-00
C-009-011347-00
LED wire
C-009-011464-00
power cord,main ctl&platform
drive board
9751
J4
J18
J3
Gigabit network cable
9746
wire, slide reclaim sensor RFID-encoder
9994
voltage monitor wire
J9
J45
Little
Network
Board
PCBA (H)
J1
wire, display USB signal 051001122-00
009-010058-00
J38
P24V
wire, basket elevator motor and
magnet
9070
M4-IFTMOVE/
M5-LIFTUP
J29 J30
J60
Y-motor-5PH
wire, XY platform motor
9988
wire,USB L=320mm
010616
paired wire, main ctrl-XY drive board
9752
wire, oil drop system
9086
VALVE/PUMP for
oil dispense
wire, main unit fan
9087
FAN1/2/3
ASEN4
SEN15/16/17/18/19
Mifare card 3208RFID wire RFID
6659
module
Encoder
wire, slide reclaim ass SEN RFID&encoder
9995
wire, slide reclaim sensor RFID-encoder
9994
A-J9
中转端子
RECLAIM_MAGNET_LOCK
RECLAIM_MAGNET_HOLD
M13-RECLAIM_H
M14-RECLAIM_V
wire, slide reclaim mechan. TR SEN ass.
9102
wire, slide reclaim ass motor&encoder
9993
wire, slide reclaiming motor and magnet
9991
J19
J16
J51
J55
J46
M1_RECLAIM_R
wire, slide unload to turn-over mech.
9767
SEN21/22/24
SEN0/1/2/3/4/
M10-ROTATOR/
M12-SLIDE_BUFFER
patch wire, buffer mechanism sensor
9704
wire, temp. storage-slide load mech. SEN
9078
wire, tem. stor_turnover_slide load mtor
9077
© 2021 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved
J2
J30
J52
J54
J20
wire, temperature sensor
9633
TEMP1
J1
J2
LED Driver board E
J3
LED power wire
C-009-011345-00
J3 J9
J2
J4
端子制作
wire, slide reclaiming assembly sensor
9099
J4
024-000110-00
J1
J7
J8
PCBA, power
converted board D
wire, power supply module output
24V Power Mudule Ground Wire
9139
009-006759-00
paired wire, power supply module output
011148
drive board C
051-00340100
Power 100240VAC 24V
600W
J43
J42
J31
J32
paire wire,driverboard-manip.,MO&SEN end
011033
wire, manipulator motor
9073
M6-HOR/
M7-VER/
M8-ROL/
M9-GRIPPER
wire, manipulator sensor
9075
SEN5/9/11/12/13/14
接地
24V Power Module Input Wire
009-006758-00
Main Power
Switch
M07-00061S--mounting for
power switch
042-020181-00
Cable power (International)
0020-20-12522
SEN8(浮子)
接地
Filter power 120/
250VAC6A panel
mount
006-000394-00

40.

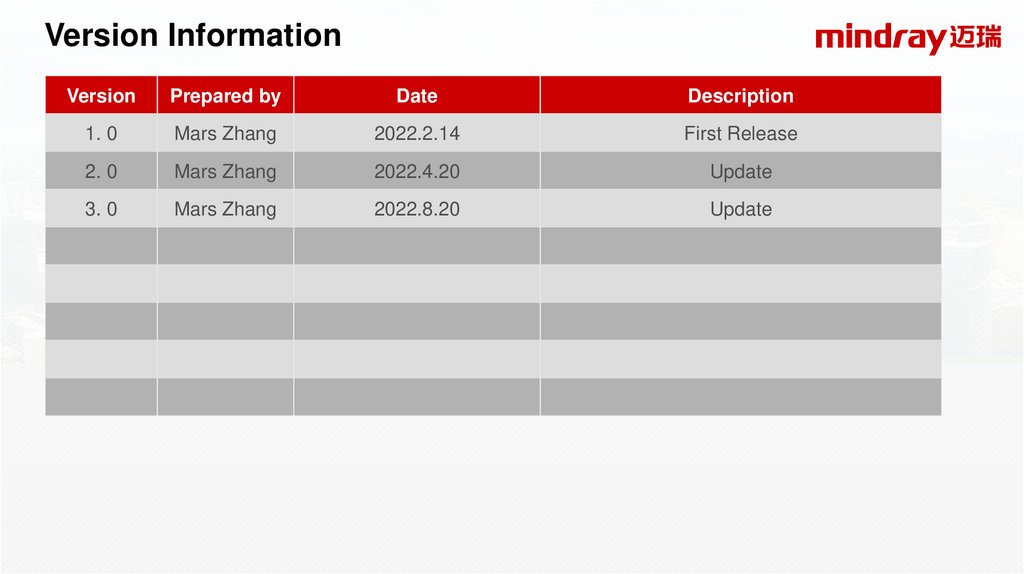

Version Information
Version
Prepared by
Date
Description
1. 0
Mars Zhang
2022.2.14
First Release
2. 0
Mars Zhang
2022.4.20
Update
3. 0
Mars Zhang
2022.8.20
Update

41.

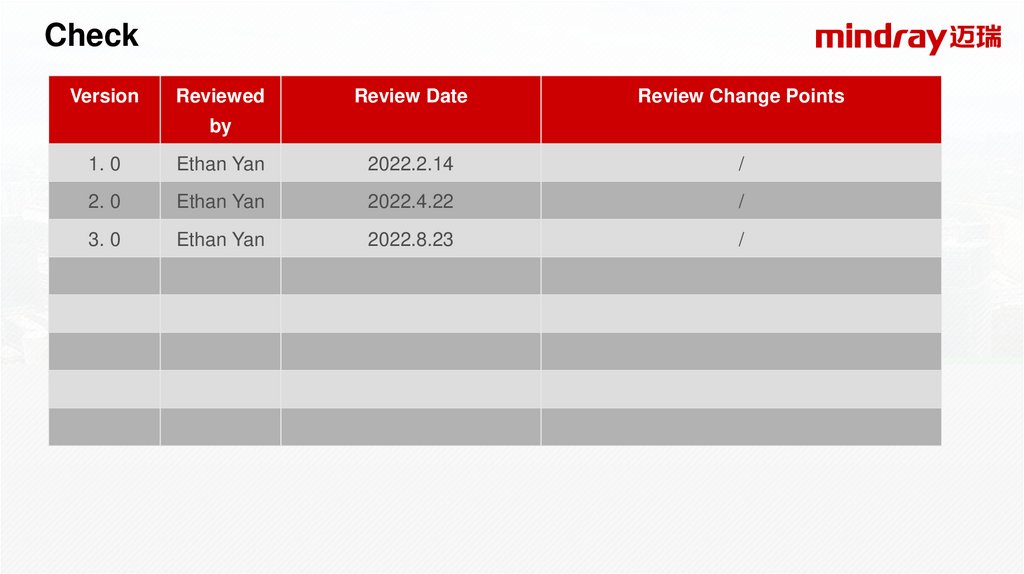

Check
Version
Reviewed
Review Date
Review Change Points
by
1. 0
Ethan Yan
2022.2.14
/
2. 0
Ethan Yan
2022.4.22
/
3. 0
Ethan Yan
2022.8.23
/

42.

Thank you!
