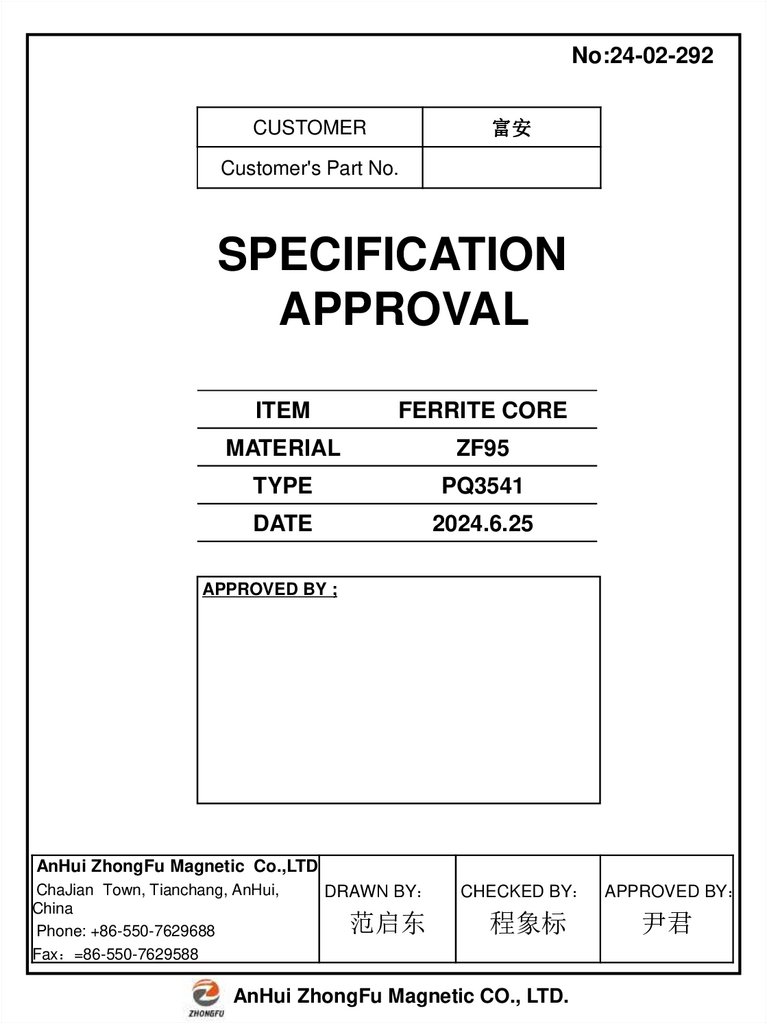

PQ3541 ZF95 富安

1.

No:24-02-292
富安
CUSTOMER
Customer's Part No.
SPECIFICATION
APPROVAL
ITEM
FERRITE CORE
MATERIAL
ZF95
TYPE
PQ3541
DATE
2024.6.25
APPROVED BY ;
AnHui ZhongFu Magnetic Co.,LTD
ChaJian Town, Tianchang, AnHui,
China
Phone: +86-550-7629688
Fax =86-550-7629588
DRAWN BY
范启东
CHECKED BY APPROVED BY
程象标
AnHui ZhongFu Magnetic CO., LTD.
尹君

2.

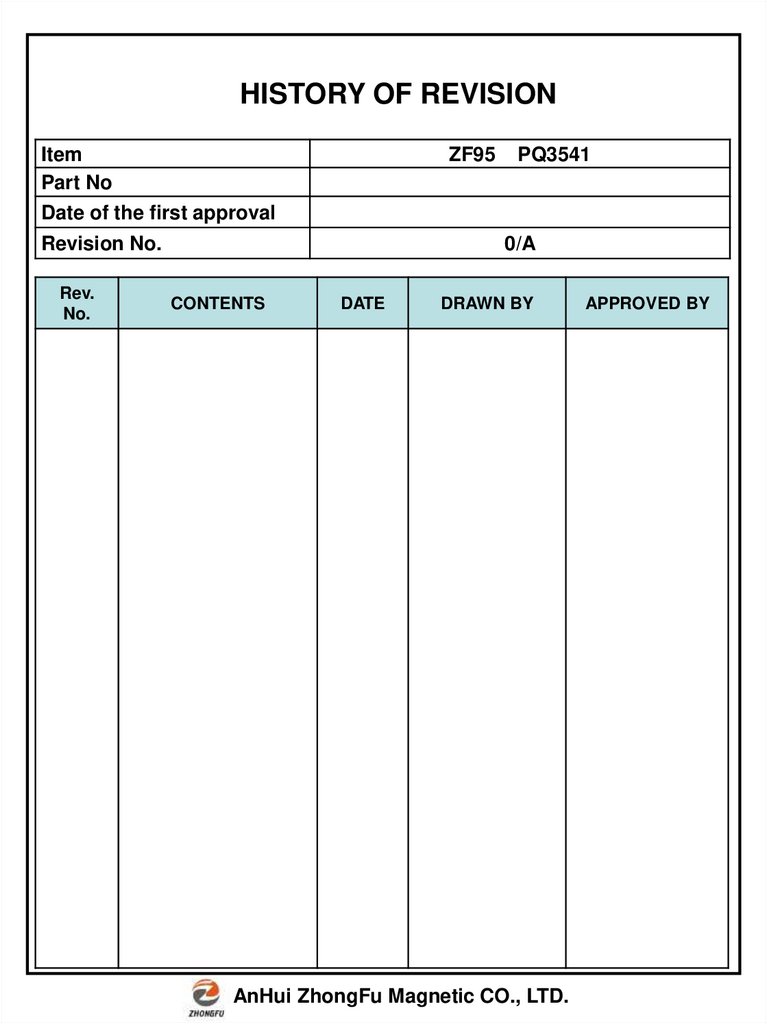

HISTORY OF REVISION
Item
Part No
Date of the first approval
ZF95
Revision No.
Rev.
No.
PQ3541
0/A
CONTENTS
DATE
DRAWN BY
AnHui ZhongFu Magnetic CO., LTD.
APPROVED BY

3.

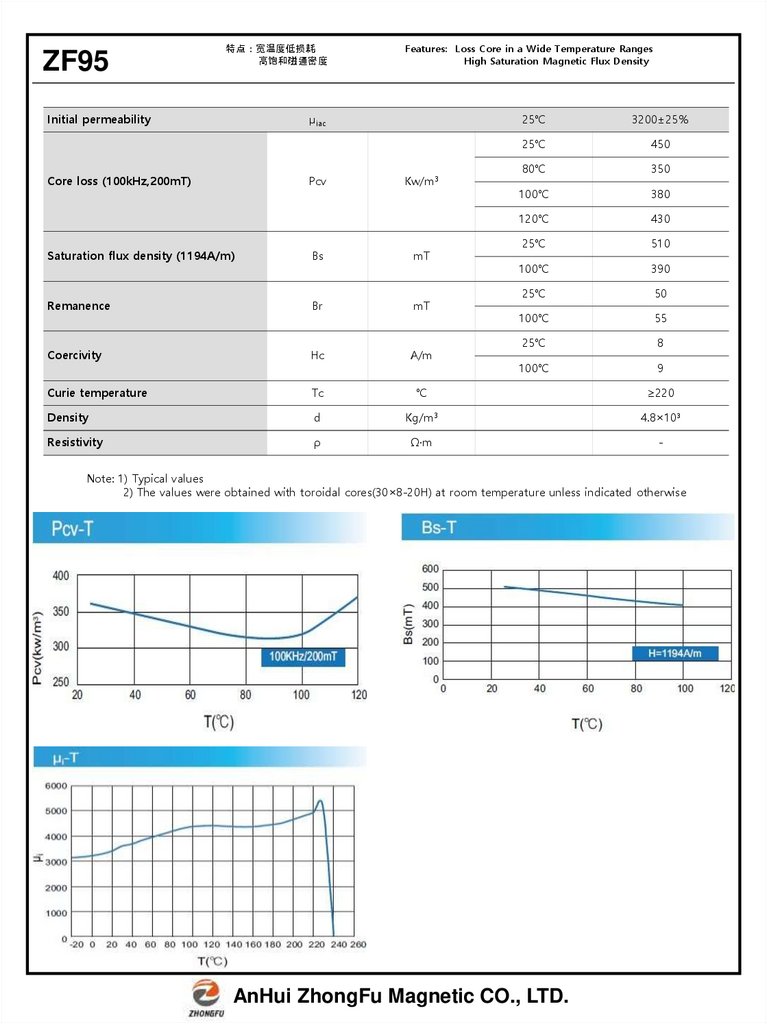

ZF95
特点 宽温度低损耗
高饱和磁通密度
Initial permeability
Features: Loss Core in a Wide Temperature Ranges
High Saturation Magnetic Flux Density
μiac
Core loss (100kHz,200mT)
Pcv
Kw/m3
25℃
3200±25
25℃
450
80℃
350
100℃
380
120℃
430
25℃
510
100℃
390
25℃
50
100℃
55
25℃
8
100℃
9
Saturation flux density (1194A/m)
Bs
mT
Remanence
Br
mT
Coercivity
Hc
A/m
Curie temperature
Tc
℃
≥220
Density
d
Kg/m3
4.8×10³
Resistivity
ρ
Ω·m
-
Note: 1) Typical values
2) The values were obtained with toroidal cores(30×8-20H) at room temperature unless indicated otherwise
AnHui ZhongFu Magnetic CO., LTD.

4.

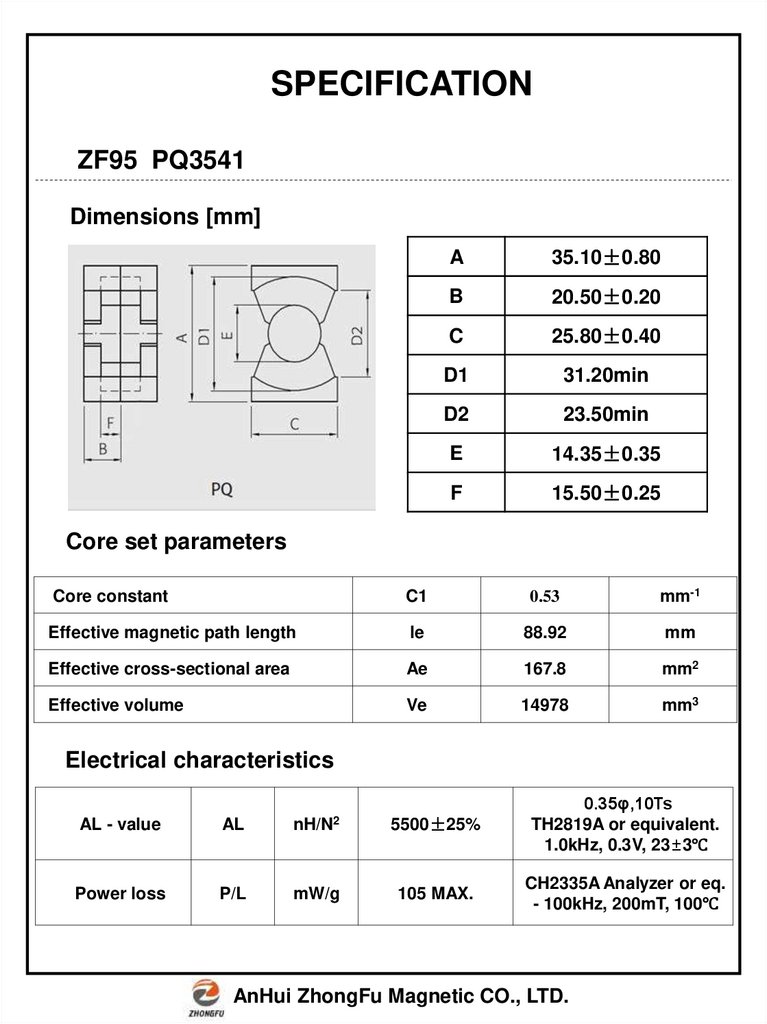

SPECIFICATION
ZF95 PQ3541
Dimensions [mm]
A
35.10±0.80
B
20.50±0.20
C
25.80±0.40
D1
31.20min
D2
23.50min
E
14.35±0.35
F
15.50±0.25
Core set parameters
Core constant
C1
0.53
mm-1
Effective magnetic path length
le
88.92
mm
Effective cross-sectional area
Ae
167.8
mm2
Effective volume
Ve
14978
mm3
Electrical characteristics
AL - value
AL
nH/N2
5500±25%
0.35φ,10Ts
TH2819A or equivalent.
1.0kHz, 0.3V, 23±3℃
Power loss
P/L
mW/g
105 MAX.
CH2335A Analyzer or eq.
- 100kHz, 200mT, 100℃
AnHui ZhongFu Magnetic CO., LTD.

5.

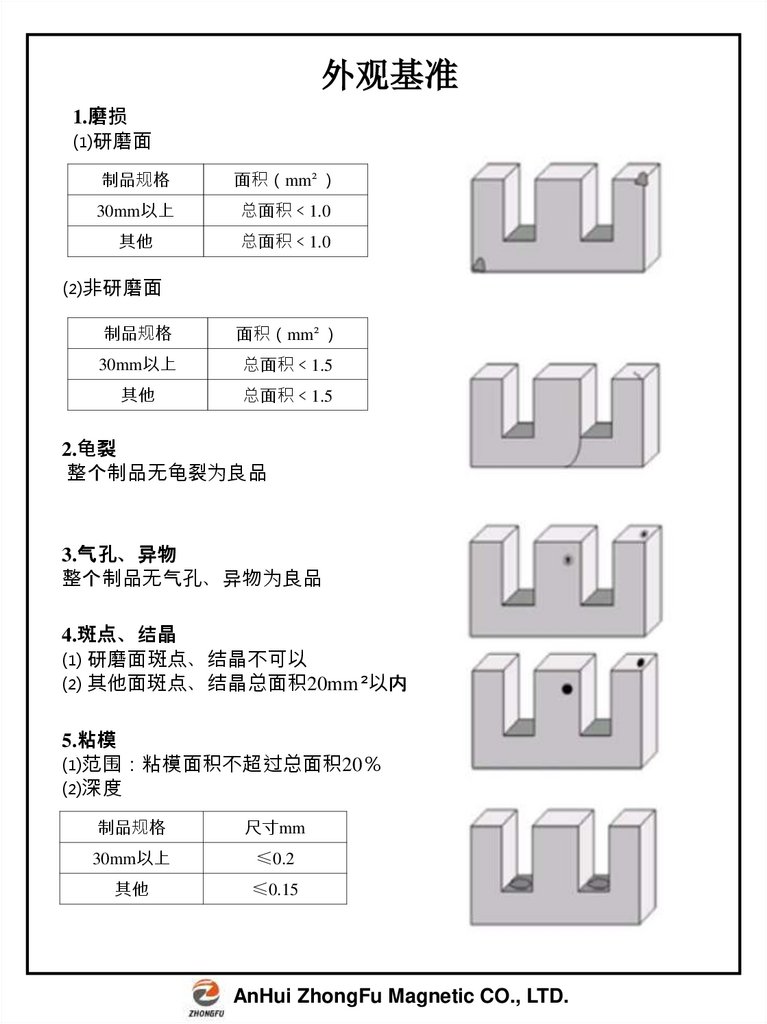

外观基准
1.磨损
⑴研磨面
制品规格
面积 mm²
30mm以上
总面积 1.0
其他
总面积 1.0
⑵非研磨面
制品规格
面积 mm²
30mm以上
总面积 1.5
其他
总面积 1.5
2.龟裂
整个制品无龟裂为良品
3.气孔、异物
整个制品无气孔、异物为良品
4.斑点、结晶
⑴ 研磨面斑点、结晶不可以
⑵ 其他面斑点、结晶总面积20mm ²以内
5.粘模
⑴范围 粘模面积不超过总面积20
⑵深度
制品规格
尺寸mm
30mm以上
≤0.2
其他
≤0.15
