Best Harmonics Analyzer for Energy Audits in India

1. Power & Harmonics Analyzers

Power & Harmonics
Analyzers
from MECO

2. MECO INSTRUMENTS PVT. LTD.

• The leading brand for Test and Measuring Instruments
• Over 60+ years of excellence in product quality and service
• Fully equipped State-of-the-art Manufacturing Facility
• Driven by Customer Focus, Innovation and Technological Excellence
• Over 37 design patents registered
• Products certified by India’s most trusted testing laboratories
• All India network of dealers, distributors and resellers
• OEMs to manufacturers in India, Germany, Italy, UK and USA

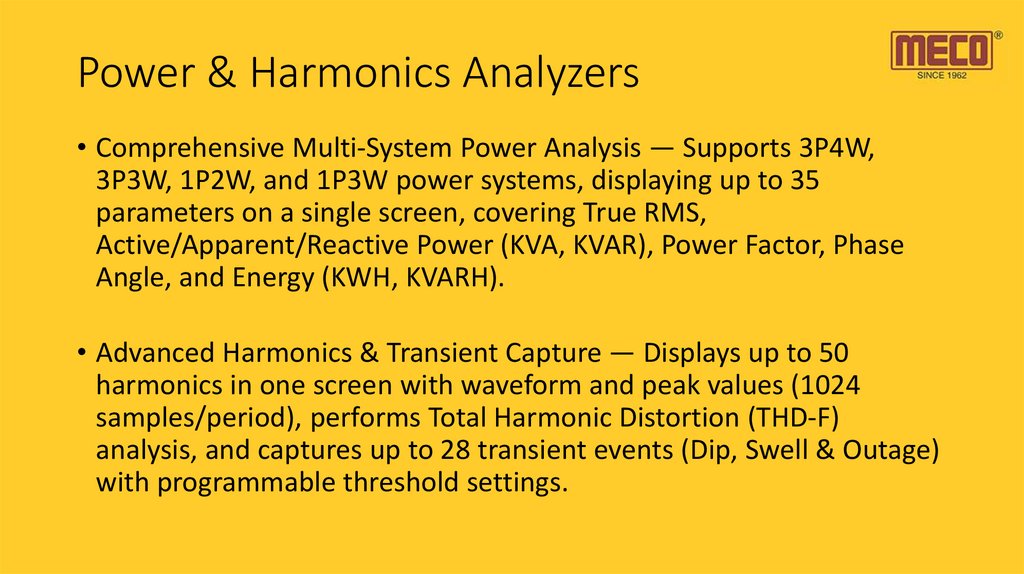

3. Power & Harmonics Analyzers

Power & Harmonics Analyzers
• Comprehensive Multi-System Power Analysis — Supports 3P4W,
3P3W, 1P2W, and 1P3W power systems, displaying up to 35
parameters on a single screen, covering True RMS,
Active/Apparent/Reactive Power (KVA, KVAR), Power Factor, Phase
Angle, and Energy (KWH, KVARH).
• Advanced Harmonics & Transient Capture — Displays up to 50
harmonics in one screen with waveform and peak values (1024
samples/period), performs Total Harmonic Distortion (THD-F)
analysis, and captures up to 28 transient events (Dip, Swell & Outage)
with programmable threshold settings.

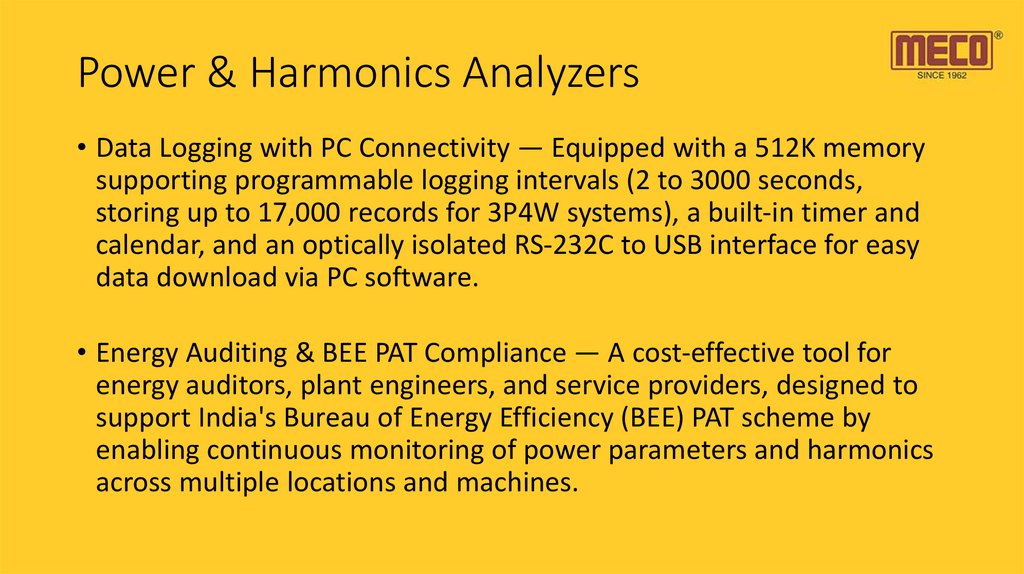

4. Power & Harmonics Analyzers

Power & Harmonics Analyzers
• Data Logging with PC Connectivity — Equipped with a 512K memory
supporting programmable logging intervals (2 to 3000 seconds,
storing up to 17,000 records for 3P4W systems), a built-in timer and
calendar, and an optically isolated RS-232C to USB interface for easy
data download via PC software.
• Energy Auditing & BEE PAT Compliance — A cost-effective tool for
energy auditors, plant engineers, and service providers, designed to
support India's Bureau of Energy Efficiency (BEE) PAT scheme by
enabling continuous monitoring of power parameters and harmonics
across multiple locations and machines.

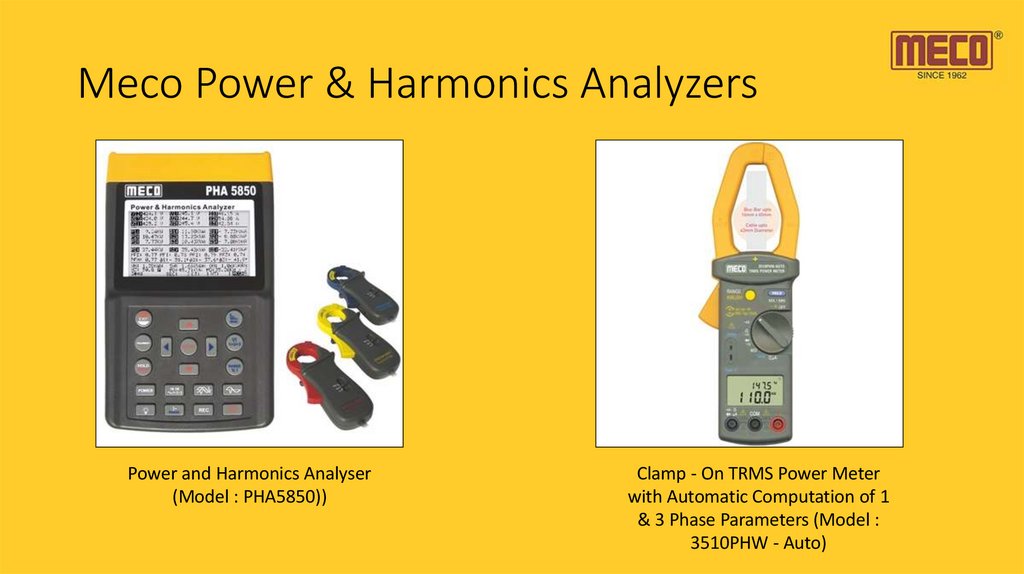

5. Meco Power & Harmonics Analyzers

Meco Power & Harmonics Analyzers
Power and Harmonics Analyser
(Model : PHA5850))
Clamp - On TRMS Power Meter
with Automatic Computation of 1
& 3 Phase Parameters (Model :
3510PHW - Auto)

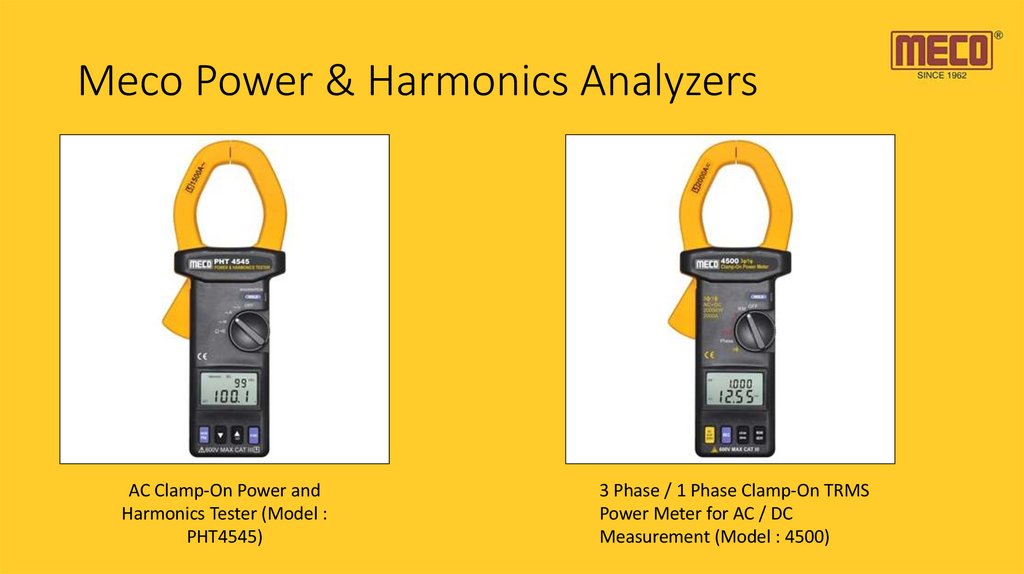

6. Meco Power & Harmonics Analyzers

Meco Power & Harmonics Analyzers
AC Clamp-On Power and
Harmonics Tester (Model :
PHT4545)
3 Phase / 1 Phase Clamp-On TRMS
Power Meter for AC / DC
Measurement (Model : 4500)

7. Thank You

MECO INSTRUMENTS PVT. LTD.
Tel: +91 93233 32435
Email: sales@mecoinst.com
Web: www.mecoinst.com
Order Online: www.meco.in
