Gas water heater business proposal

1.

Gas Water Heater Business Proposal

2.

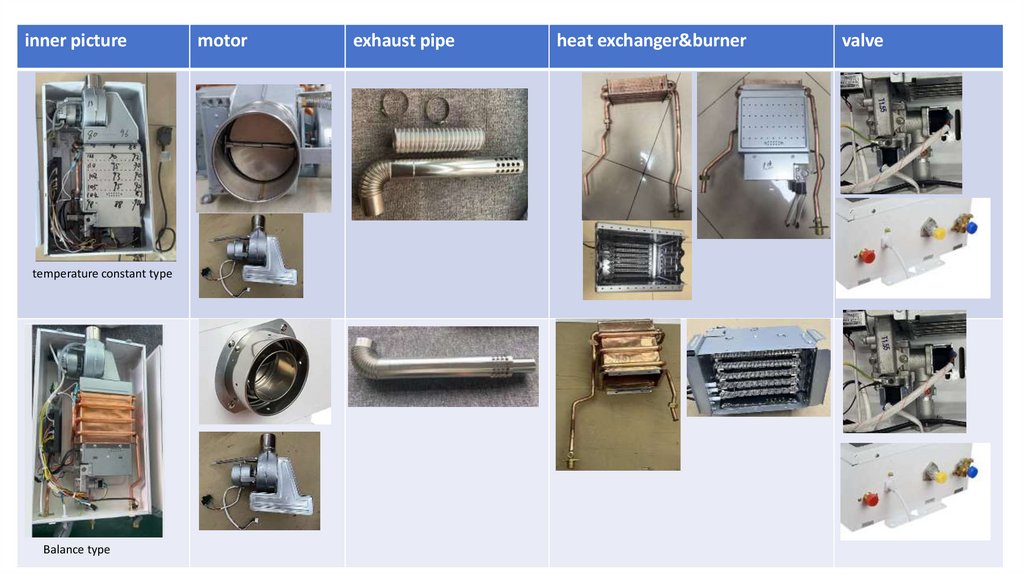

inner picture
temperature constant type
Balance type
motor
exhaust pipe
heat exchanger&burner
valve

3.

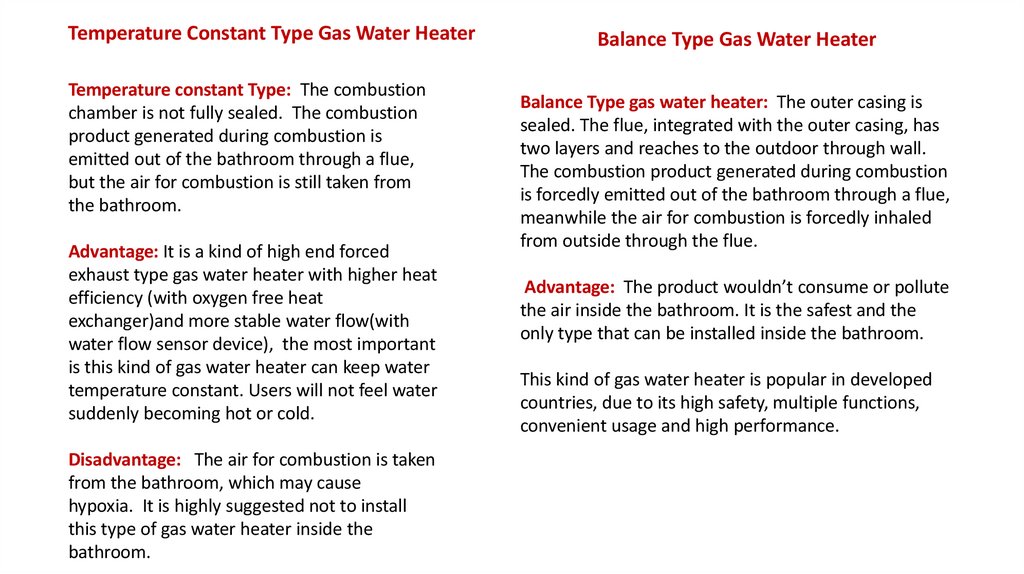

Temperature Constant Type Gas Water Heater
Temperature constant Type: The combustion
chamber is not fully sealed. The combustion
product generated during combustion is
emitted out of the bathroom through a flue,
but the air for combustion is still taken from
the bathroom.
Advantage: It is a kind of high end forced
exhaust type gas water heater with higher heat
efficiency (with oxygen free heat
exchanger)and more stable water flow(with
water flow sensor device), the most important
is this kind of gas water heater can keep water
temperature constant. Users will not feel water
suddenly becoming hot or cold.
Disadvantage: The air for combustion is taken
from the bathroom, which may cause
hypoxia. It is highly suggested not to install
this type of gas water heater inside the
bathroom.
Balance Type Gas Water Heater
Balance Type gas water heater: The outer casing is
sealed. The flue, integrated with the outer casing, has
two layers and reaches to the outdoor through wall.
The combustion product generated during combustion
is forcedly emitted out of the bathroom through a flue,
meanwhile the air for combustion is forcedly inhaled
from outside through the flue.
Advantage: The product wouldn’t consume or pollute
the air inside the bathroom. It is the safest and the
only type that can be installed inside the bathroom.
This kind of gas water heater is popular in developed
countries, due to its high safety, multiple functions,
convenient usage and high performance.

4.

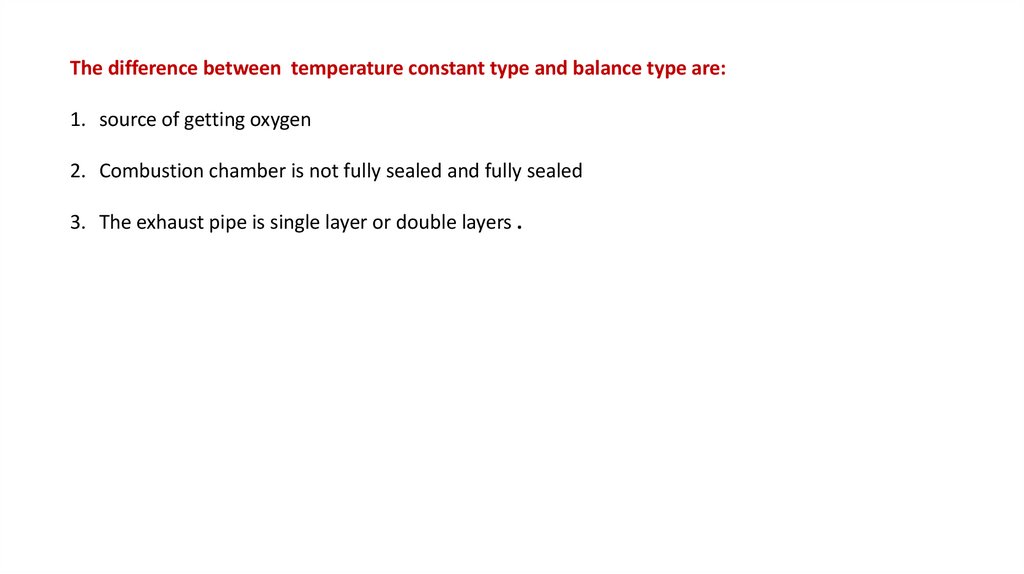

The difference between temperature constant type and balance type are:
1. source of getting oxygen
2. Combustion chamber is not fully sealed and fully sealed
3. The exhaust pipe is single layer or double layers .
